Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> System Diagram

System Diagram

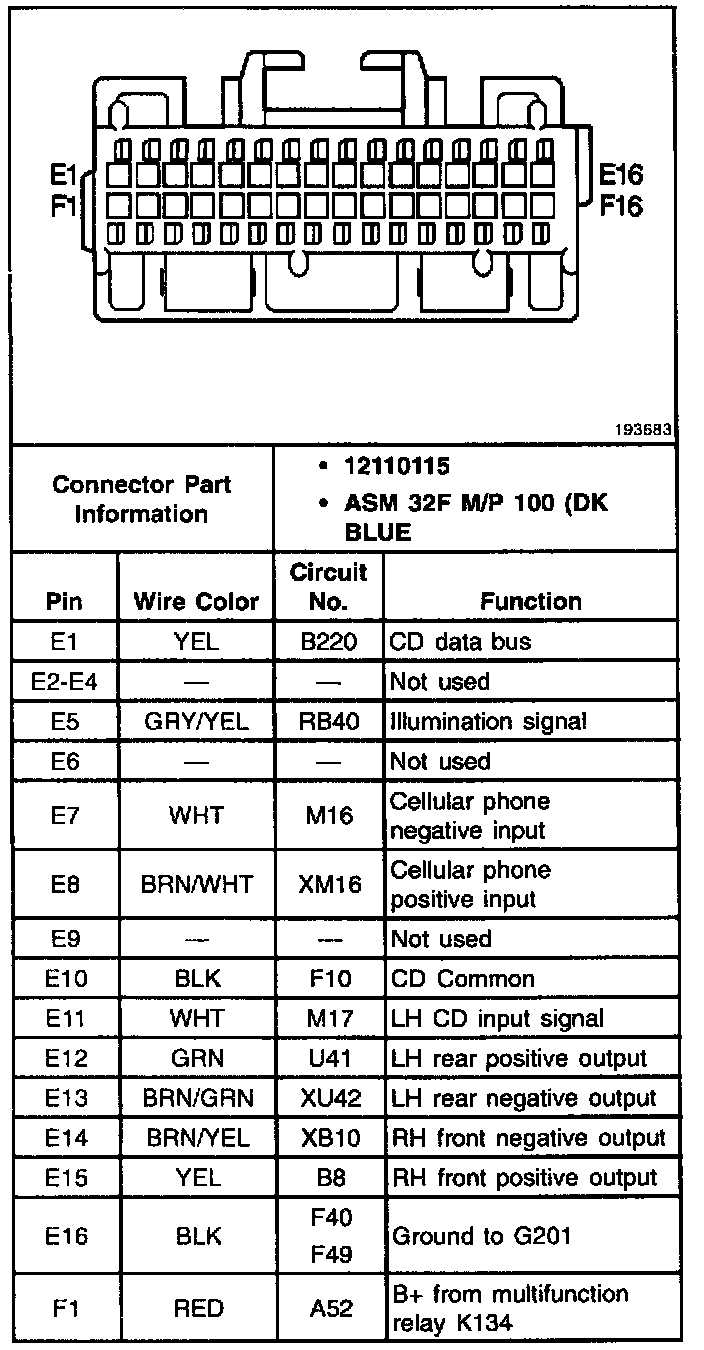

Radio, AM/FM Stereo, Clock, Tape Player And CD Player (Base System) (Part 1 Of 2):

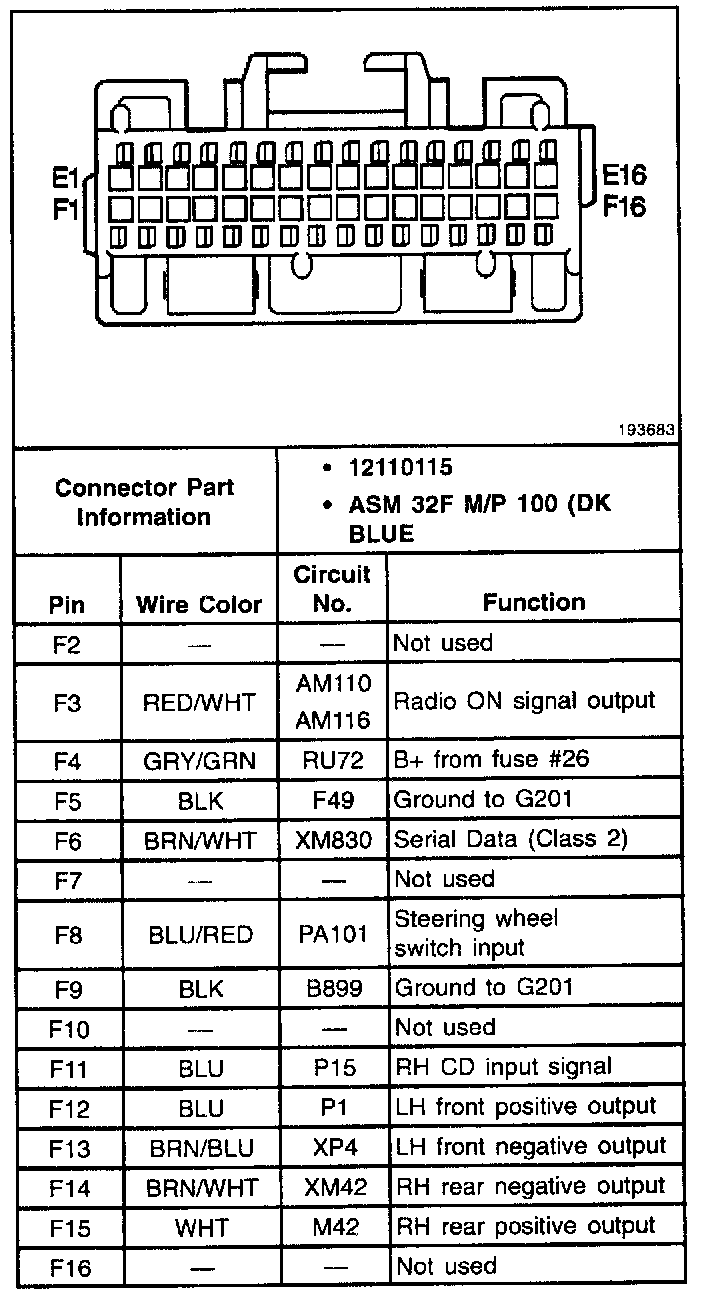

Radio, AM/FM Stereo, Clock, Tape Player And CD Player (Base System) (Part 2 Of 2):

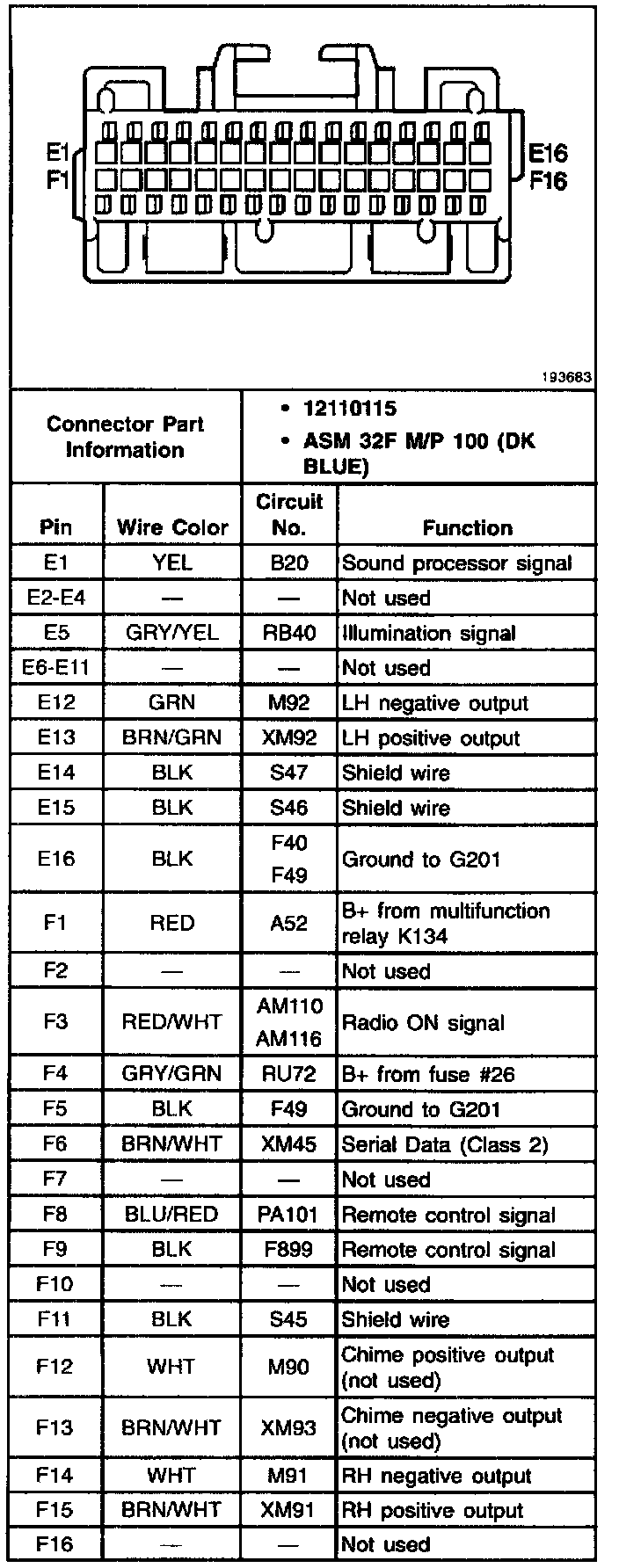

Radio, AM/FM Stereo, Clock, Tape Player And CD Player (Bose System):

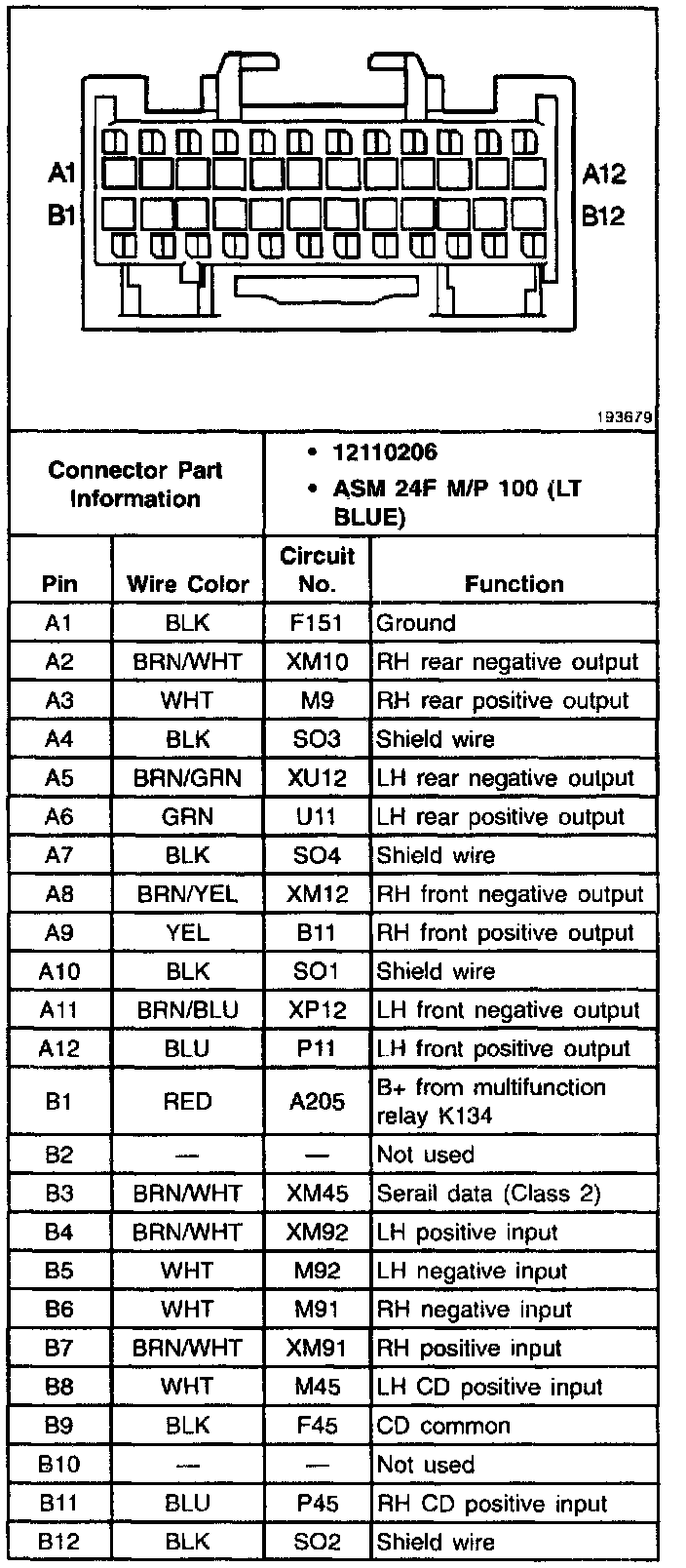

Sound Processor Interface Connector: C1:



Sound Processor Interface Connector: C2:
