Wheel Speed Sensor

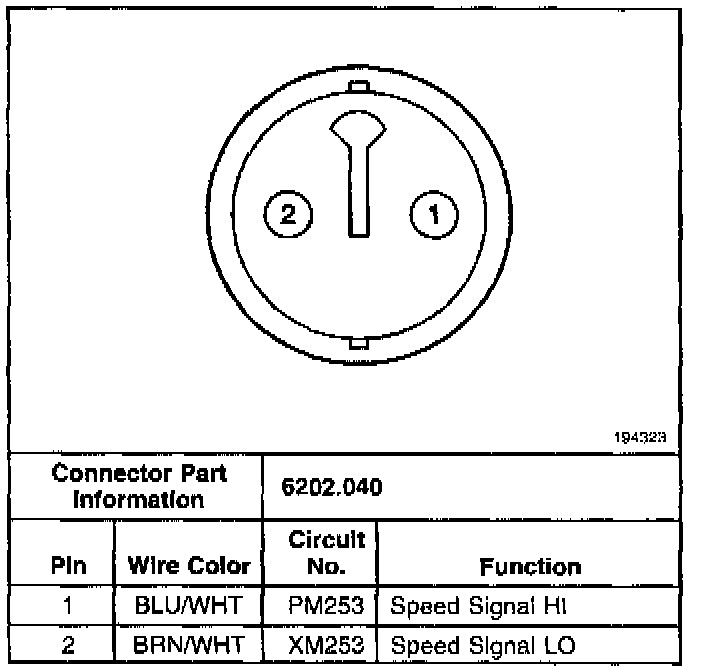

LH Front Wheel Speed Sensor:

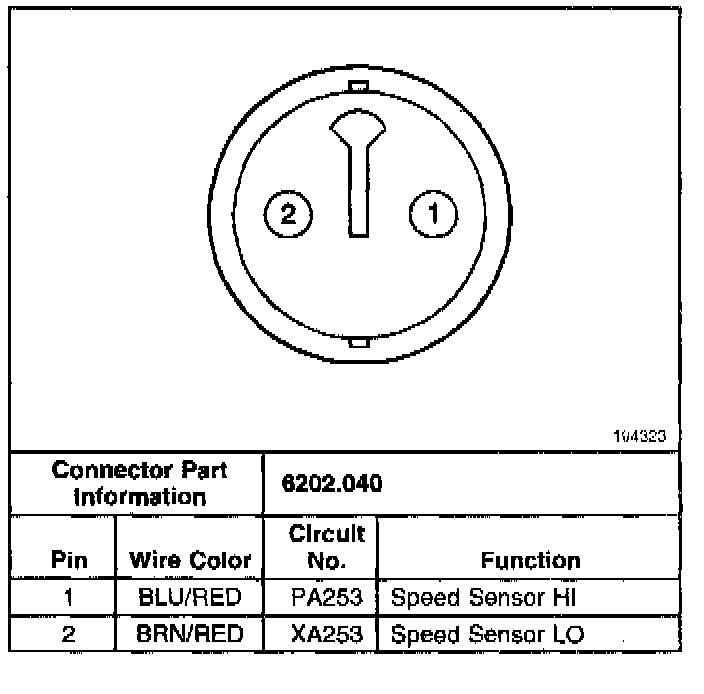

RH Front Wheel Speed Sensor:

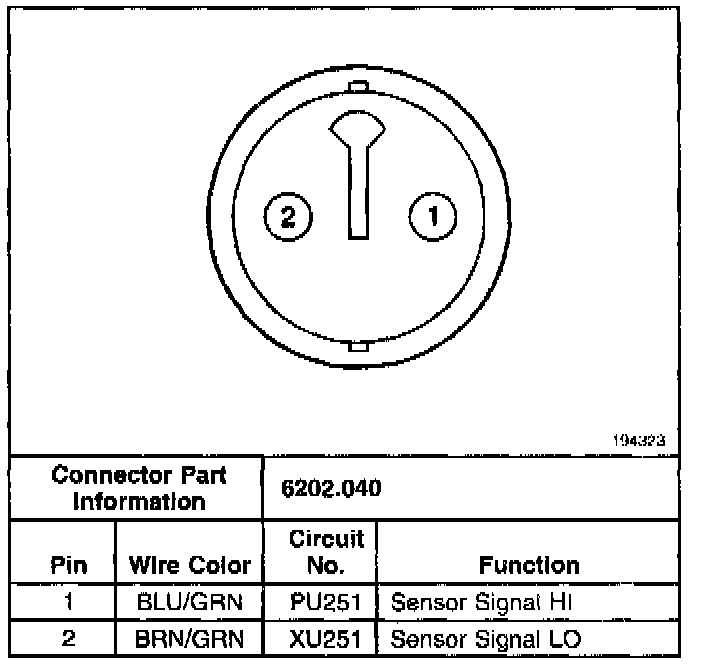

LH Rear Wheel Speed Sensor:

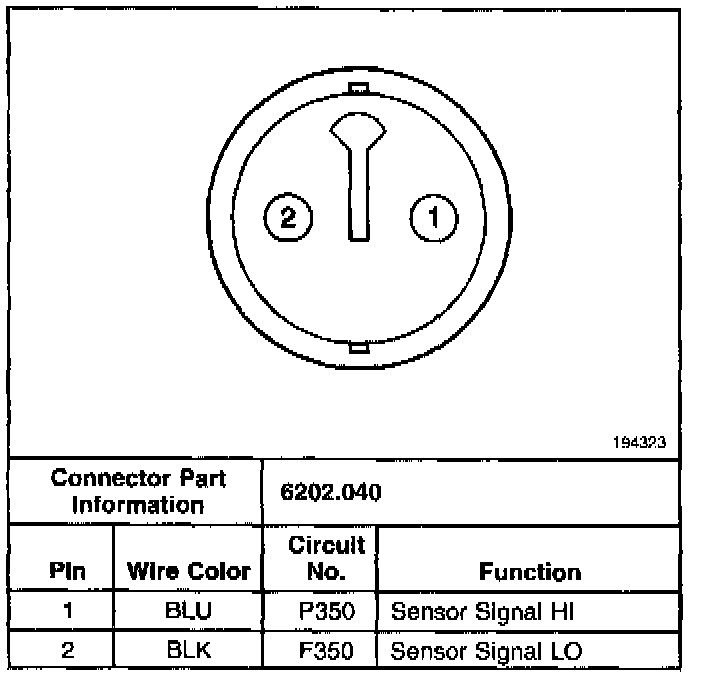

RH Rear Wheel Speed Sensor:
