Outside Rear View Mirror Switch Connector
Outside Rear View Mirror Switch Connector
LH Front Side Door (RH Similar):

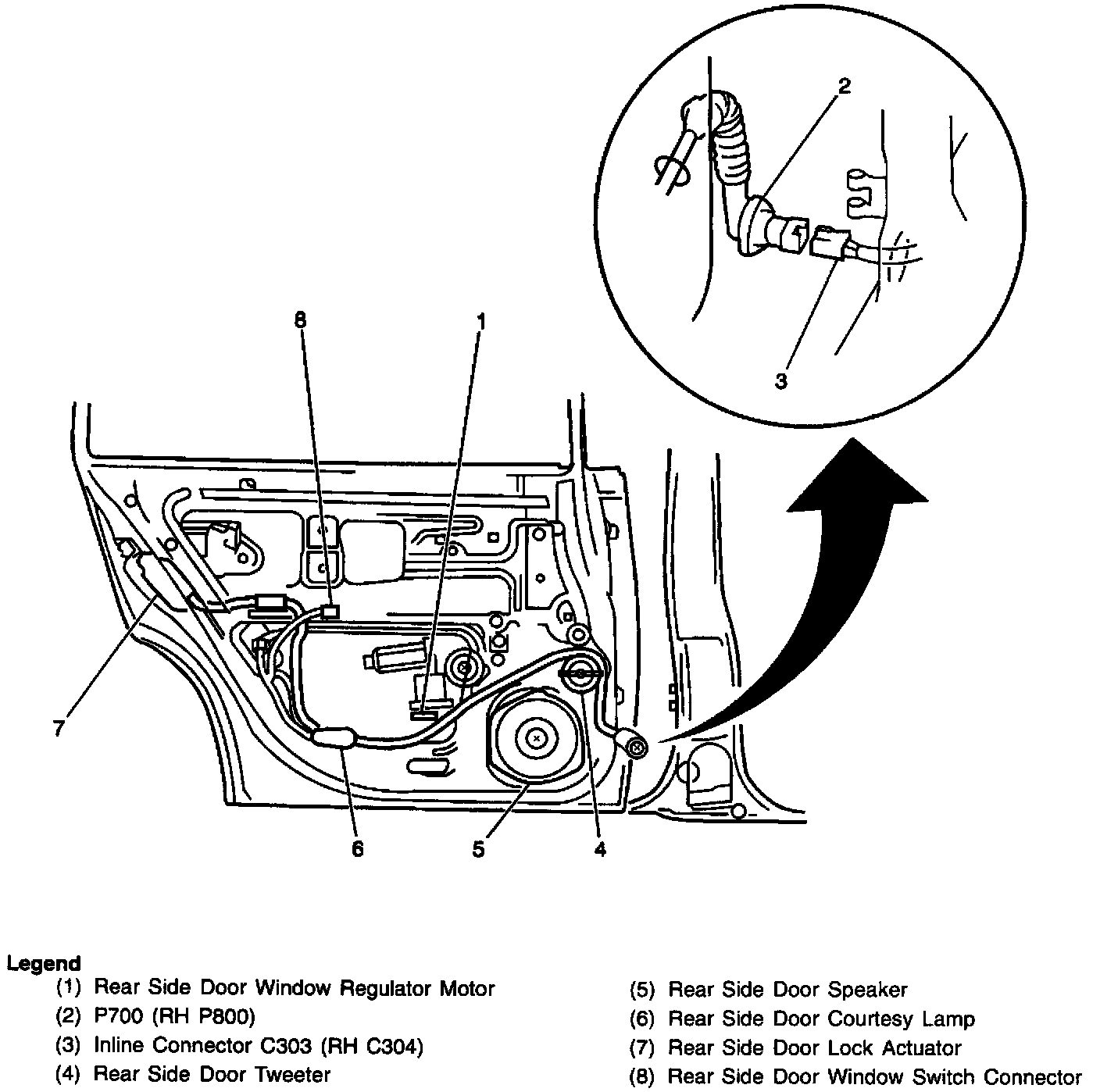

LH Rear Side Door (RH Similar):
