Antilock Brakes / Traction Control Systems

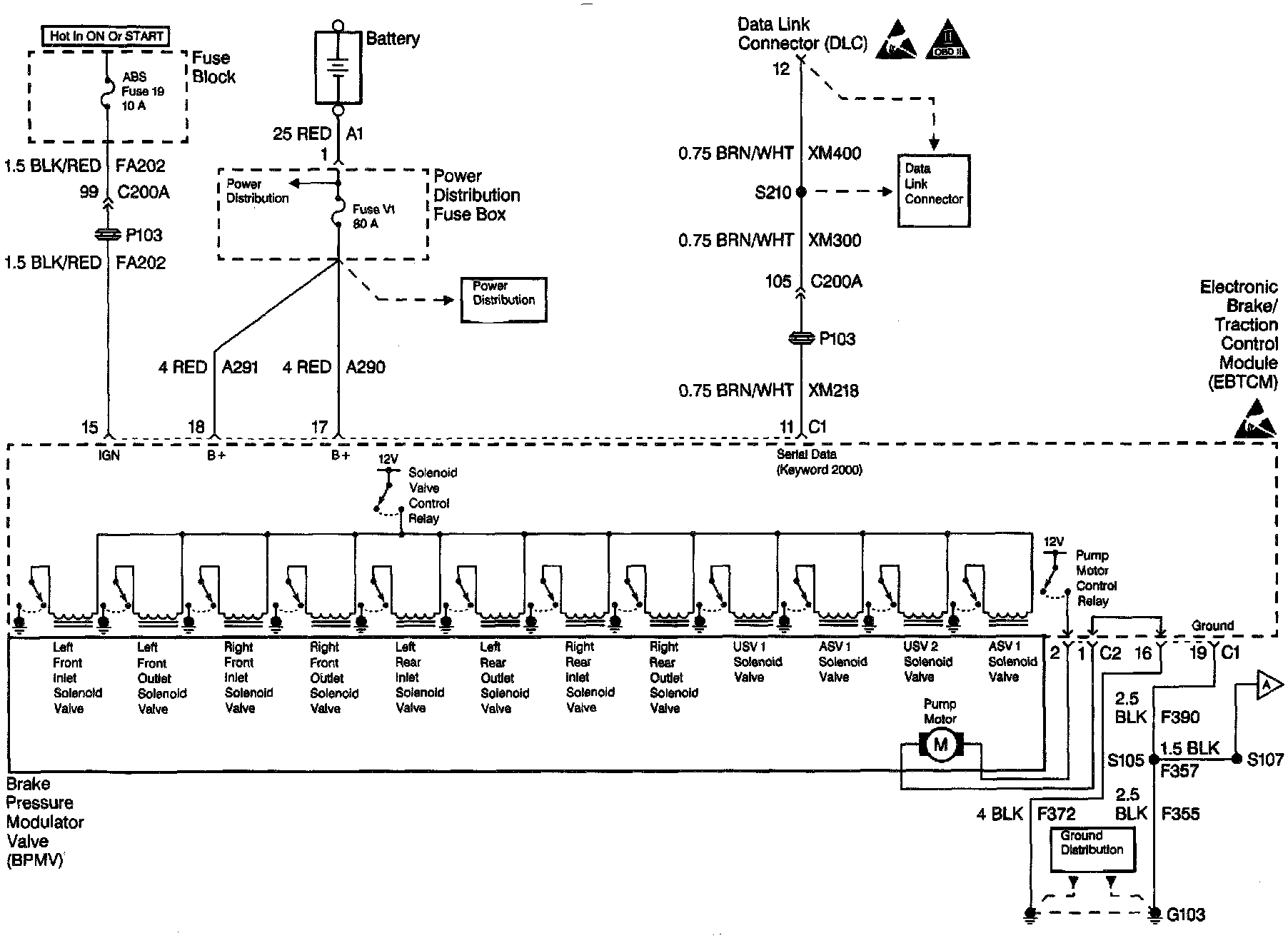

EBTCM, Power And Ground, BPMV And DLC:

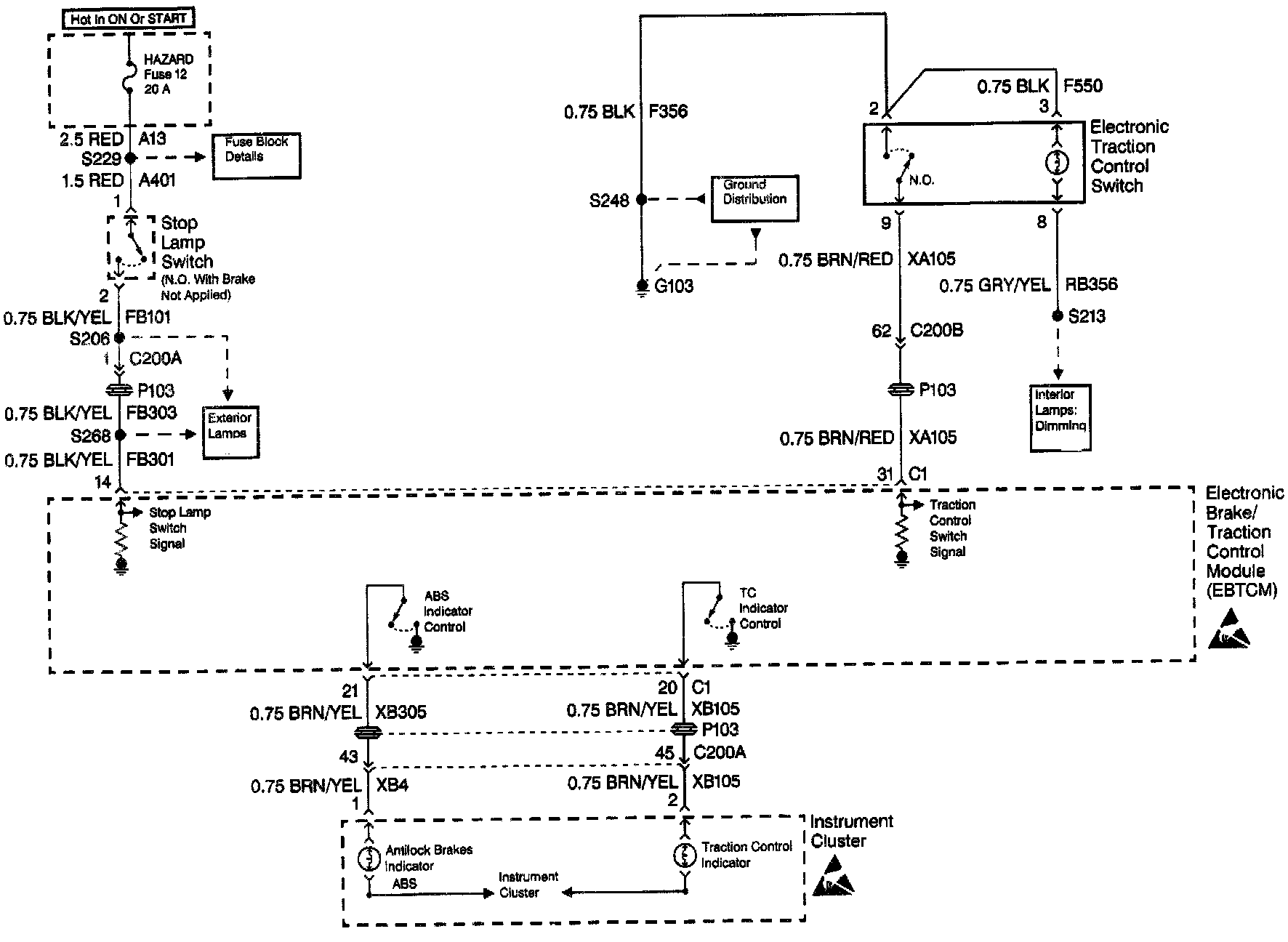

Electronic Traction Control Switch And Instrument Cluster:

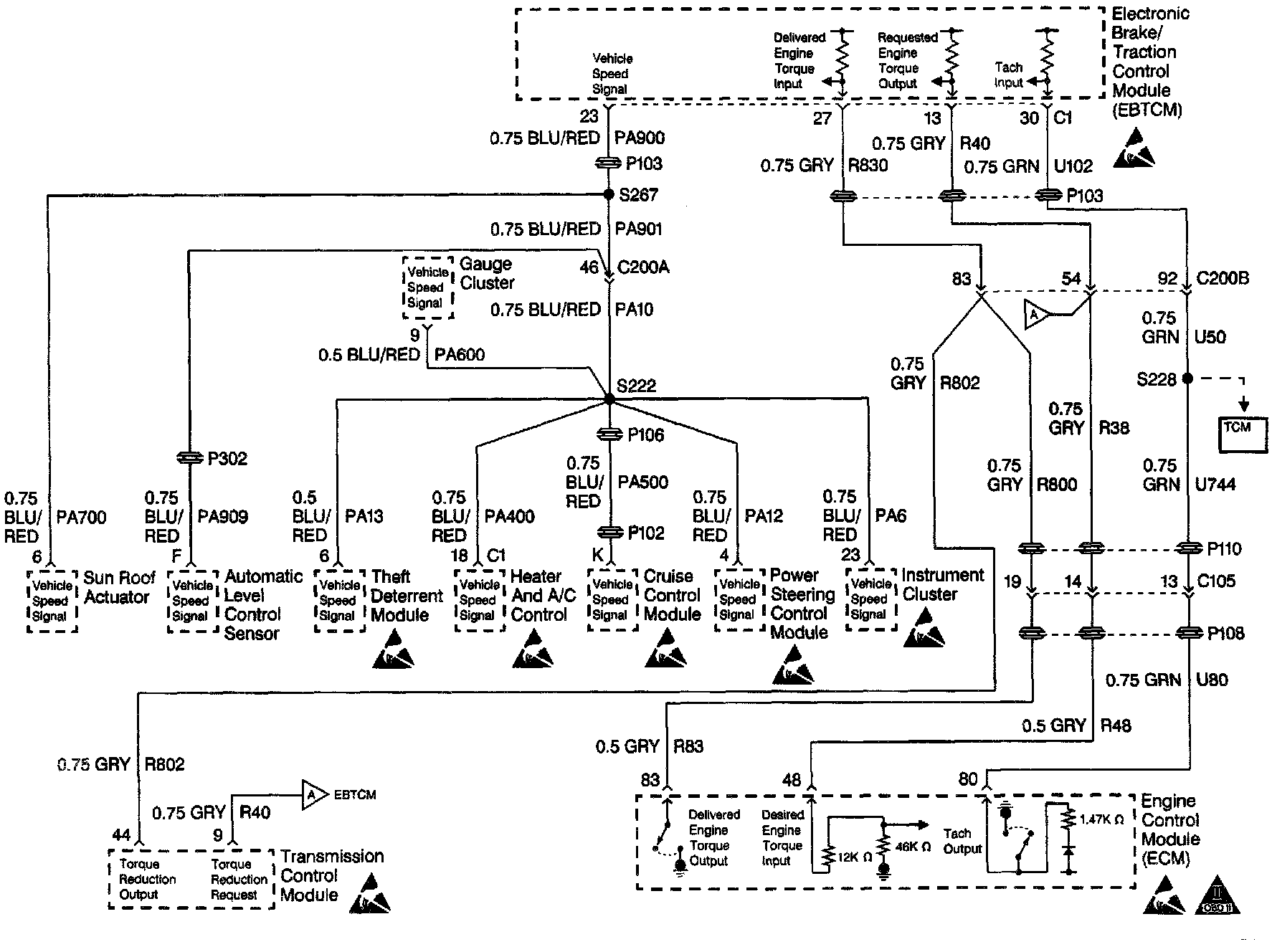

Vehicle Speed Signal, ECM And TCM:

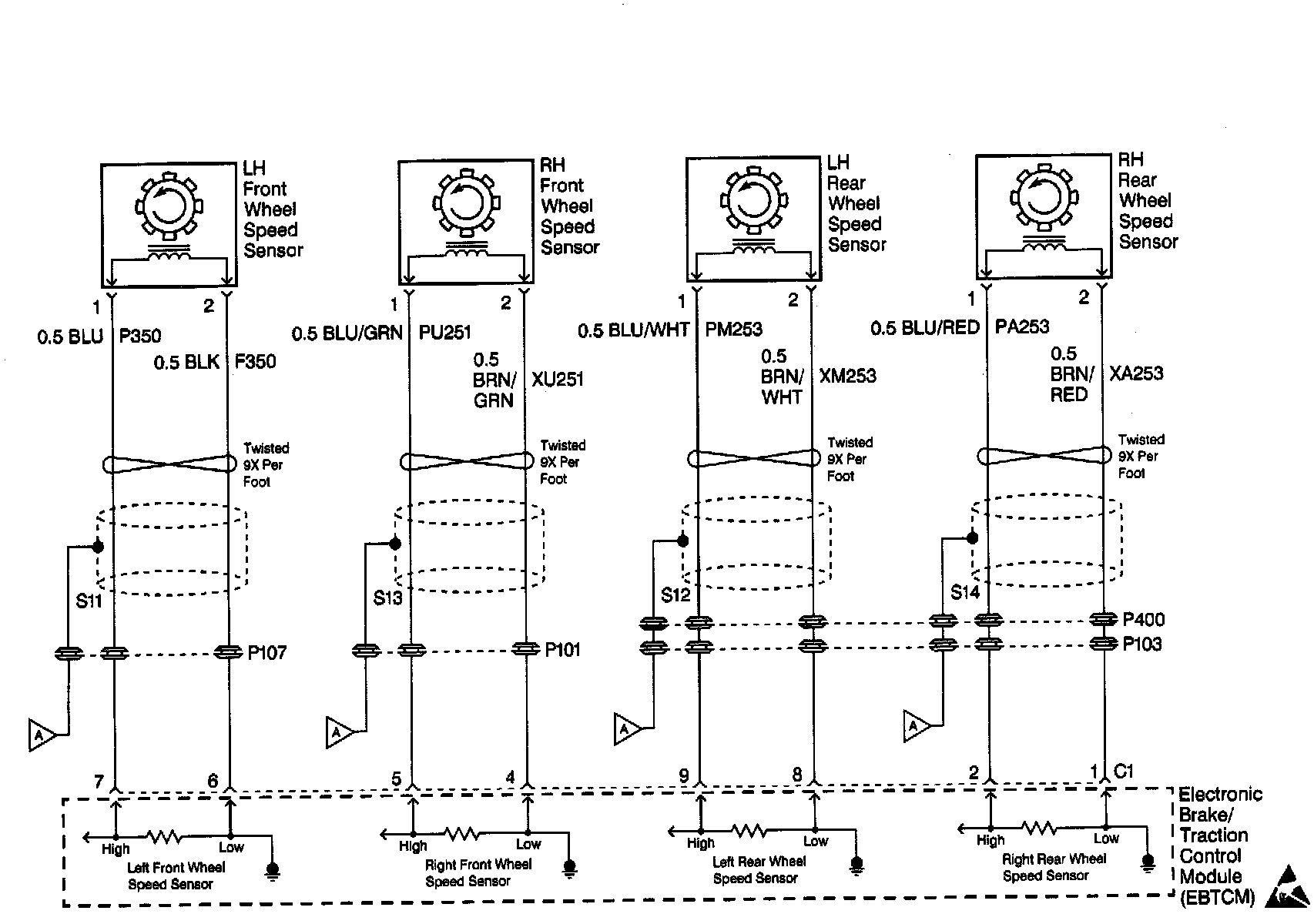

EBTCM And Wheel Speed Sensor:
