Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1998
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cellular Phone
>>
Bose (R) System
Bose (R) System

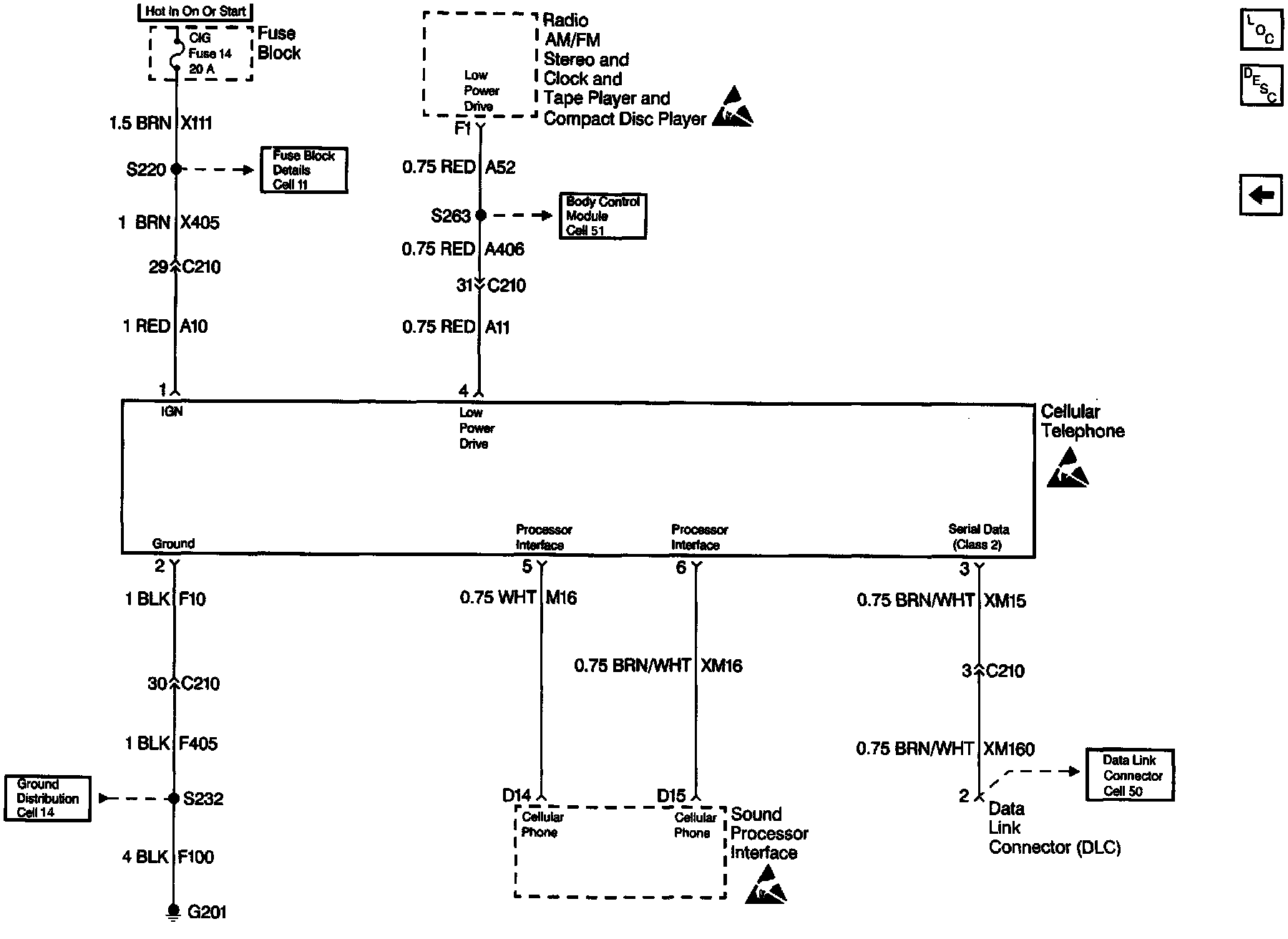

Cellular Telephone Schematics: Cellular Telephone (Bose (R) System):
