Cadillac
>>
1998
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
>>
Defogger Wiring Circuit
Defogger Wiring Circuit

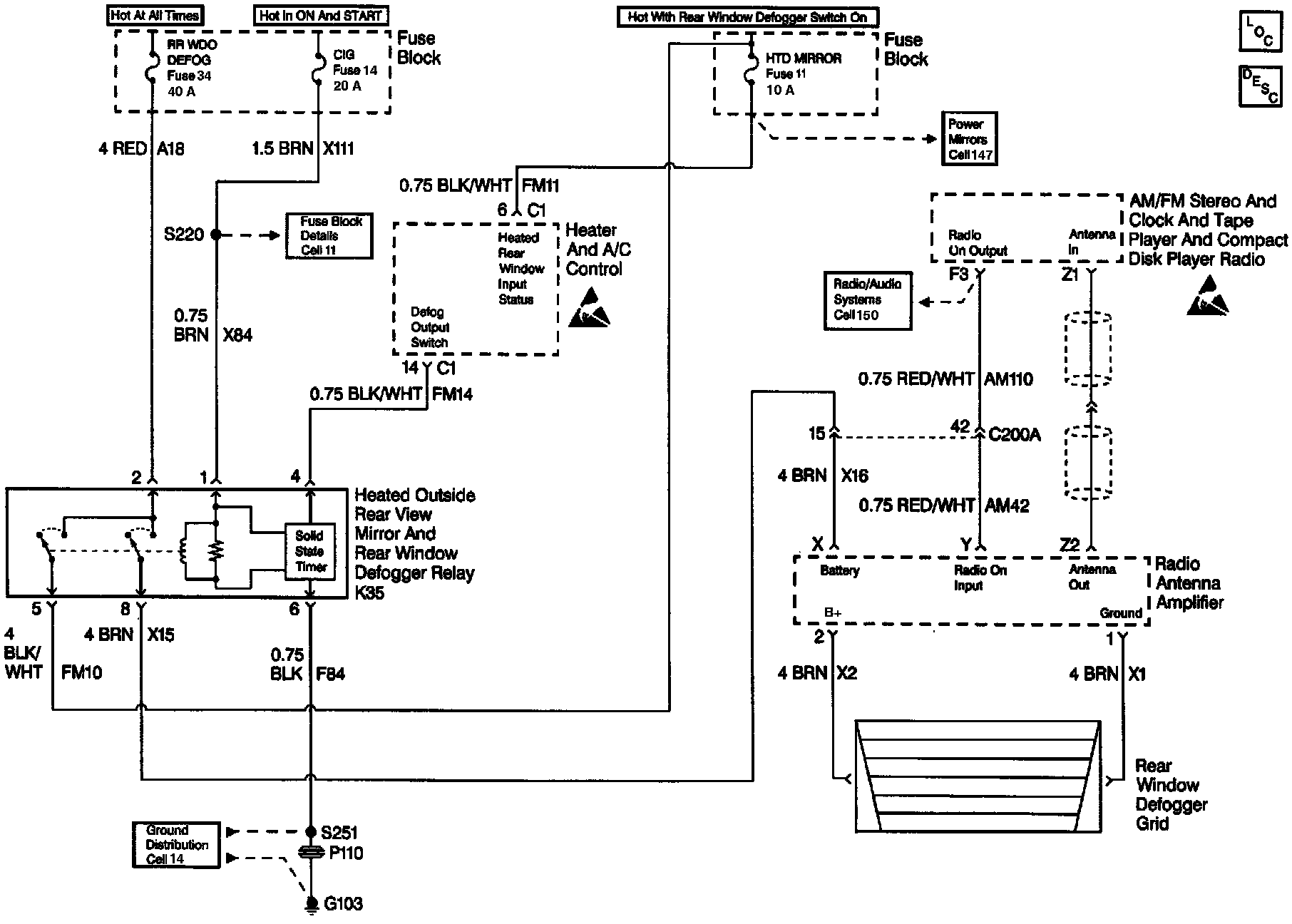

Defogger Schematics:
