Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Inside Air and Mode Valve Actuators

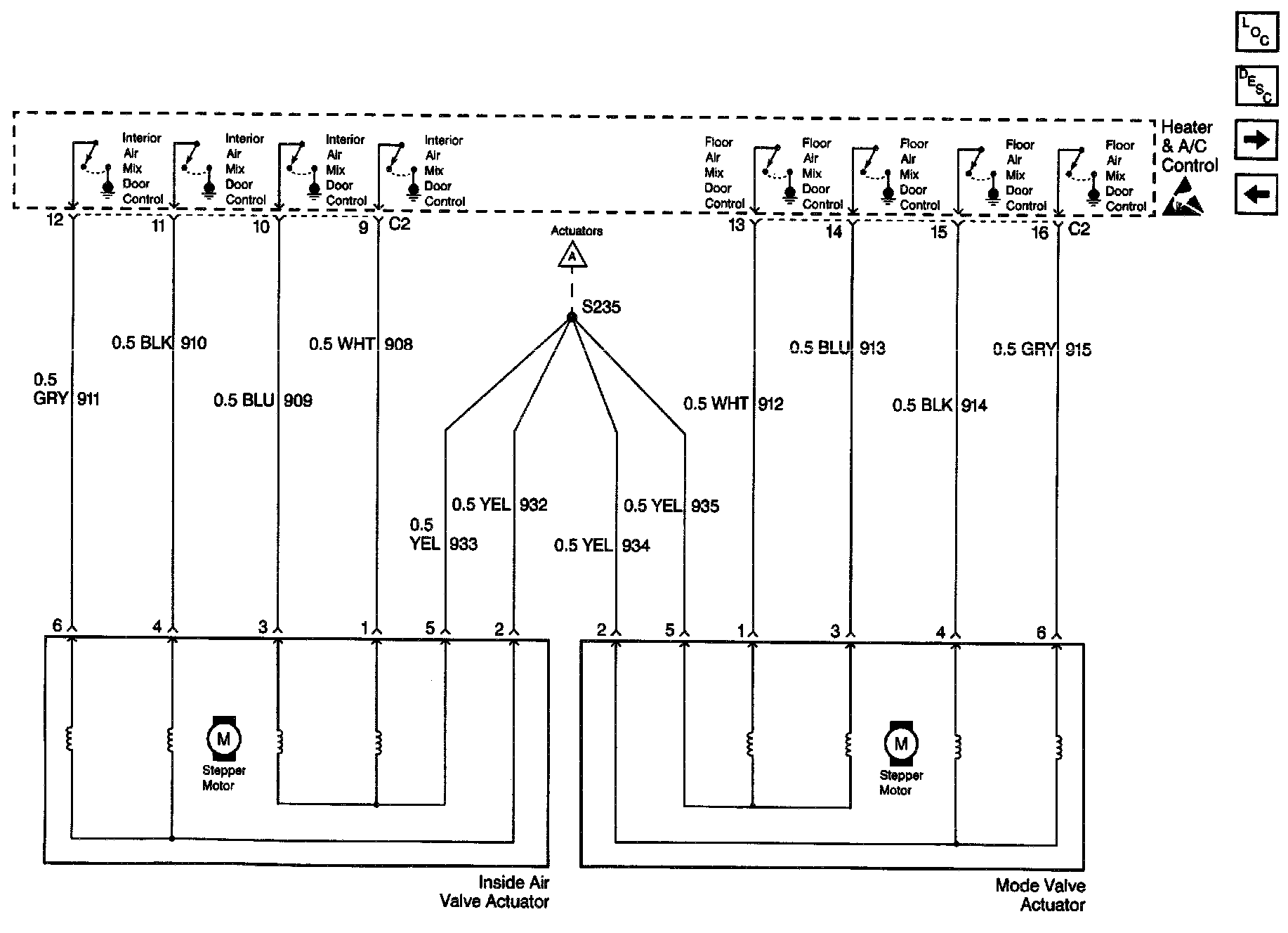

Inside Air and Mode Valve Actuators
