Radiator Cooling Fan Motor

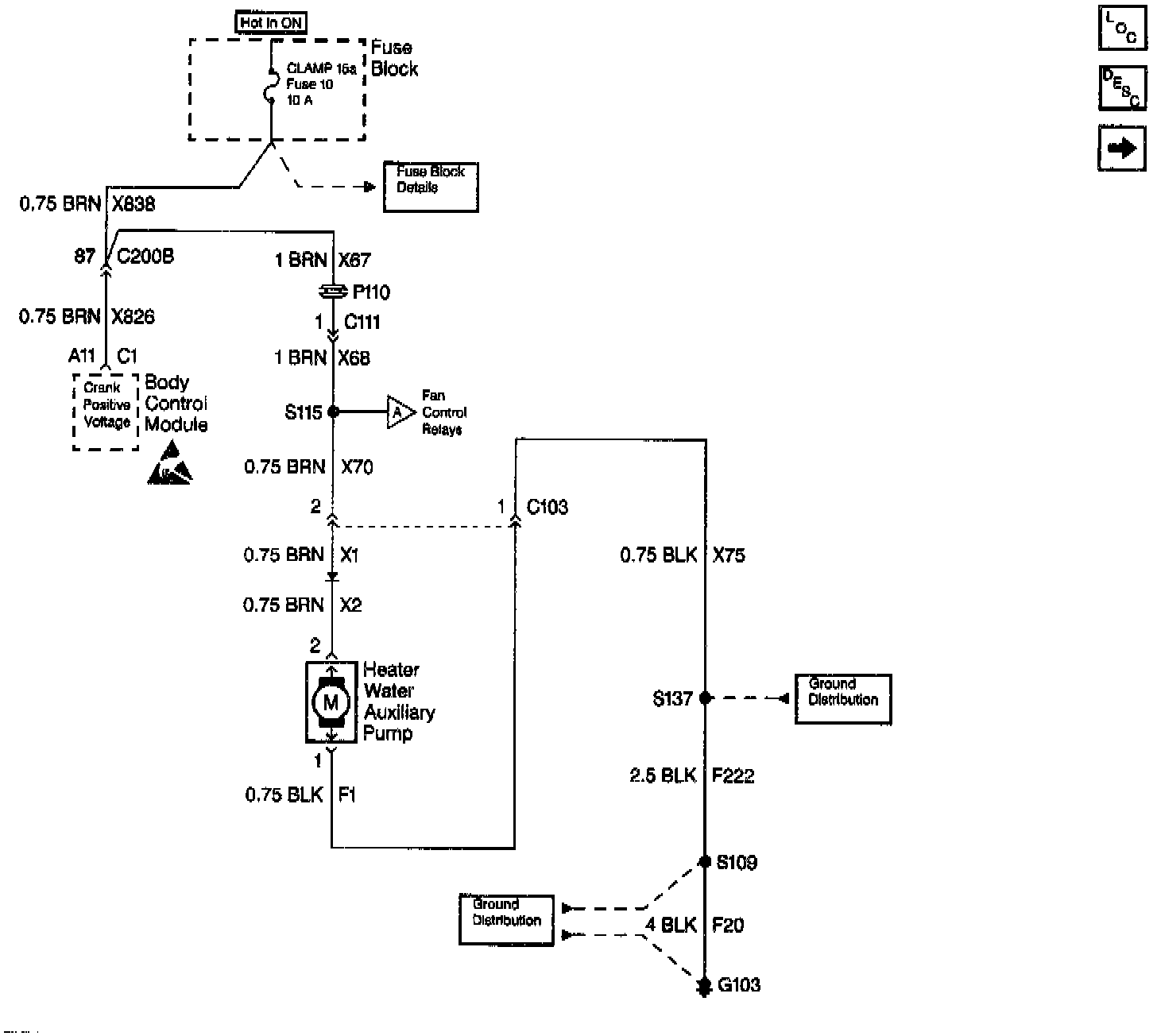

Cell 31 BCM And Heater Water Auxiliary Pump -- Page 1 Of 6:

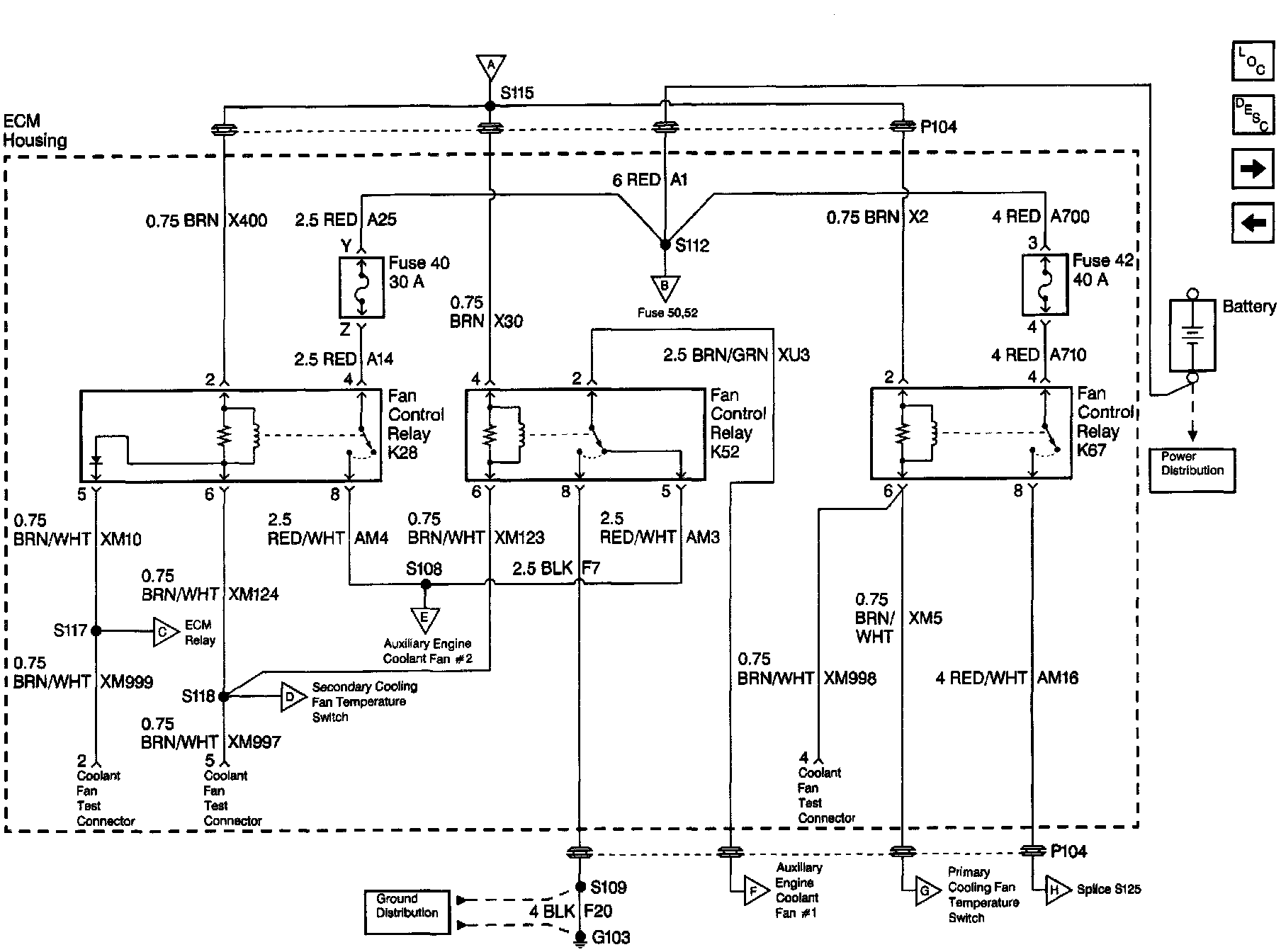

Cell 31 Battery, ECM Housing And Fan Control Relays -- Page 2 Of 6:

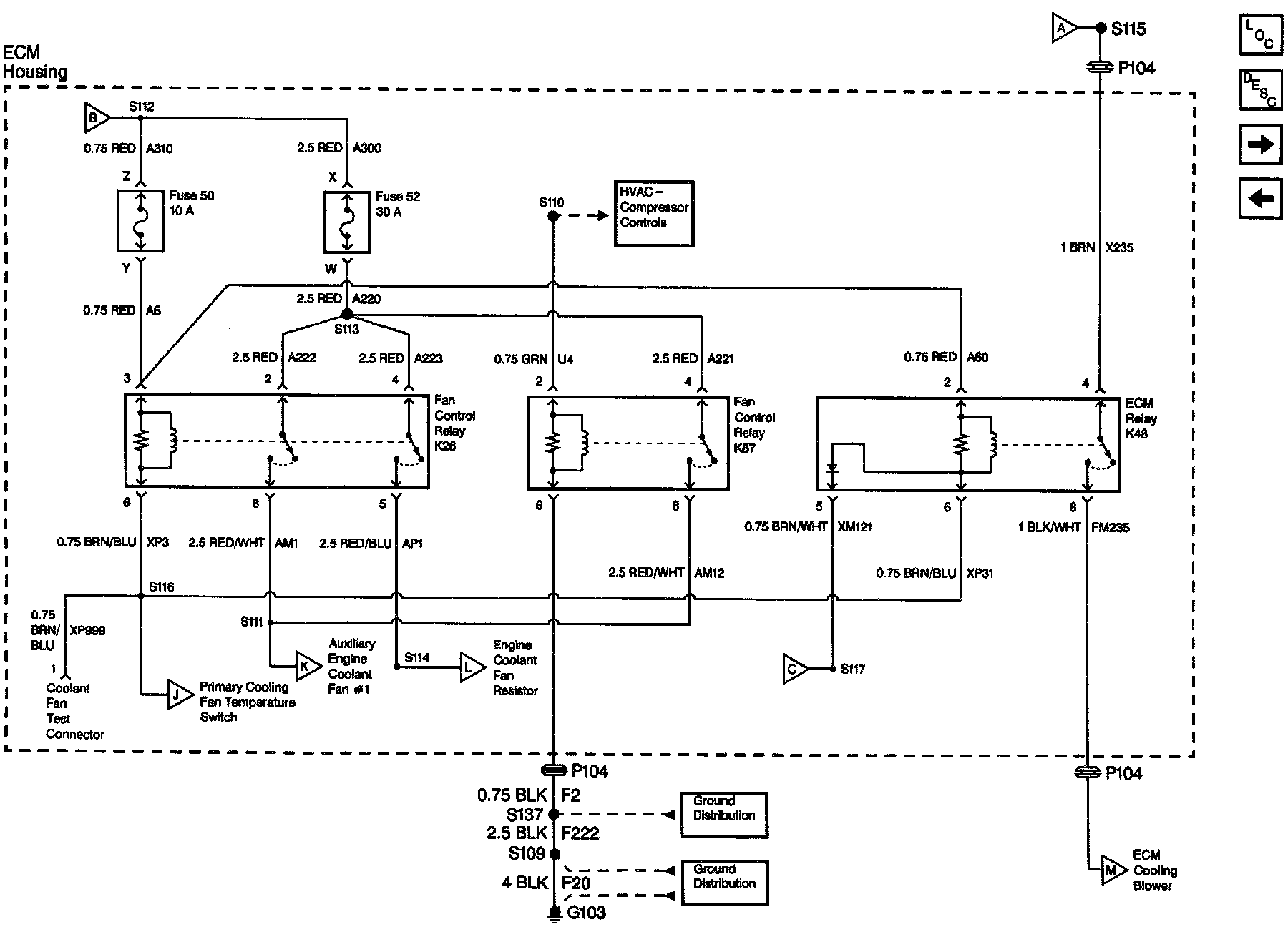

Cell 31 ECM Housing And Fan Control Relays -- Page 3 Of 6:

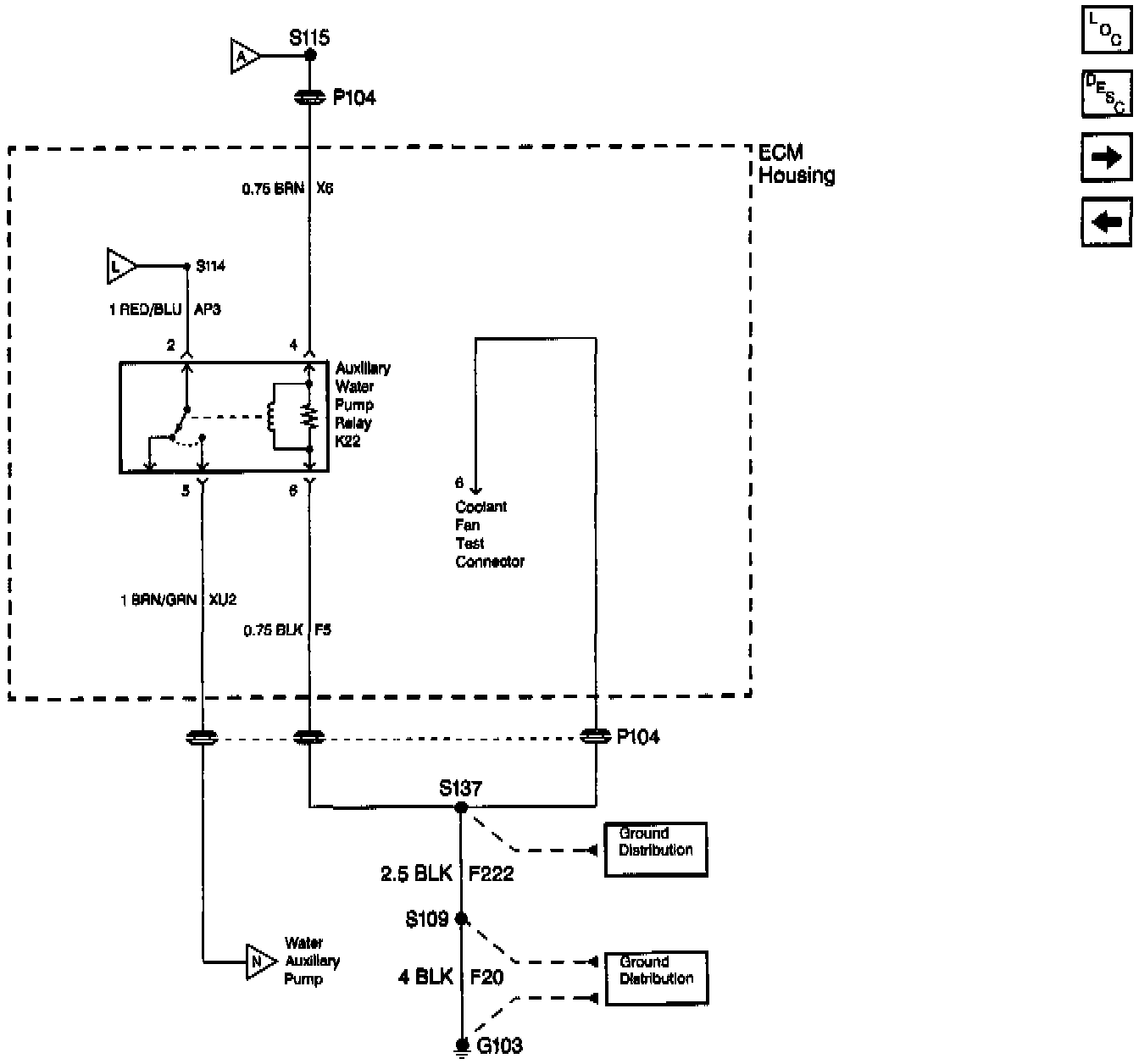

Cell 31 Coolant Fan Test Connector And Auxiliary Water Pump Relay K22 -- Page 4 Of 6:

Cell 31 Auxiliary Coolant Fans And Cooling Fan Temperature Switches -- Page 5 Of 6:

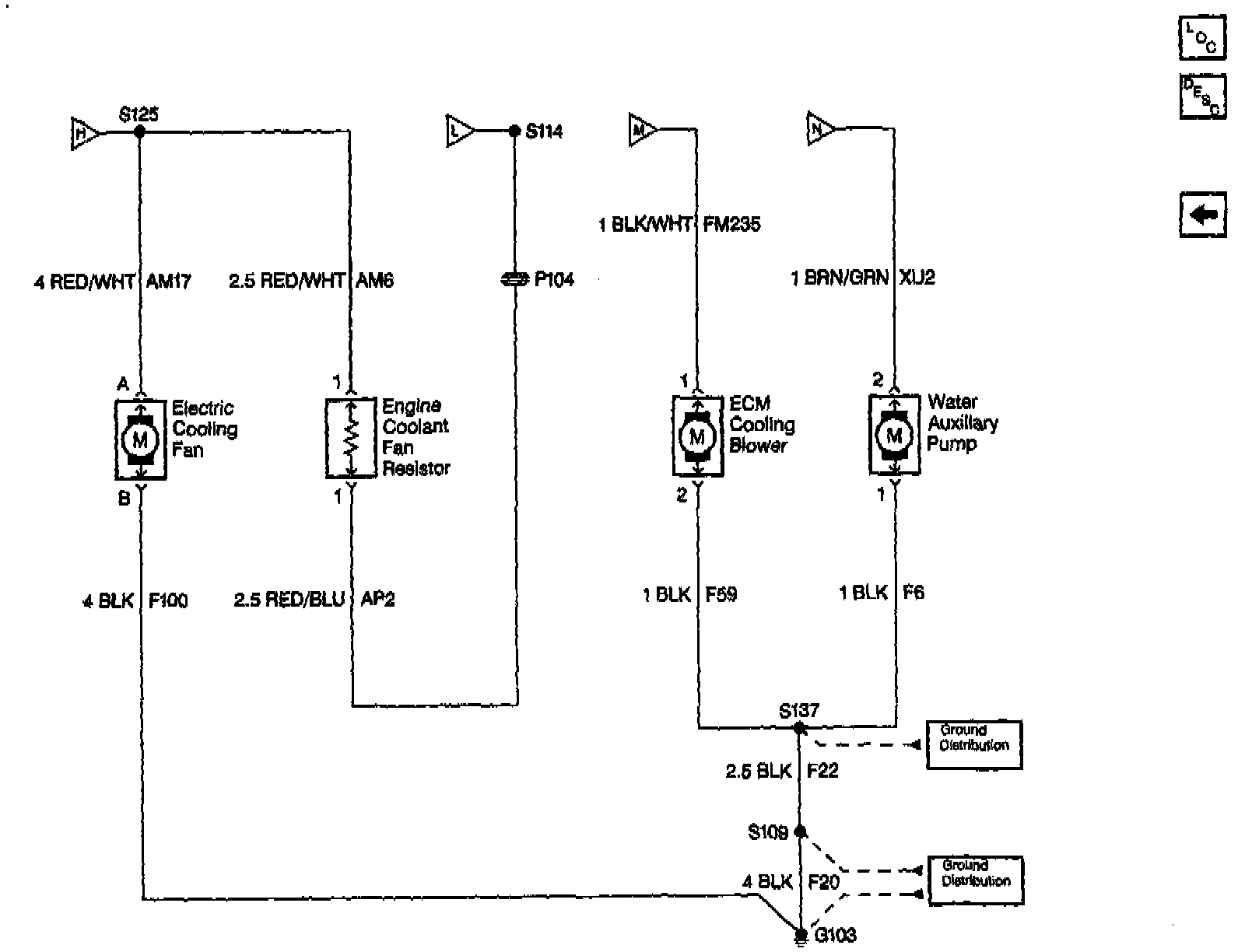

Cell 31 Electric Cooling Fan And Water Auxiliary Pump -- Page 6 Of 6:
