Cadillac
>>
1998
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
Case Adapter, A/T Winter Mode Switch and Selector Lever

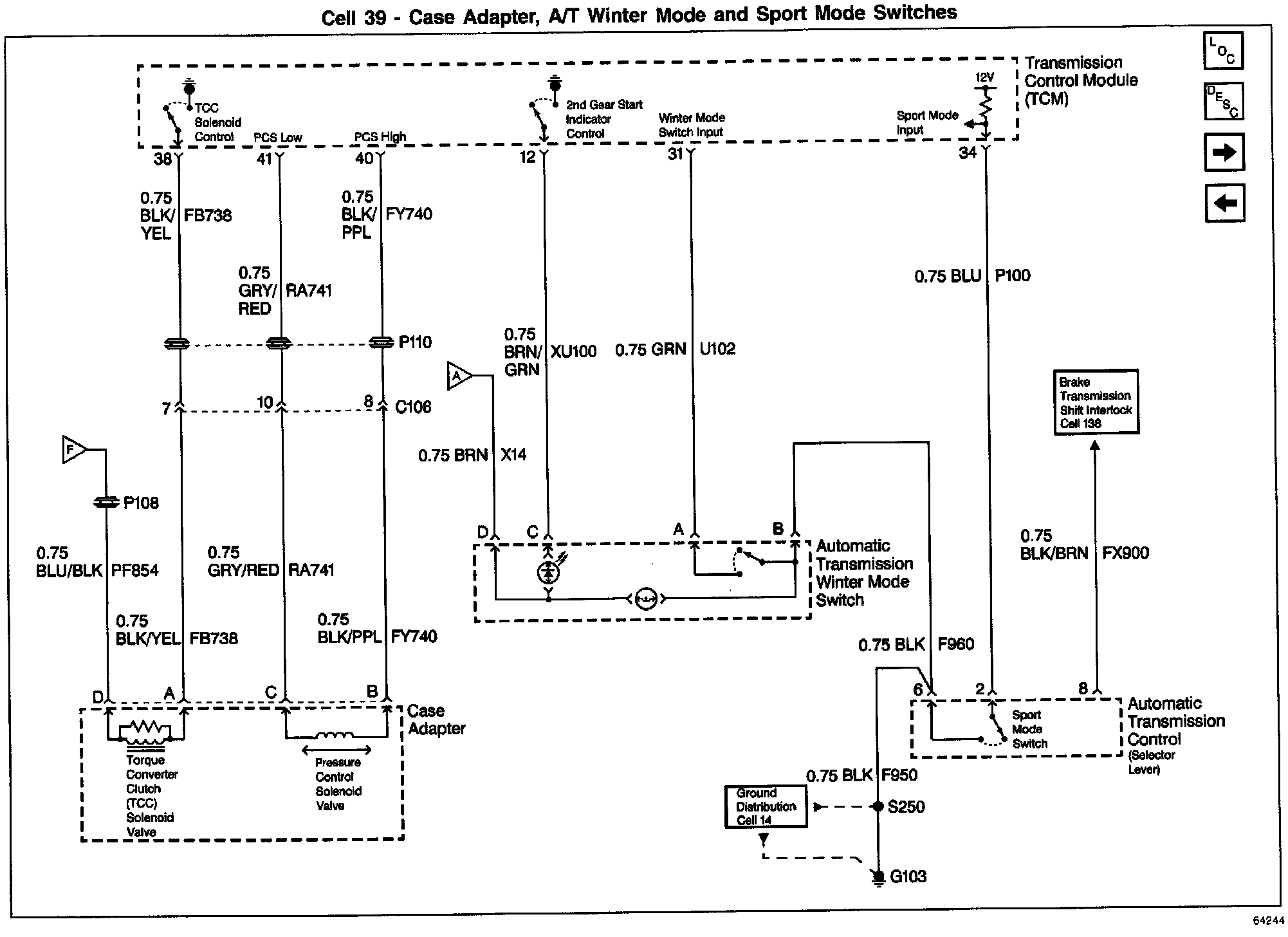

Case Adapter, A/T Winter Mode Switch and Selector Lever
Wiring Diagram:
