Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Adapter Case (Valve Body Side) Fluid Passages

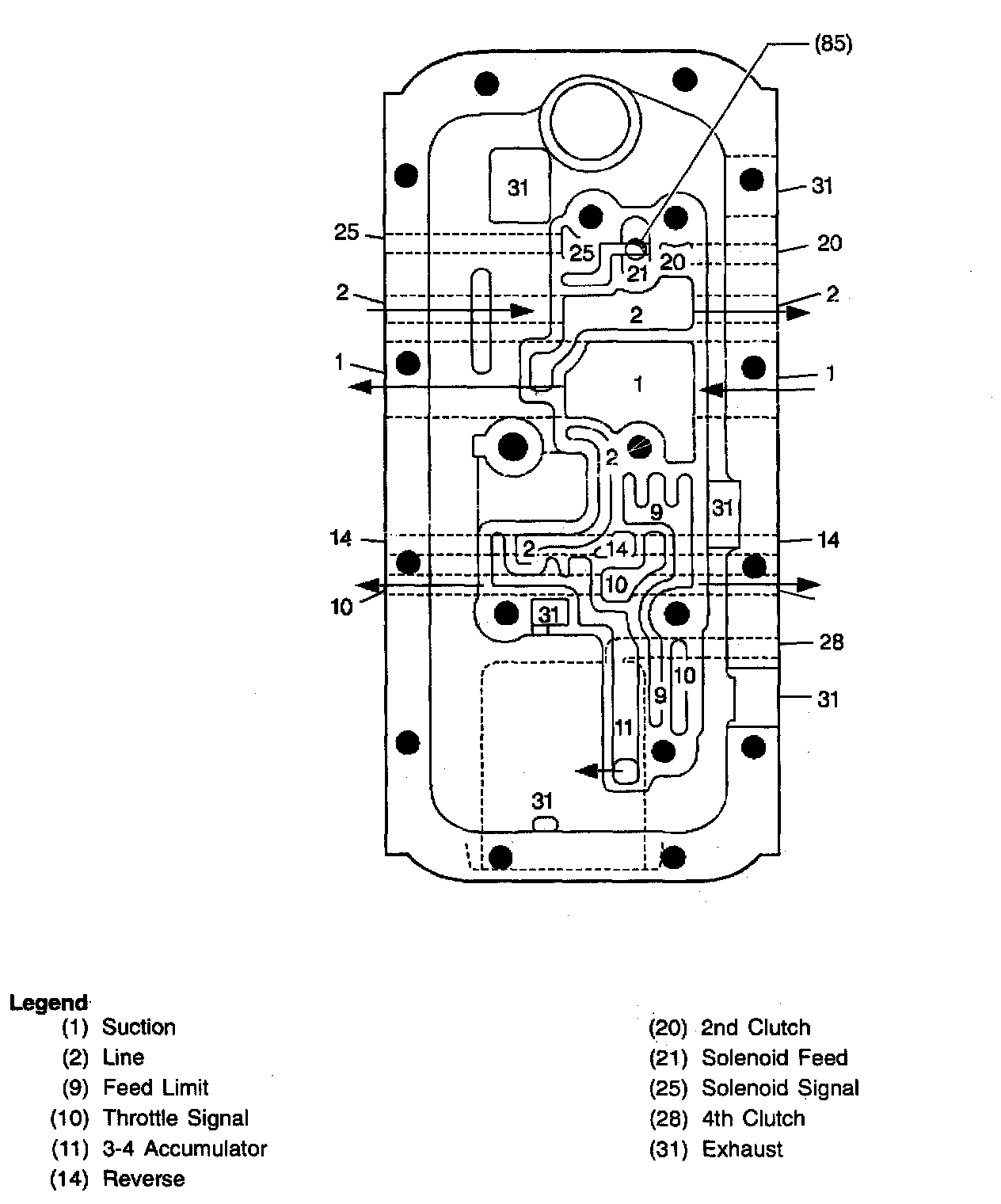

Adapter Case (Valve Body Side) Fluid Passages
