Automatic Transmission/Transaxle
>>

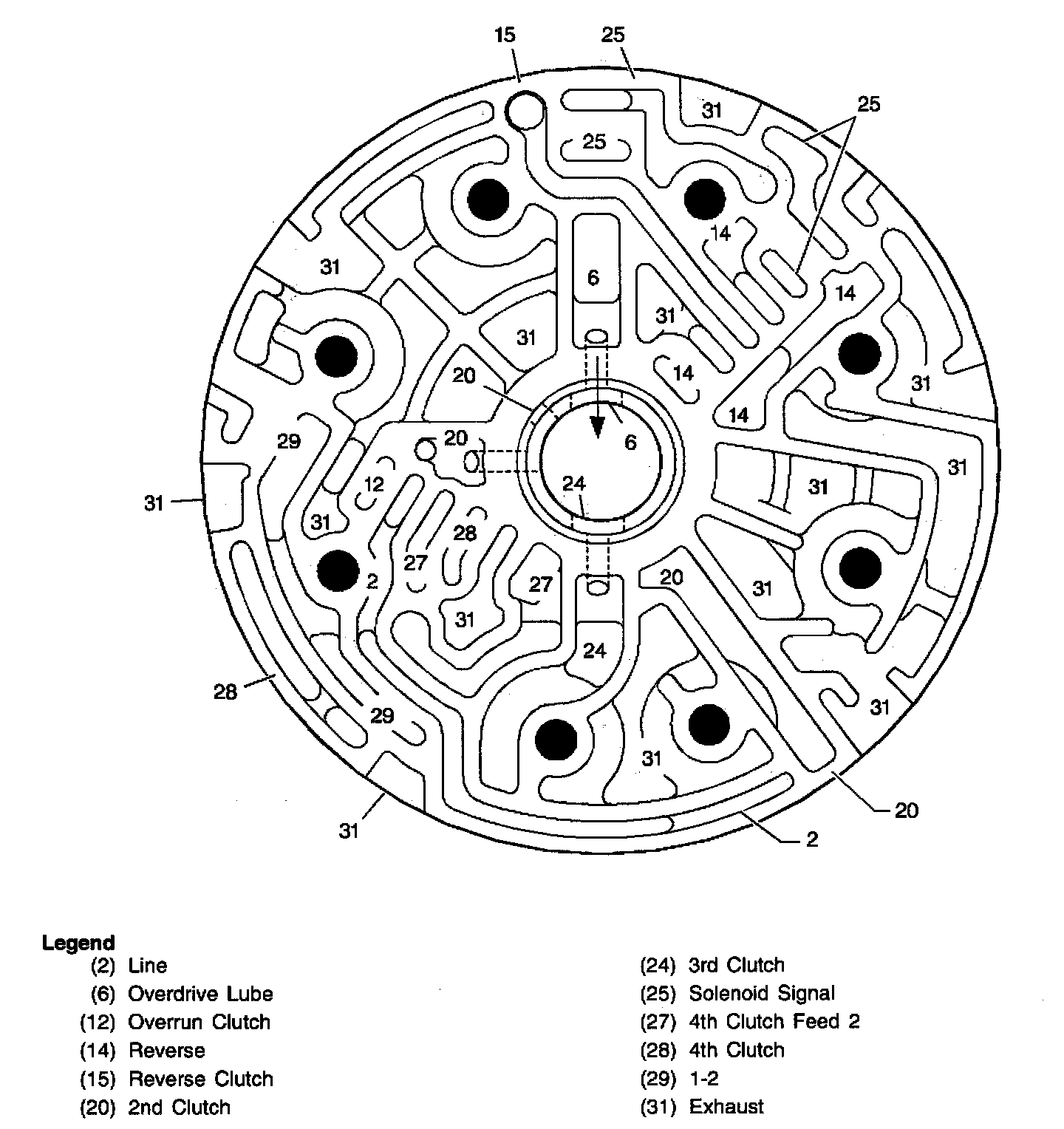

Center Support (Adapter Case Side) Fluid Passages
Center Support (Adapter Case Side) Fluid Passages
