Home
>>
Cadillac
>>
1998
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>

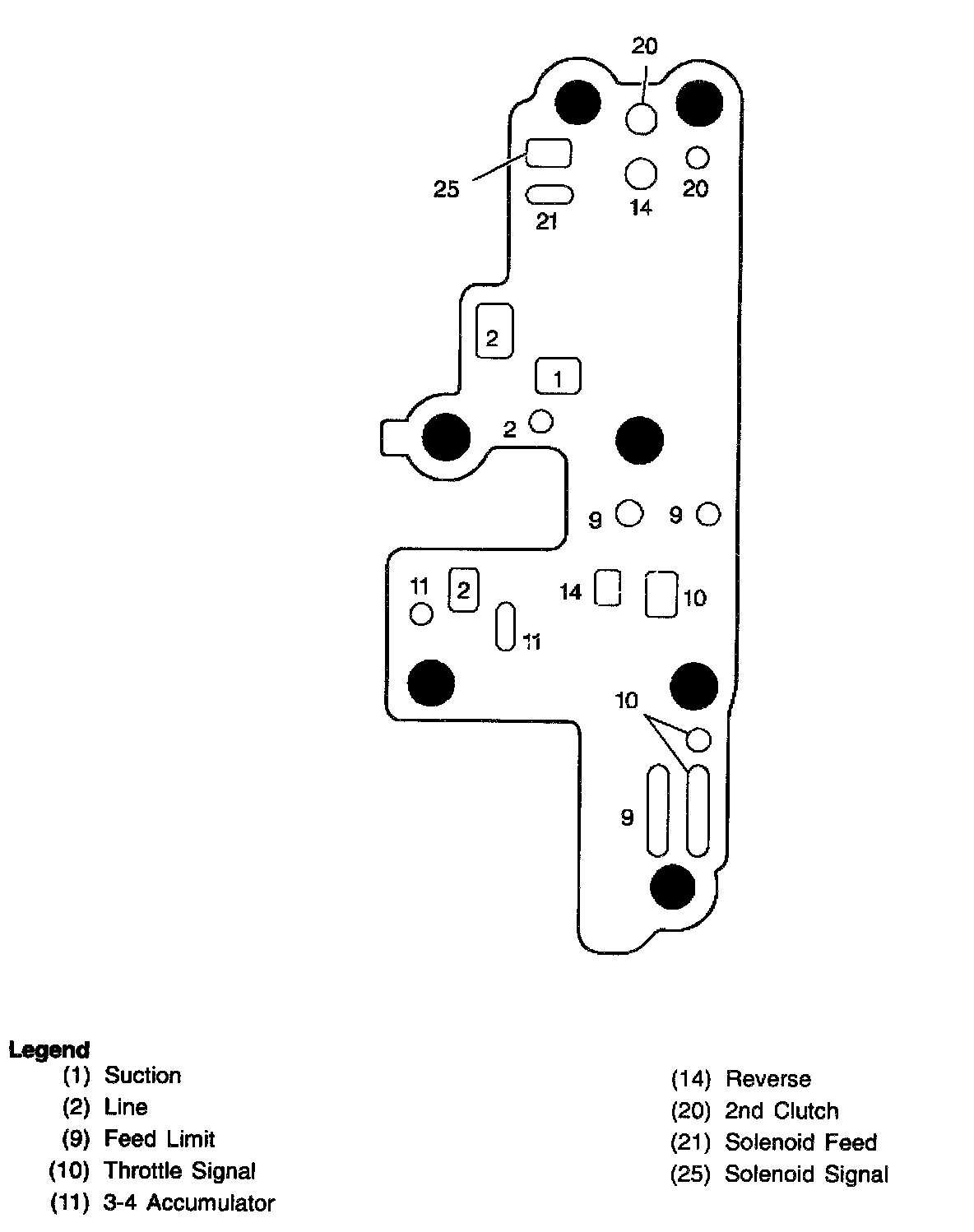

Gasket (Spacer Plate-Adapter Case Valve Body) Fluid Passages
Gasket (Spacer Plate-Adapter Case Valve Body) Fluid Passages
