Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Spacer Plate (Main Case-Valve Body) Fluid Passages

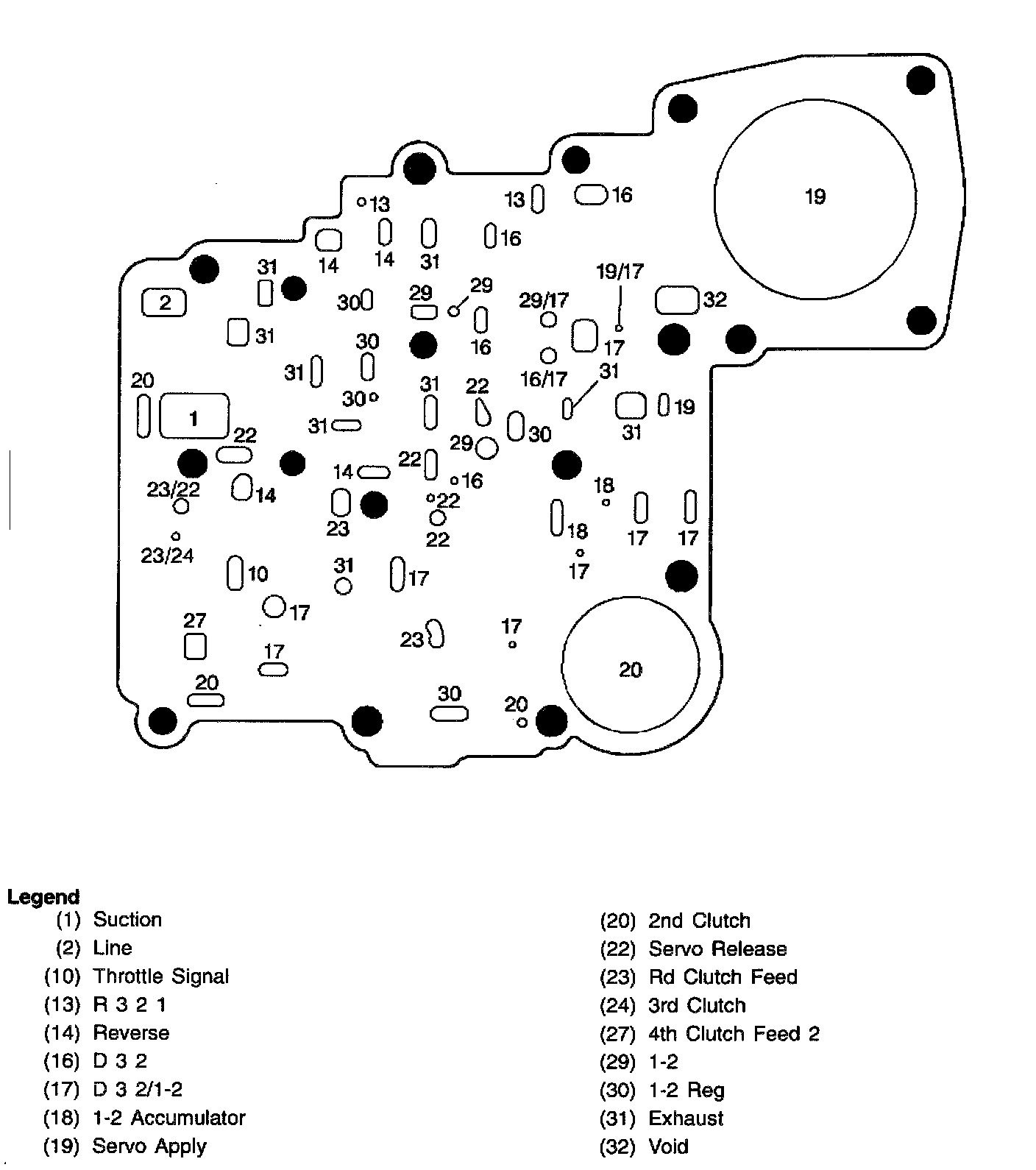

Spacer Plate (Main Case-Valve Body) Fluid Passages
