Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Ambient Light and Outside Air Temperature Sensor

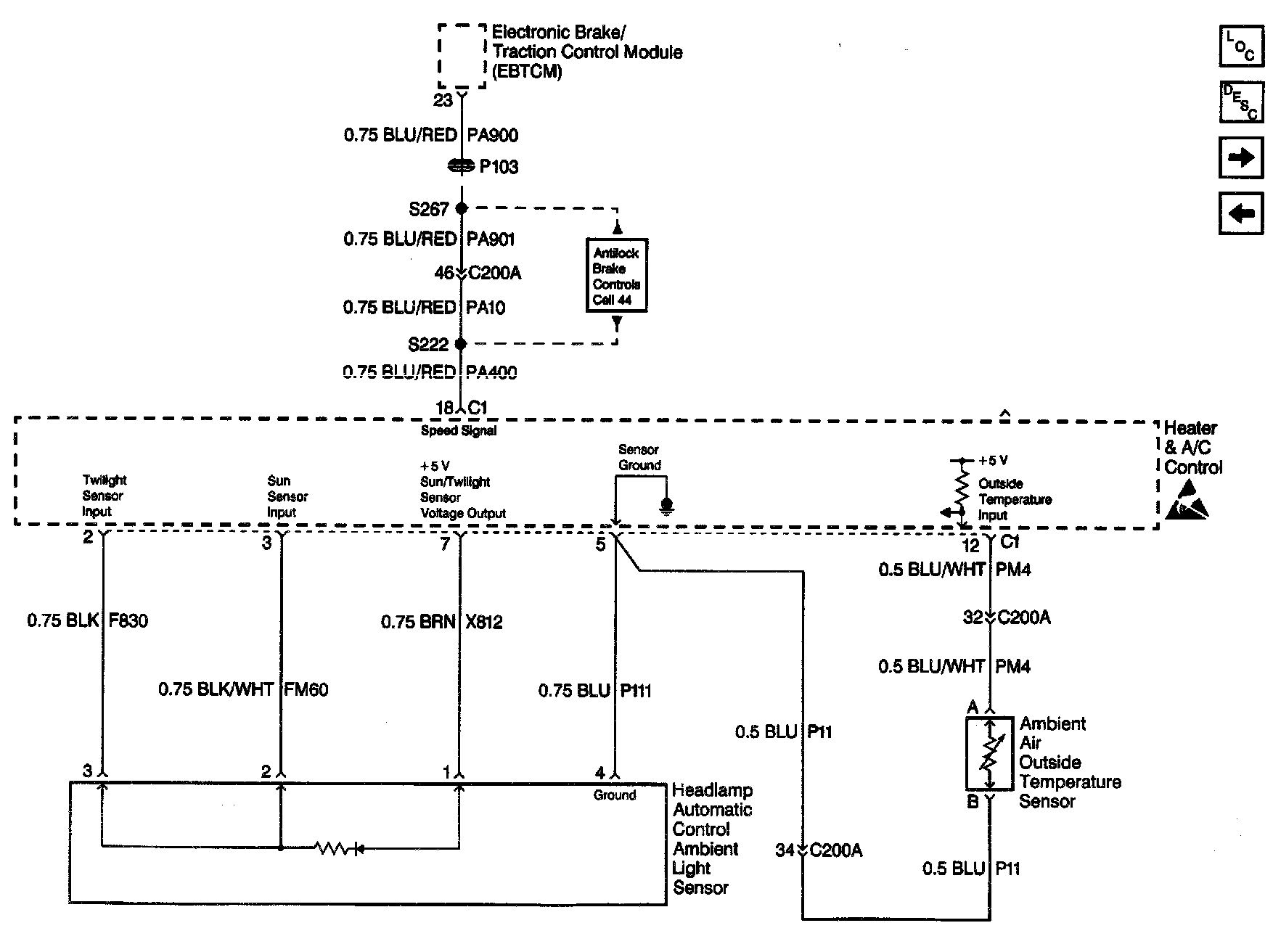

Ambient Light and Outside Air Temperature Sensor
