Cigarette Lighter: Service and Repair

REMOVAL PROCEDURE

Cigar Lighter Replacement: Removal Procedure:

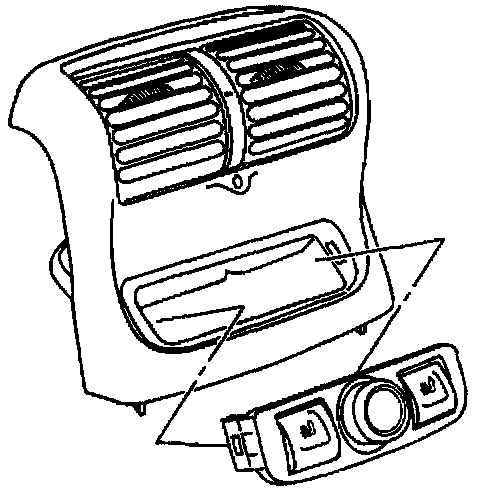

1. Remove the rear heated seat switch panel (1) from front floor console rear vent housing (2).
2. Remove the connector from lighter.
3. Remove the cigarette lighter from panel.

INSTALLATION PROCEDURE

Cigar Lighter Replacement: Installation Procedure:

1. Install the cigarette lighter to panel.
2. Install the connector to lighter.
3. Install the rear heated seat switch panel (1) to front floor console rear vent housing (2).
