Coolant Temp Indicator, Coolant Temp and Fuel Gauges

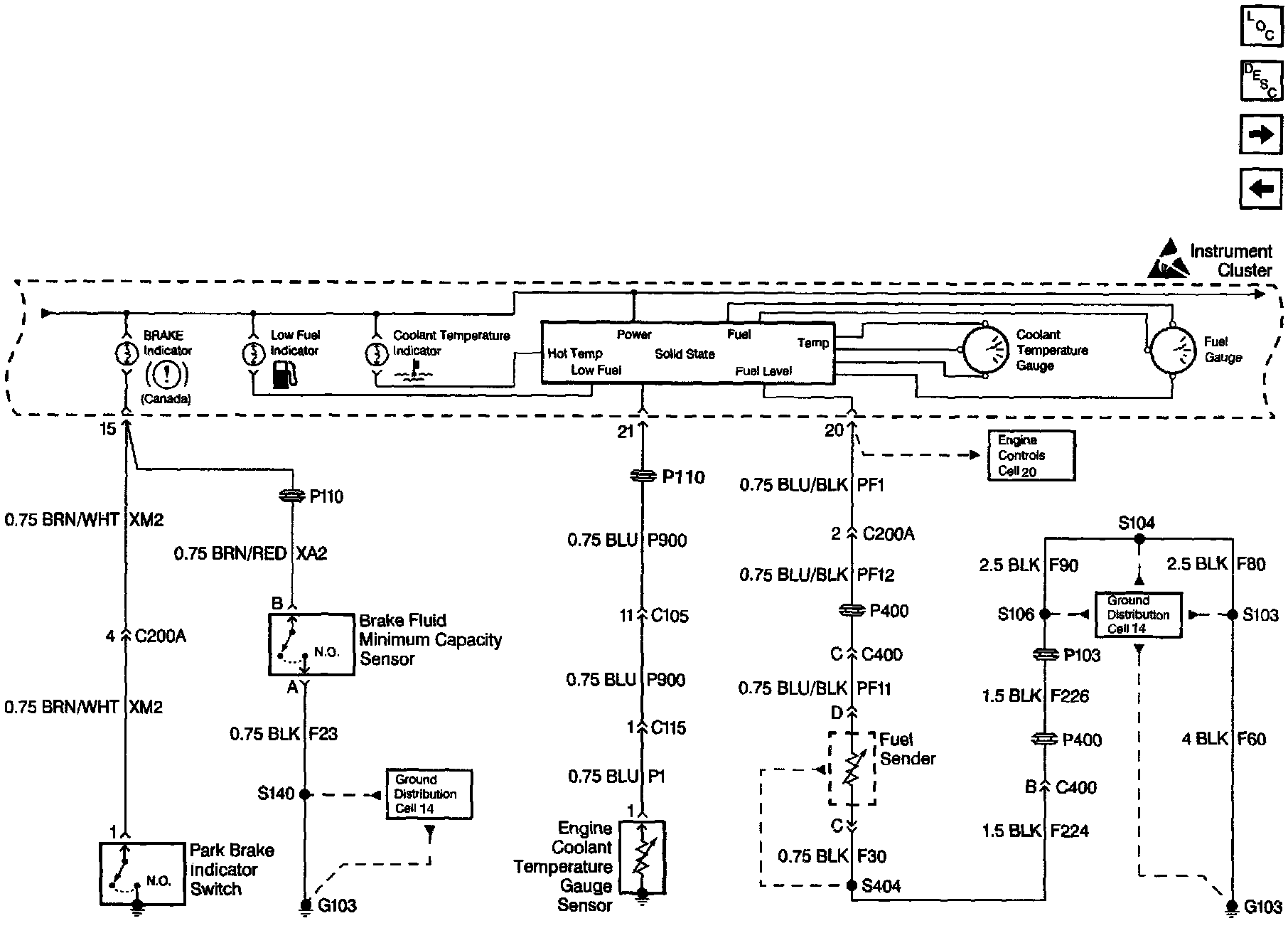

Coolant TEMP Indicator, Coolant TEMP And Fuel Gauges:
