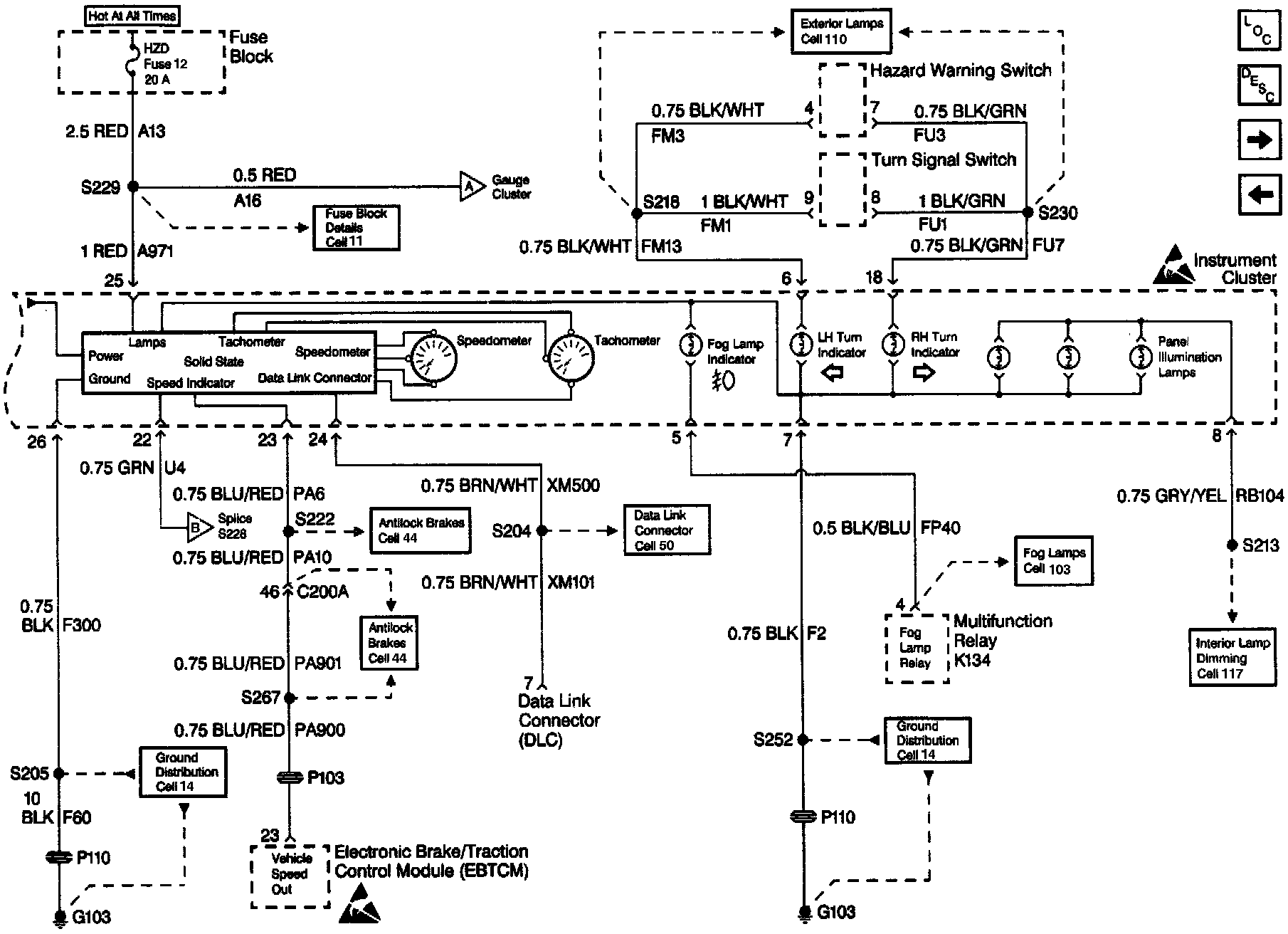

Speedometer, Tachometer and Panel Illumination Lamps

Speedometer, Tachometer And Panel Illumination Lamps:
