Instrument Panel Cluster Lens

REMOVAL PROCEDURE

IP Cluster Lens Replacement: Removal Procedure:

1. Remove the instrument cluster Refer to Instrument Cluster.
2. Remove the voltage-oil pressure gauge module screws form module.

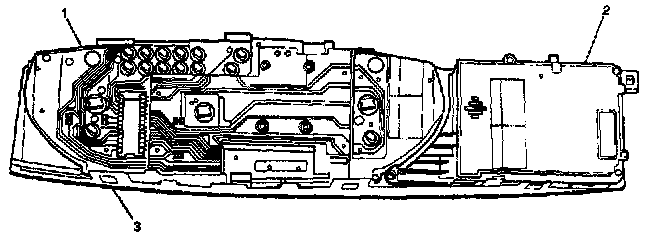

3. Remove the voltage-oil pressure gauge module (2) from cluster lens (3) by pulling back locking tabs and removing.
4. Remove the speedometer-tachometer gauge module screws from module.
5. Remove the speedometer-tachometer gauge module (1) from cluster lens (3) by pulling back locking tabs and removing.
6. Replace lens.

INSTALLATION PROCEDURE

IP Cluster Lens Replacement: Installation Procedure:

1. Install the speedometer-tachometer gauge module (1) to cluster lens (3).
2. Install the speedometer-tachometer gauge module screws to module.

IMPORTANT: Ensure the locking tabs snap into position on module.

3. Install the voltage-coil pressure gauge module (2) to cluster lens (3).
4. Install the voltage-coil pressure gauge module screws to module.
5. Install the instrument cluster.
