Home >> Cadillac >> 1998 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Lighting and Horns >> Center Mounted Brake Lamp >> Diagrams

Center Mounted Brake Lamp: Diagrams

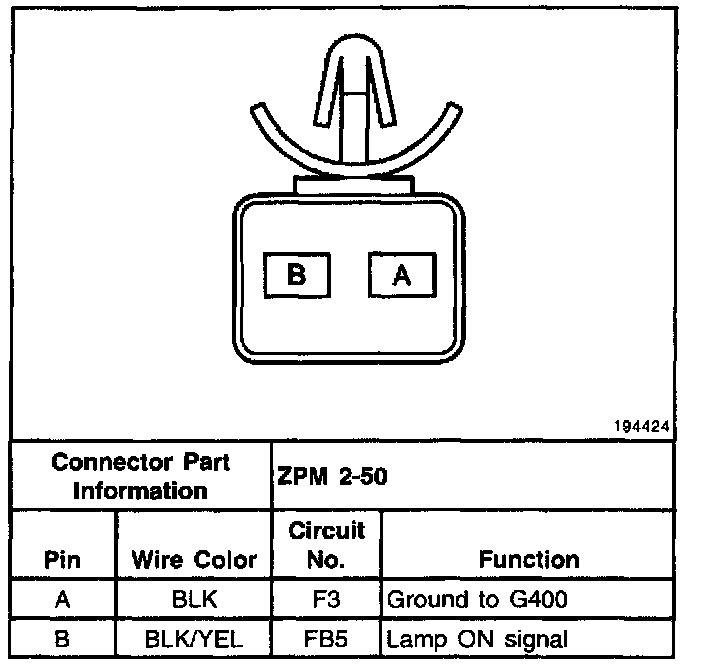

Auxiliary Brake Lamp:
