Exterior Lamps

Exterior Lights Schematics: BCM, HDLP Switch, Park Lamp Relay K130 And Fuse Block:

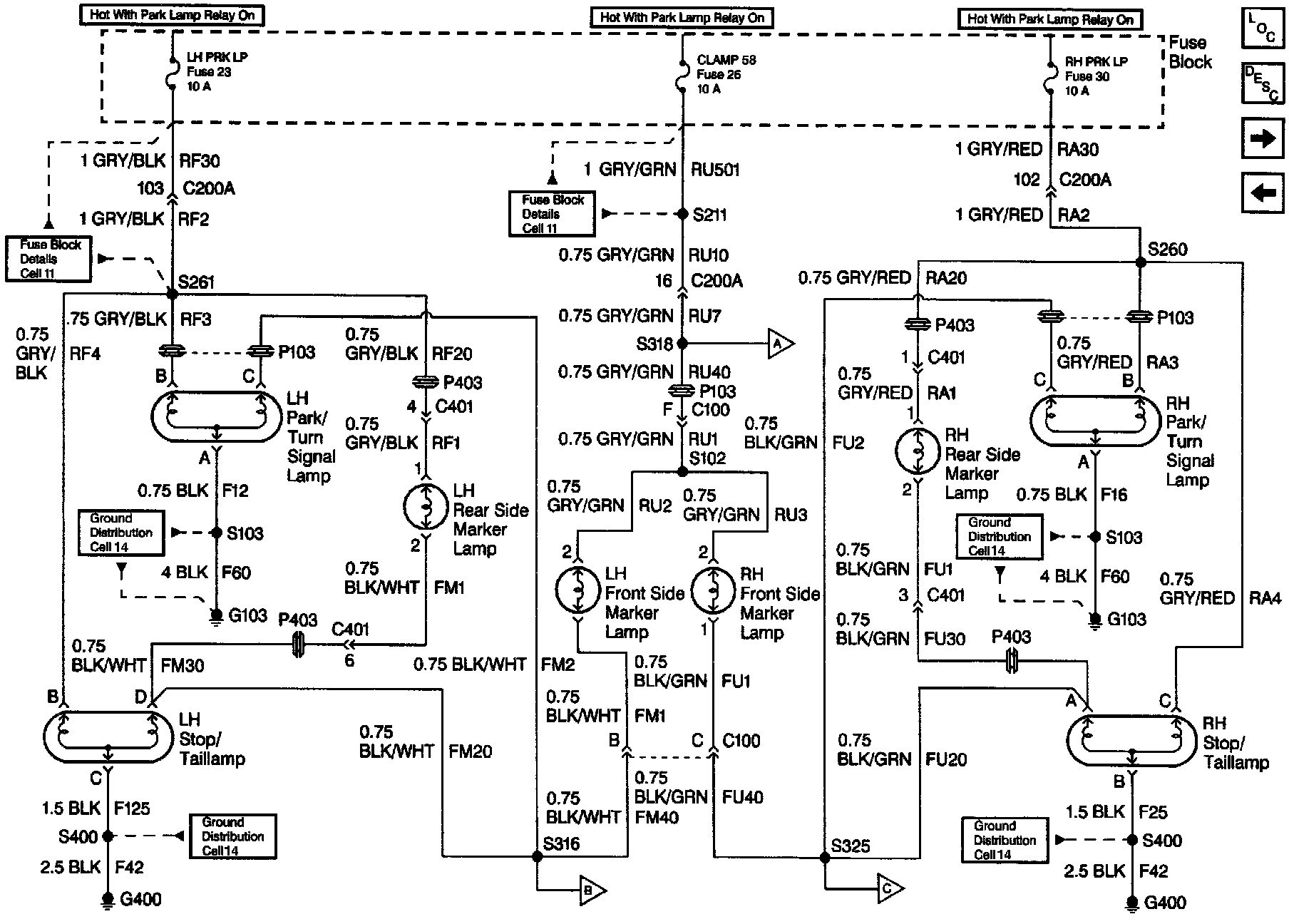

Exterior Lights Schematics: Park/Turn Signal LPS, Front And Rear Side Marker LPS And Stop/Taillamps:

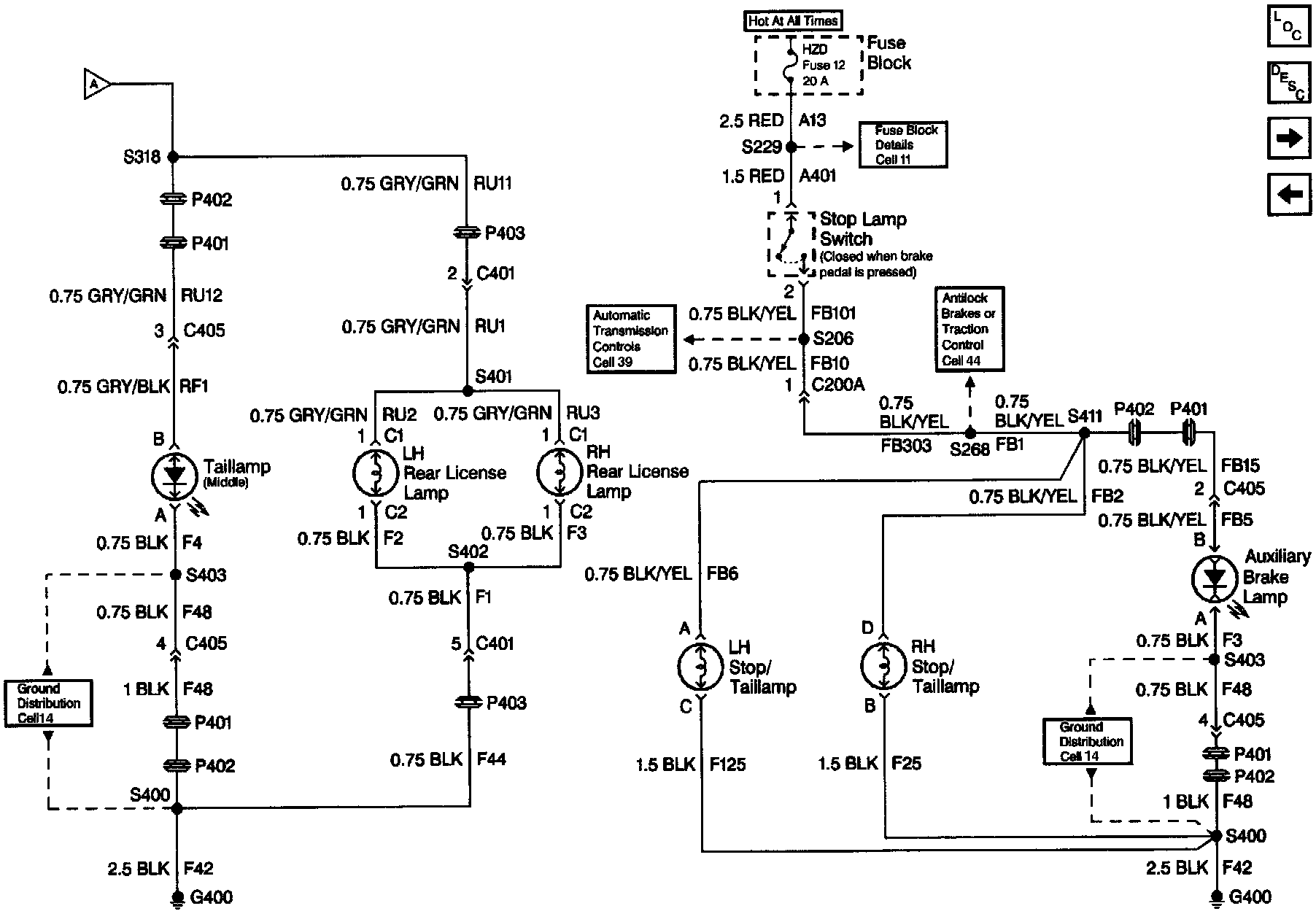

Exterior Lights Schematics: Stop LP Switch, Stop/Taillamps And Rear License LPS:

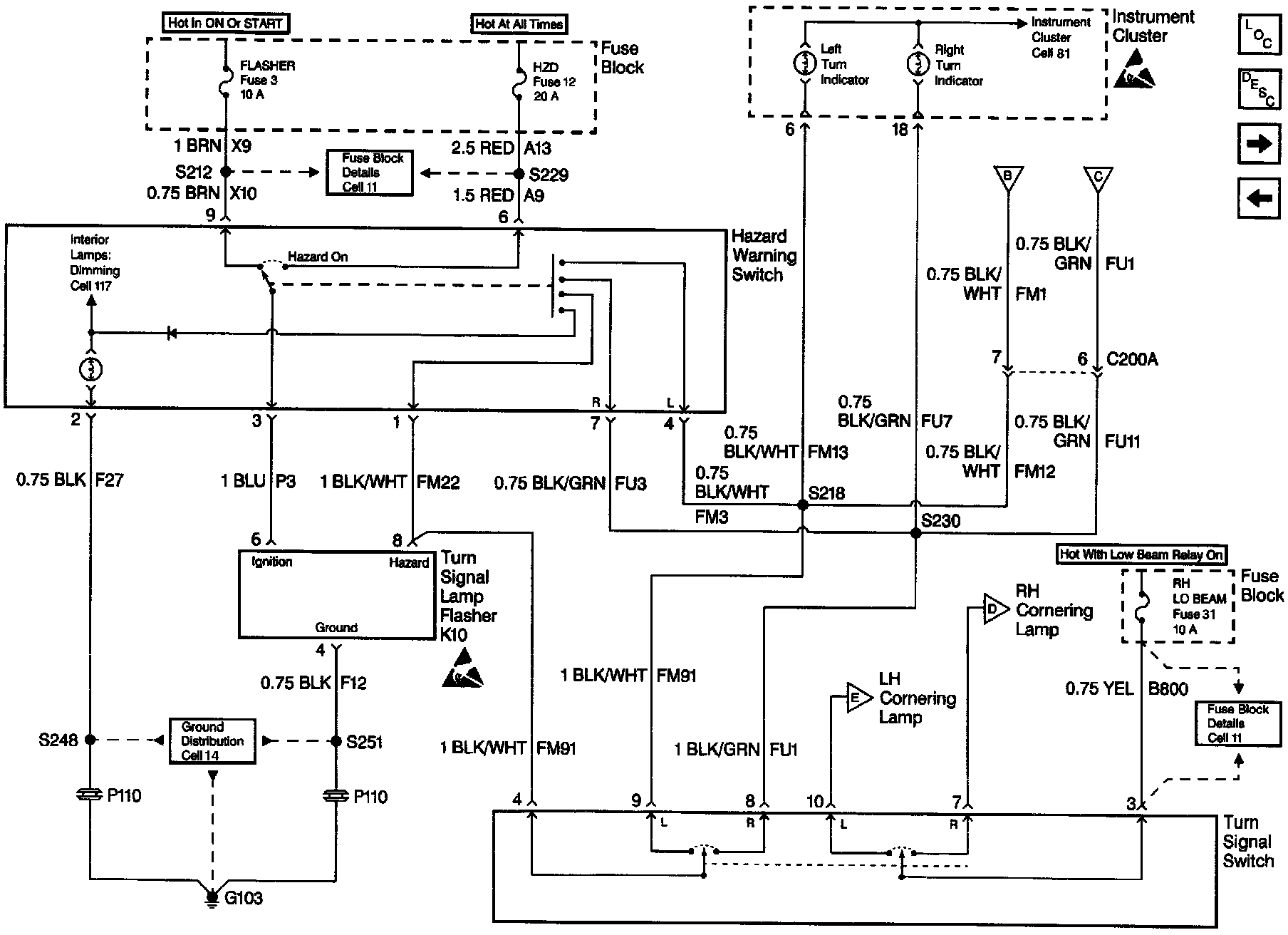

Exterior Lights Schematics: Hazard Warning Switch, Turn Signal Switch And Instrument Cluster:

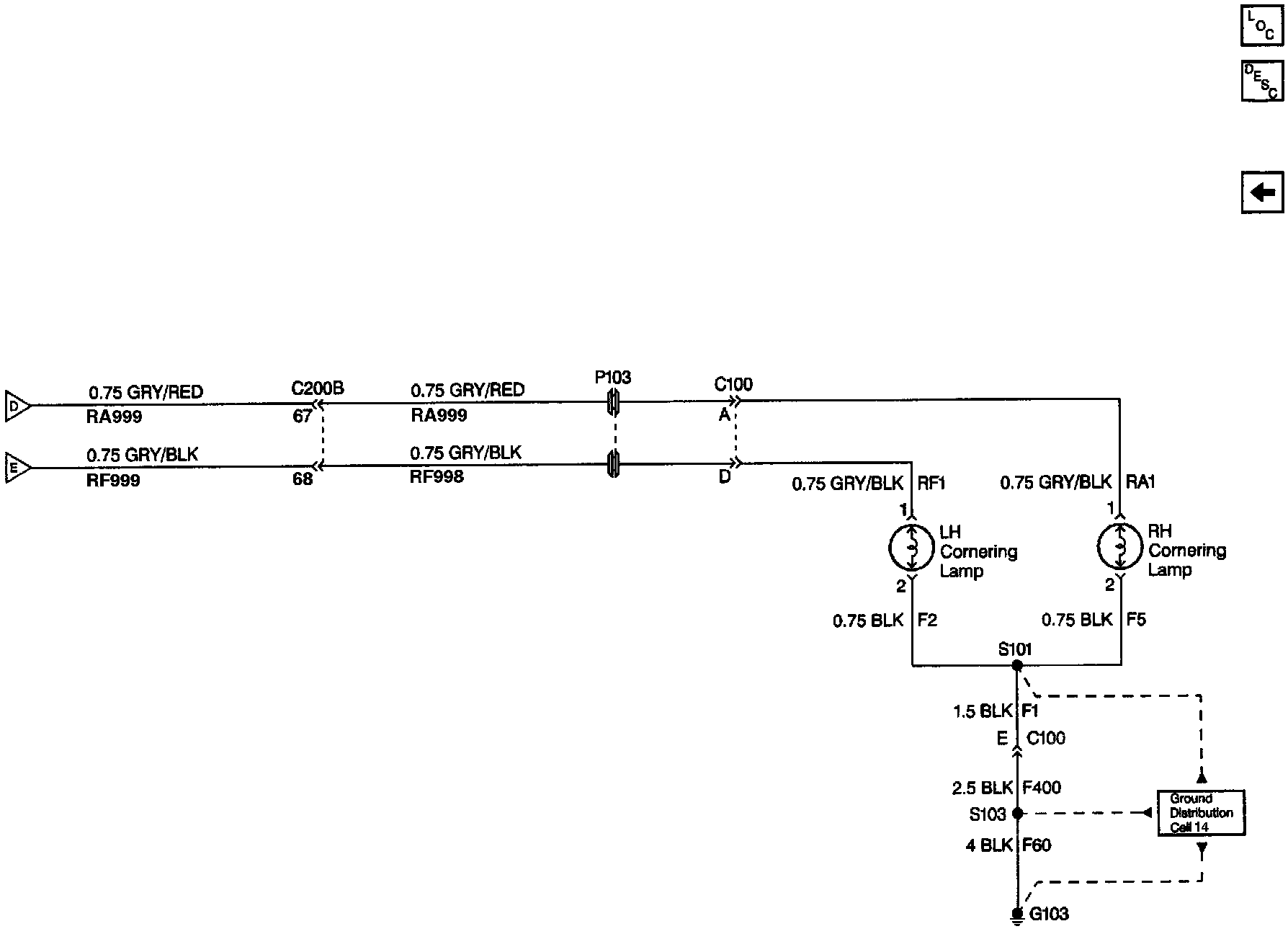

Exterior Lights Schematics: Cornering Lamps:
