Fog Lamps

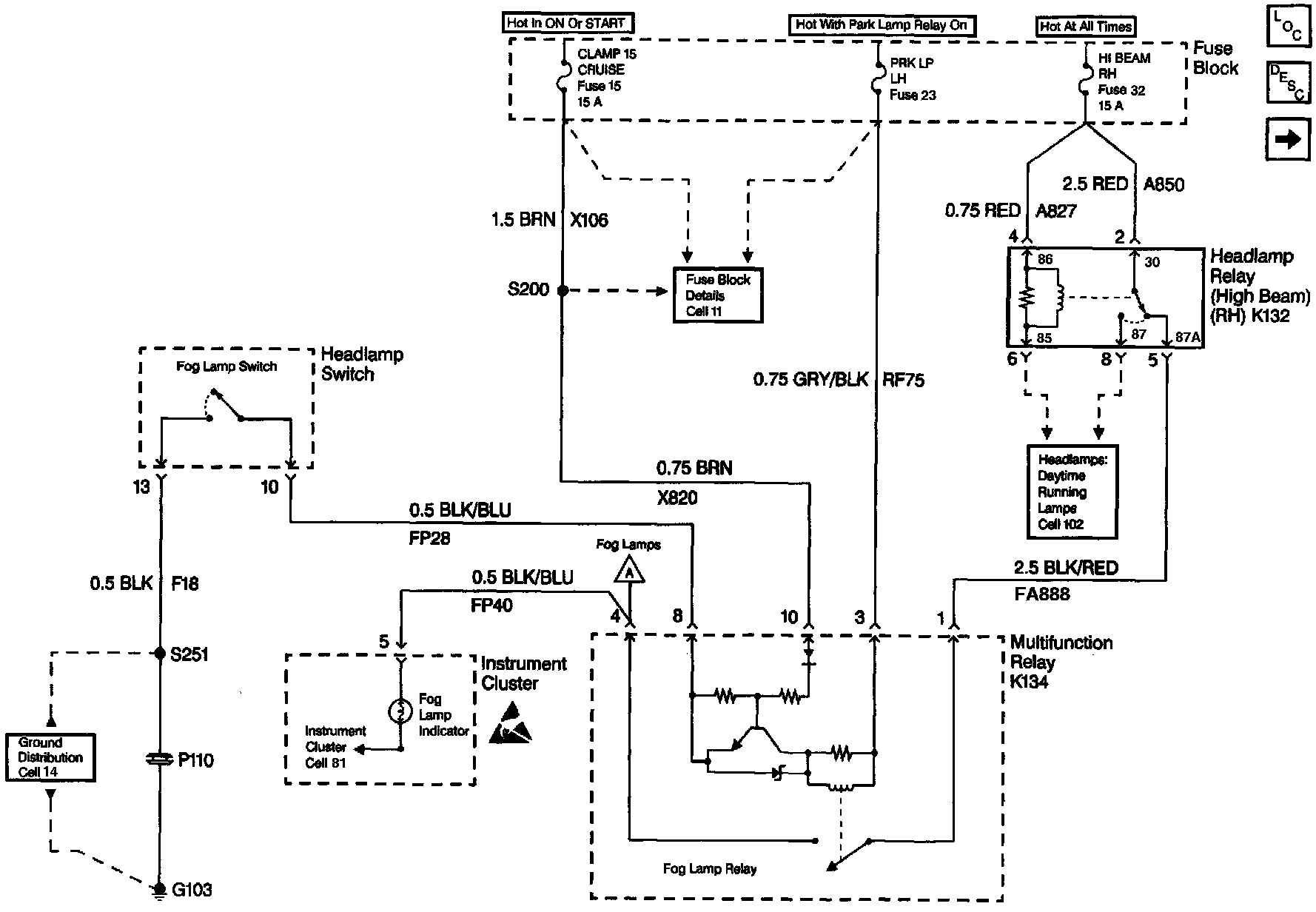

Fog Lights Schematics: Fog Lamp Switch And Multifunction Relay K134:

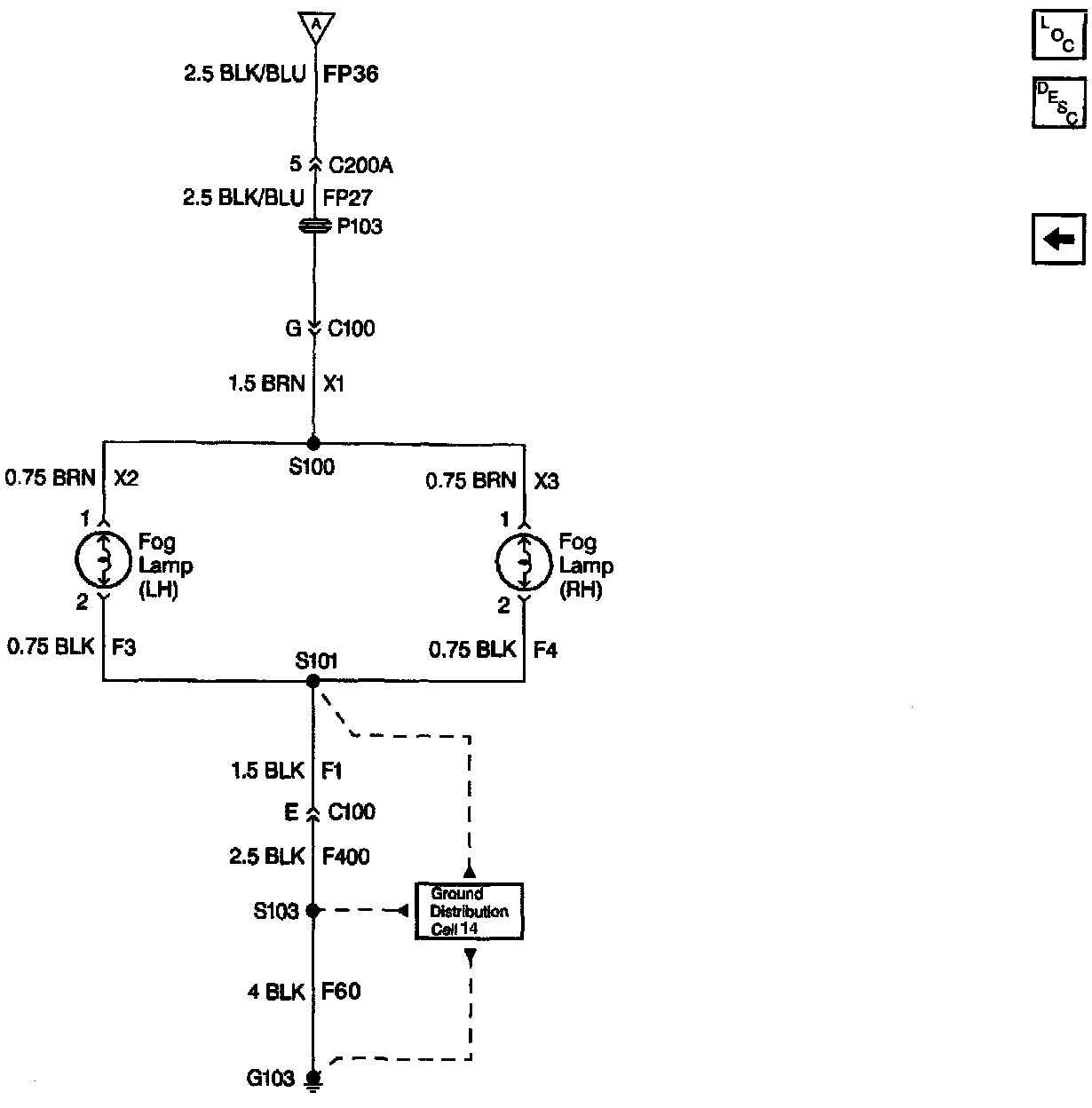

Fog Lights Schematics: LH And RH Fog Lamps:
