Headlights DRL Schematics

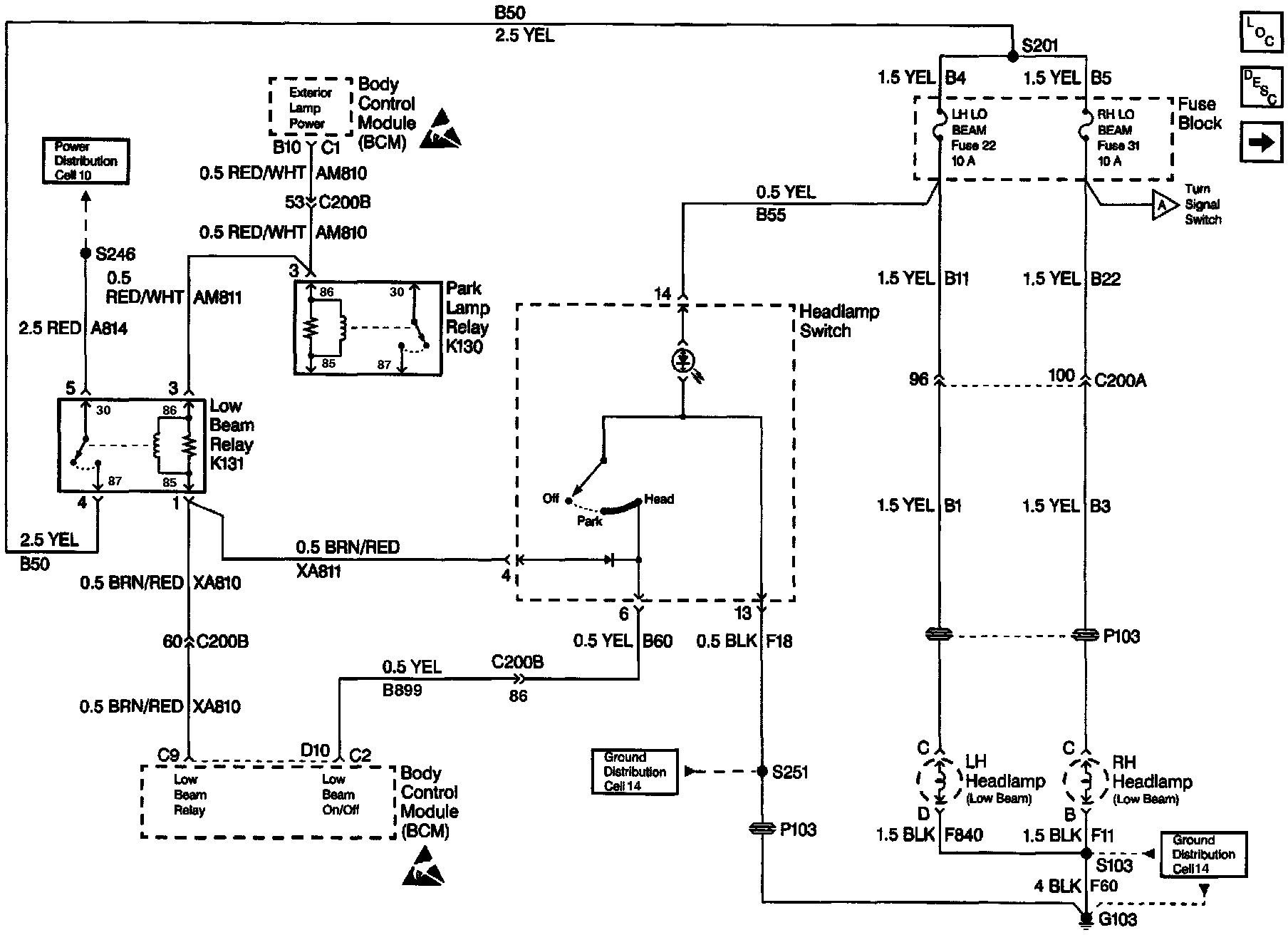

Headlights DRL Schematics: BCM, HDLP Switch, Park LP Relay K130 And Low Beam Relay K131:

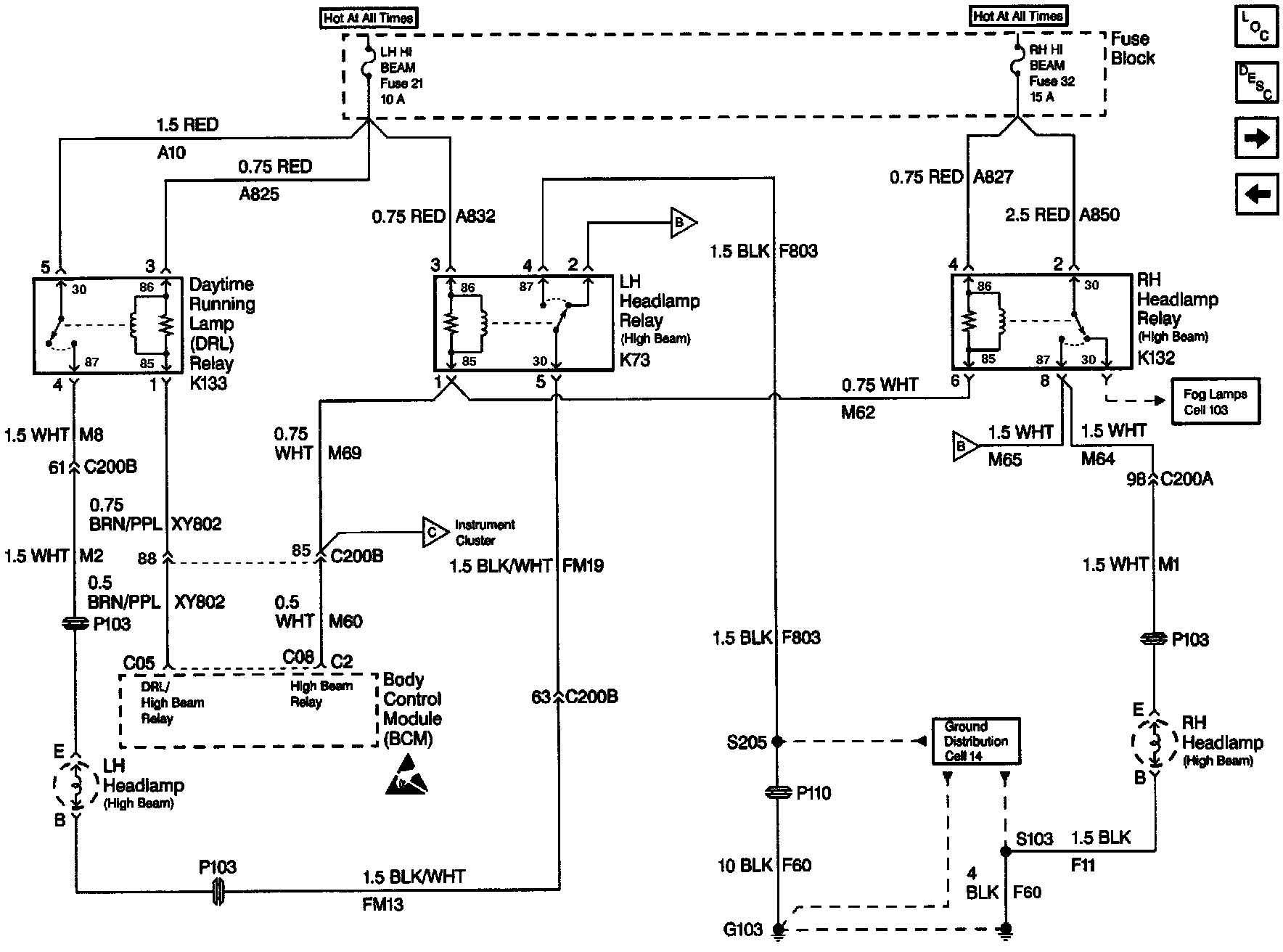

Headlights DRL Schematics: DRL Relay K133, LH And RH HI Beam HDLP Relays And BCM:




Headlights DRL Schematics: Turn Signal Switch, BCM And Instrument Cluster:

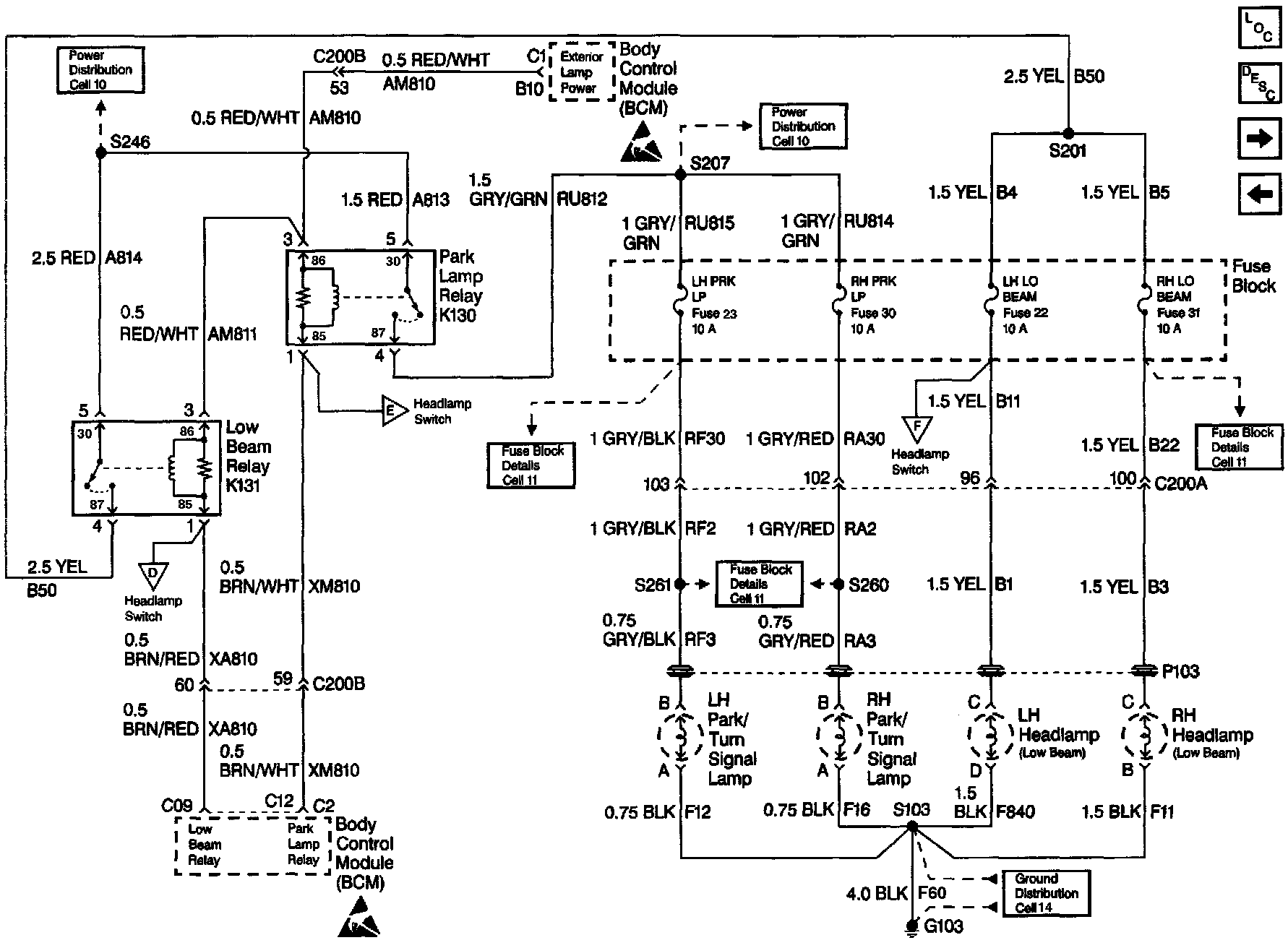

Headlights DRL Schematics: Fuse Block, BCM, HDLP And Park/Turn Signal LP:

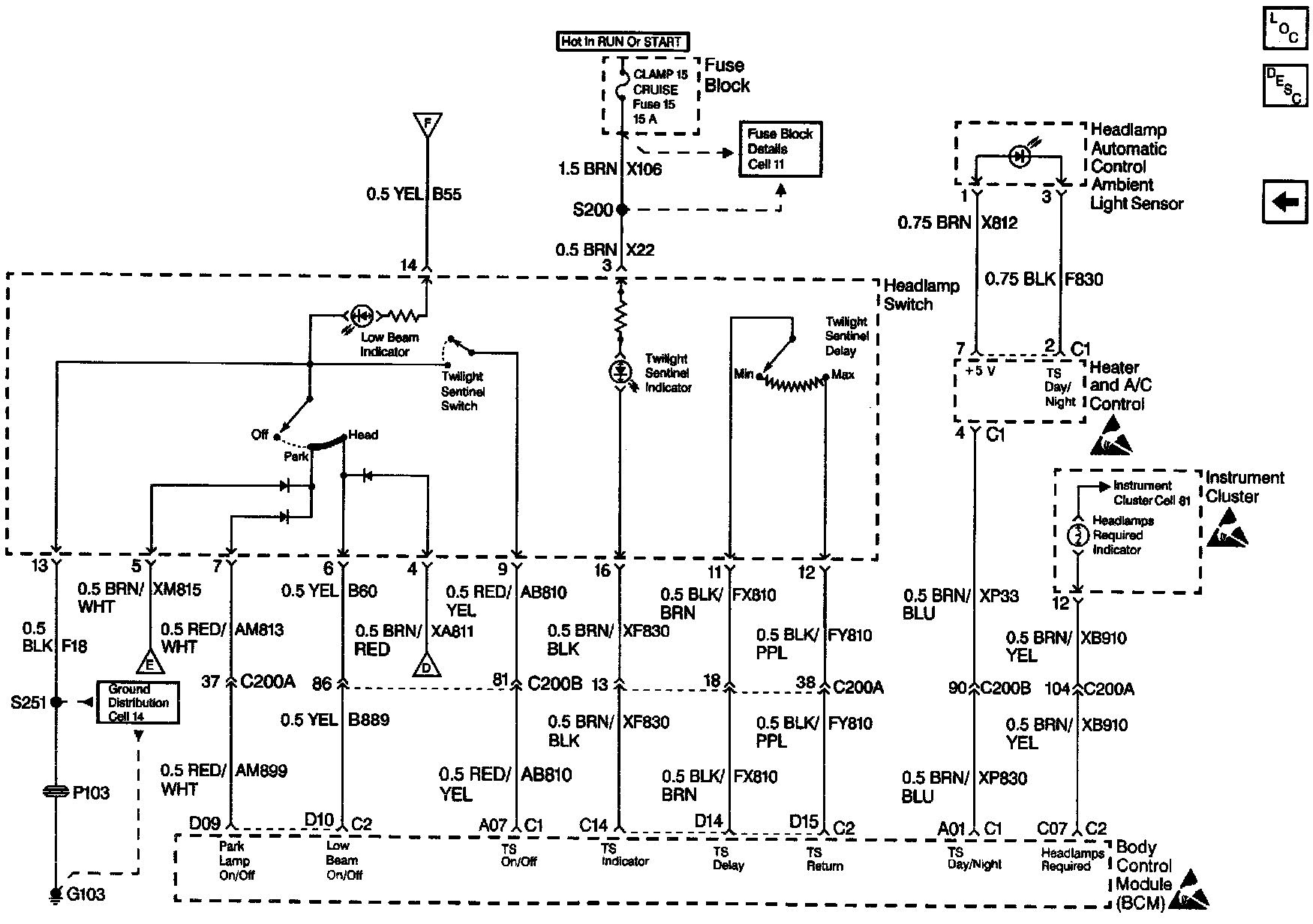

Headlights DRL Schematics: HDLP Switch, BCM, HTR And A/C Control, Instrument Cluster:
