Interior Lamps Dimming

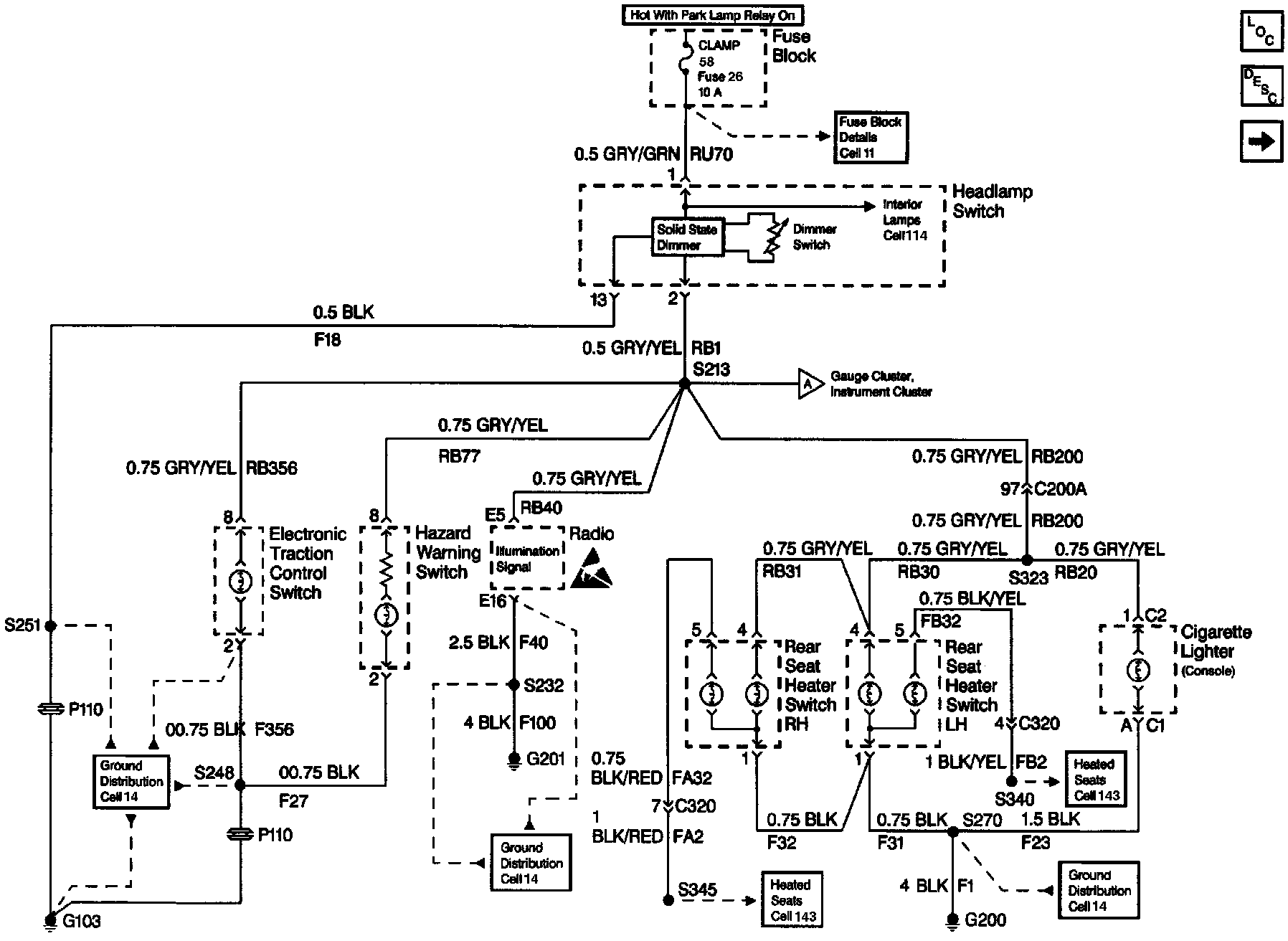

Interior Lights Dimming Schematics: HDLP Switch, Rear Seat HTR Switches And Radio:



Interior Lights Dimming Schematics: Instrument Cluster, HTR And A/C Control And Cigarette Lighter:
