License Plate Lamp: Service and Repair

REMOVAL PROCEDURE

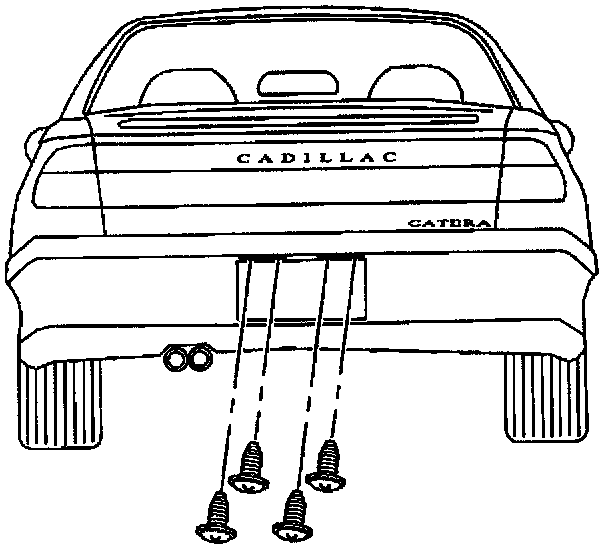

License Lamp Replacement: Removal Procedure:

1. Remove the rear license plate lamp screws from the rear fascia.
2. Remove the rear license plate lamp from the rear fascia.

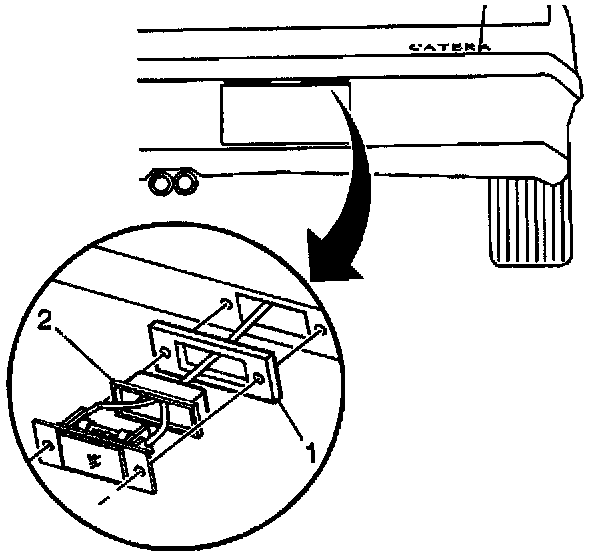

License Lamp Replacement: Removal Procedure:

3. Reposition the protective boot retaining plate (1).
4. Roll up the rubber protective boot to reveal the bulb (2).
5. Remove the bulb.

INSTALLATION PROCEDURE

License Lamp Replacement: Installation Procedure:

1. Install the bulb.
2. Unroll the rubber protective boot (2) over the bulb.
3. Use the retaining plate (1) to secure the boot.
4. Install the rear license plate lamp to the rear fascia.

License Lamp Replacement: Installation Procedure:

5. Install the rear license plate lamp screws.

Tighten
Tighten the rear license plate lamp screws until fully seated. Ensure not to strip the rear license plate lamp screws. Ensure not to Strip the plastic inserts.
