Home
>>
Cadillac
>>
1998
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
DLC, MIL, Ground & Power
DLC, MIL, Ground & Power

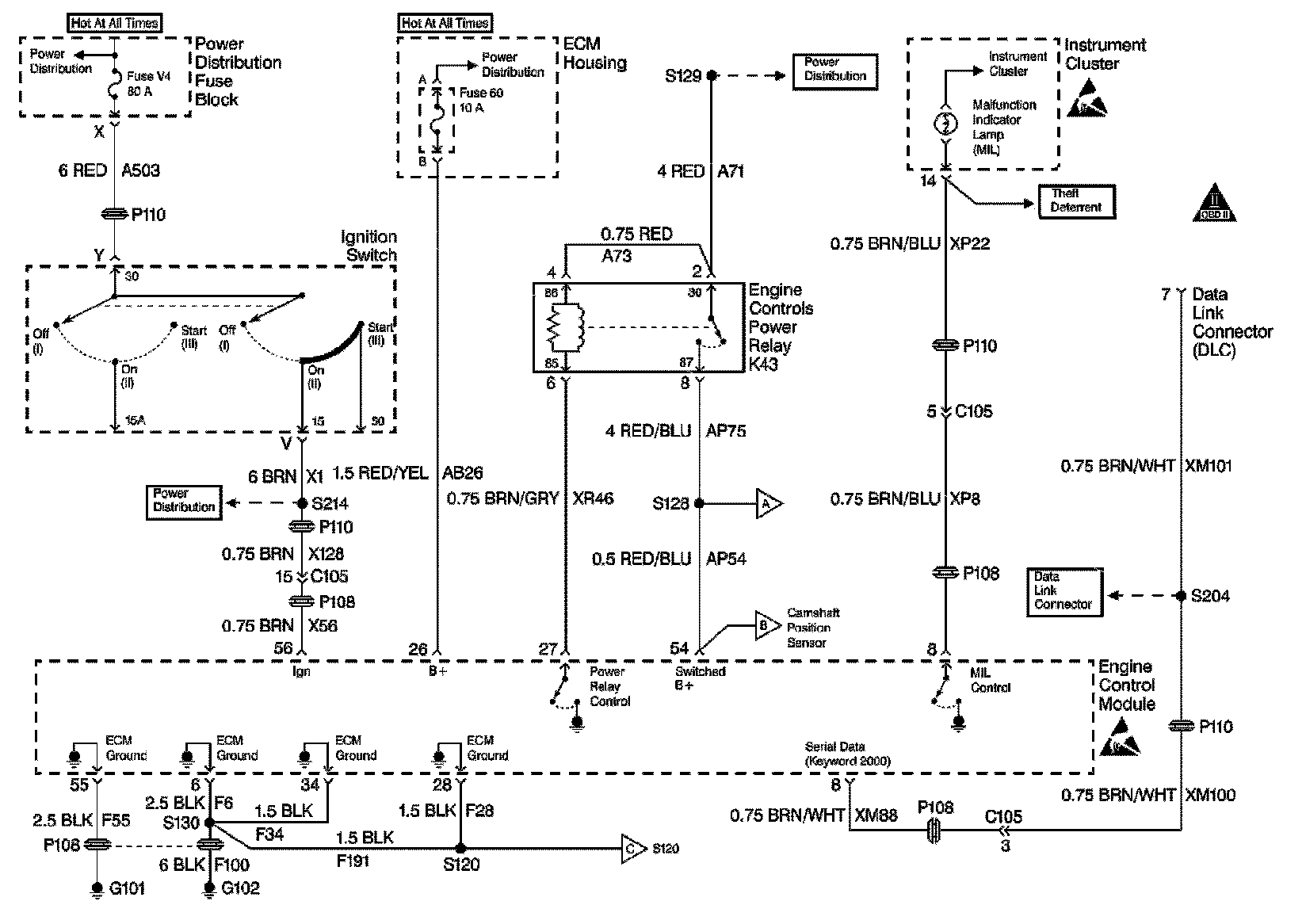

ENGINE CONTROLS SCHEMATICS
Power, Ground,
MIL
and
DLC
