Fuel Tank: Description and Operation

Fuel Tank

The fuel storage tank is made of high density polyethylene and is located behind the rear wheels. The fuel storage tank is held in place by two metal straps that are attached to the under body of the vehicle. The tank shape includes a sump in order to maintain a constant supply of fuel around the fuel pump strainer during low fuel conditions or during aggressive maneuvers.

The tank also contains a fuel vapor vent valve with a roll-over protection. The vent valve also features a two phase vent calibration which increases the fuel vapor flow to the canister when the operating temperatures increase the tank pressure beyond an established threshold.

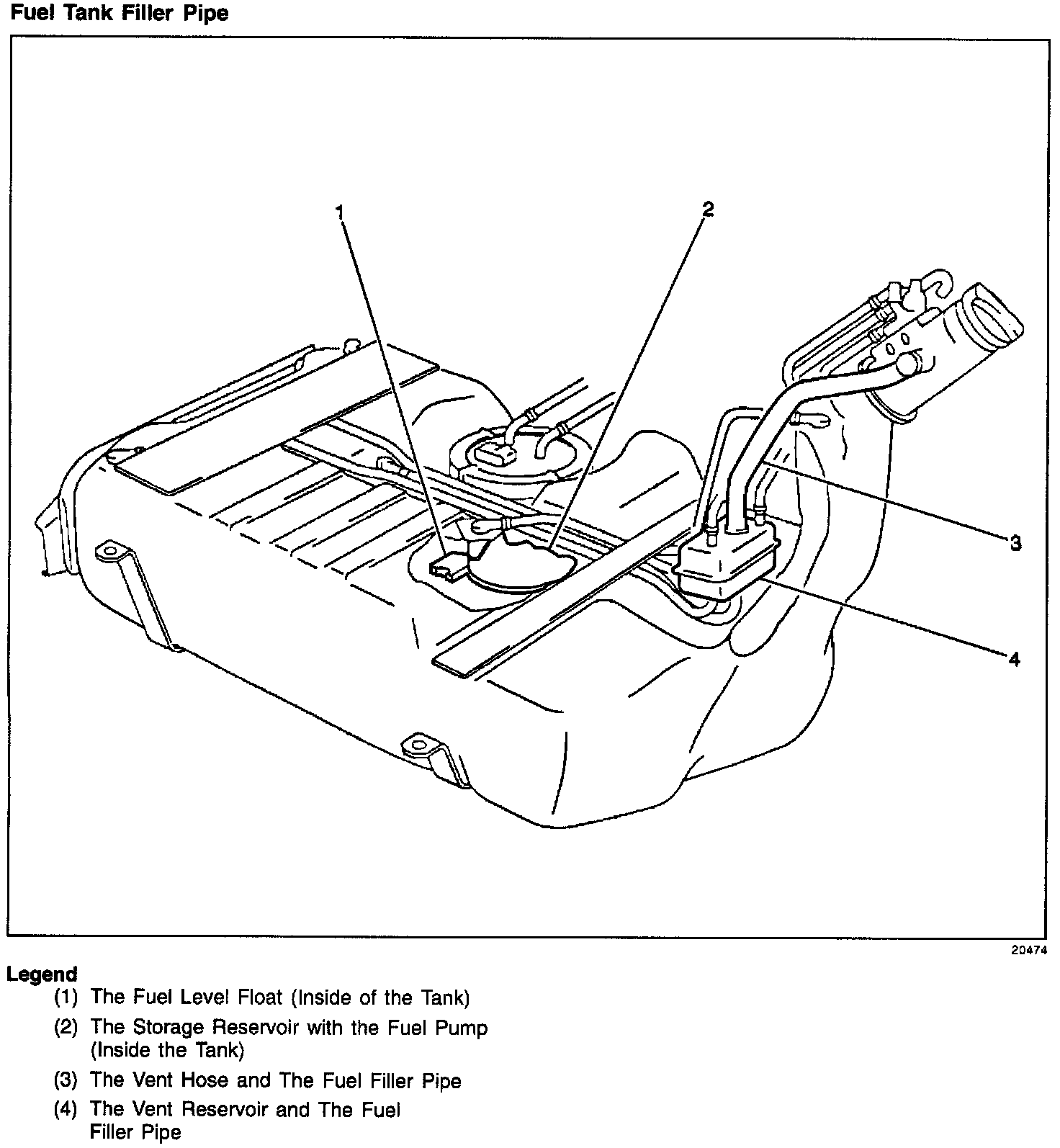

In order to help prevent any refueling with leaded fuel, the fuel tiller pipe has a built-in restrictor and a deflector. The opening in the restrictor will accept only the smaller unleaded gasoline fuel nozzle which must be fully inserted in order to bypass the deflector. The filler pipe is attached to the tank by a section of hose and two hose clamps. The tank is vented during filling by an internal vent tube inside of the filler pipe.
