Electrical Diagrams

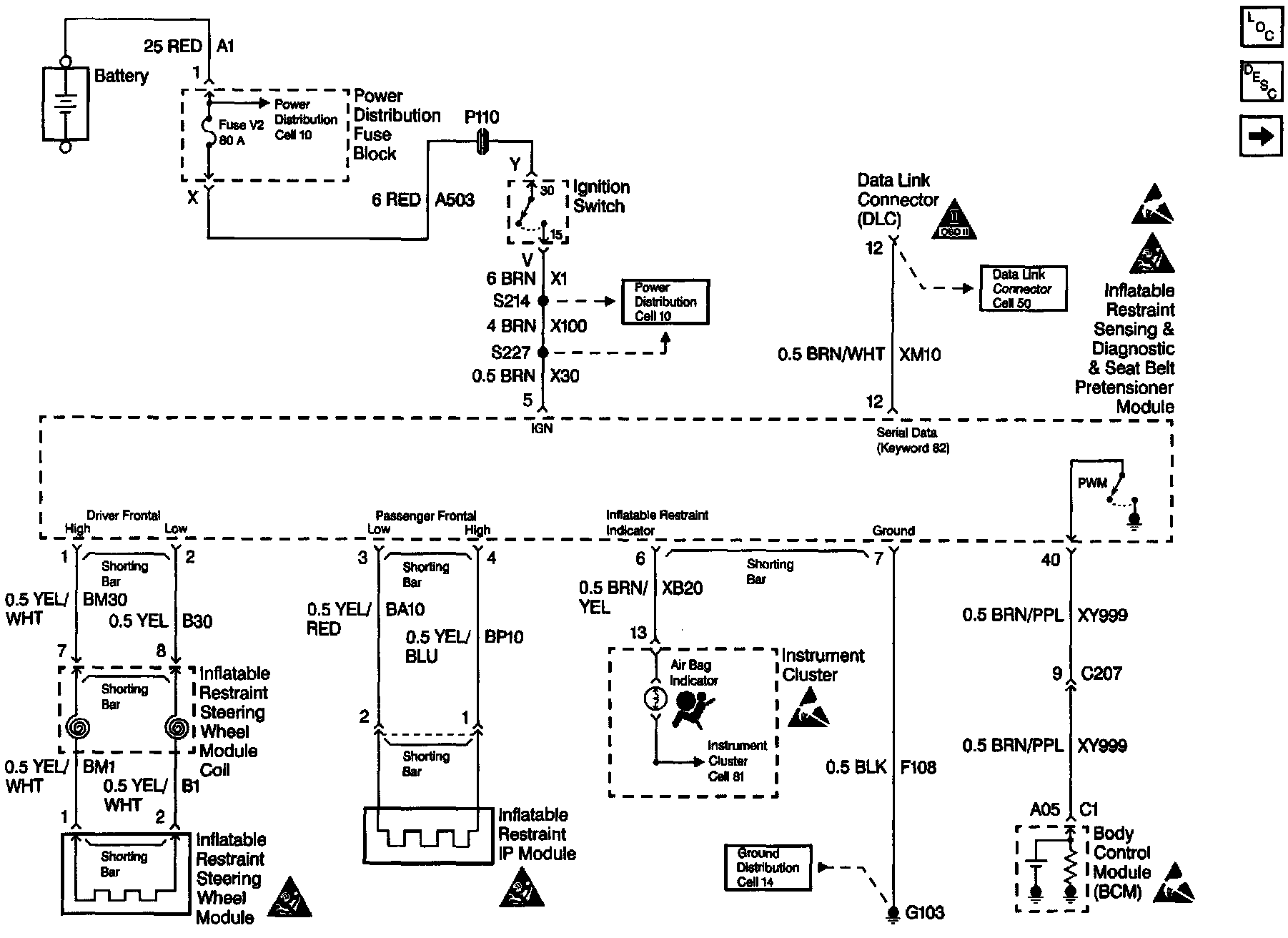

SIR Module Power And Ground, DLC And Instrument Cluster:



Pretensioners, Seat Modules, And Side Impact Sensors:
