On-Vehicle Service

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

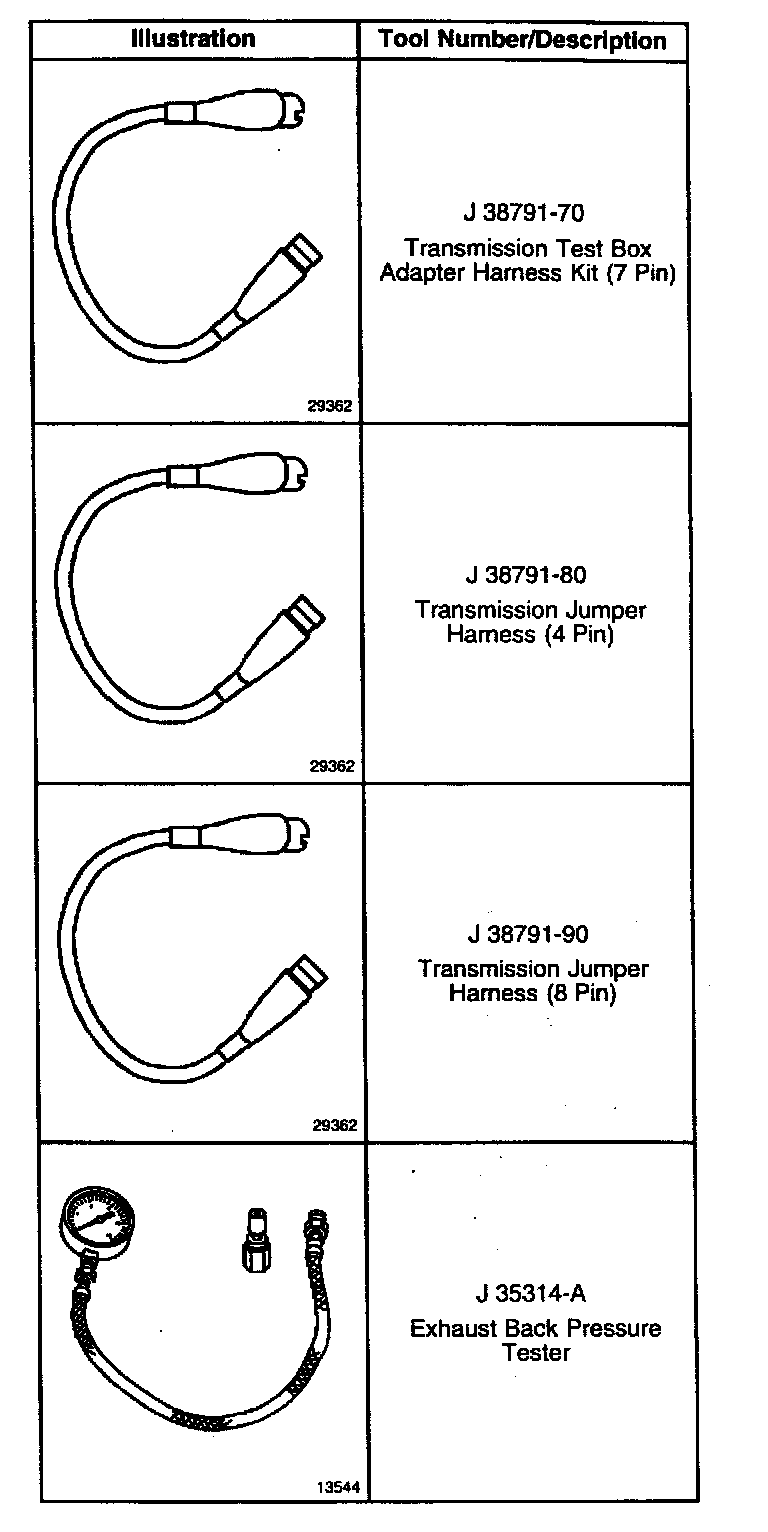

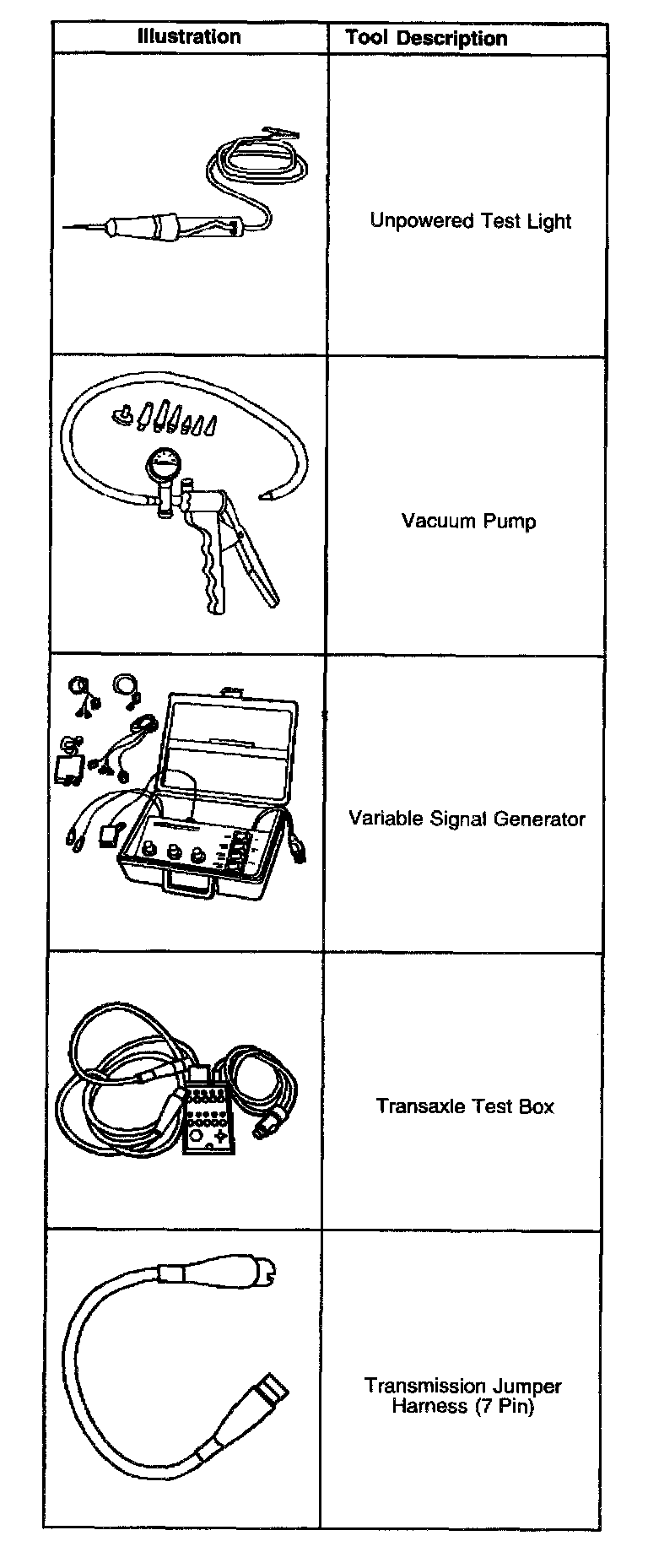

Not all of the tools listed require this specific application. If a procedure requires a special tool, the diagnostic procedure will call out the J number. Before you use any tool, first know the tool°s abilities and limitations. This knowledge should include the scan tool operation, the proper use of test lights, the jumper wires, and the DVM.

SCAN TOOL
For information regarding the use of a particular scan tool, refer to the documentation provided with the tool by the manufacturer. The General Information on the DLC connector, the Serial Data, and the System Diagnostics can be found in Transmission General Information and Engine Controls General Information.
