WSW Pump, WSW Nozzles and Gauge Cluster
WSW Pump, WSW Nozzles and Gauge Cluster

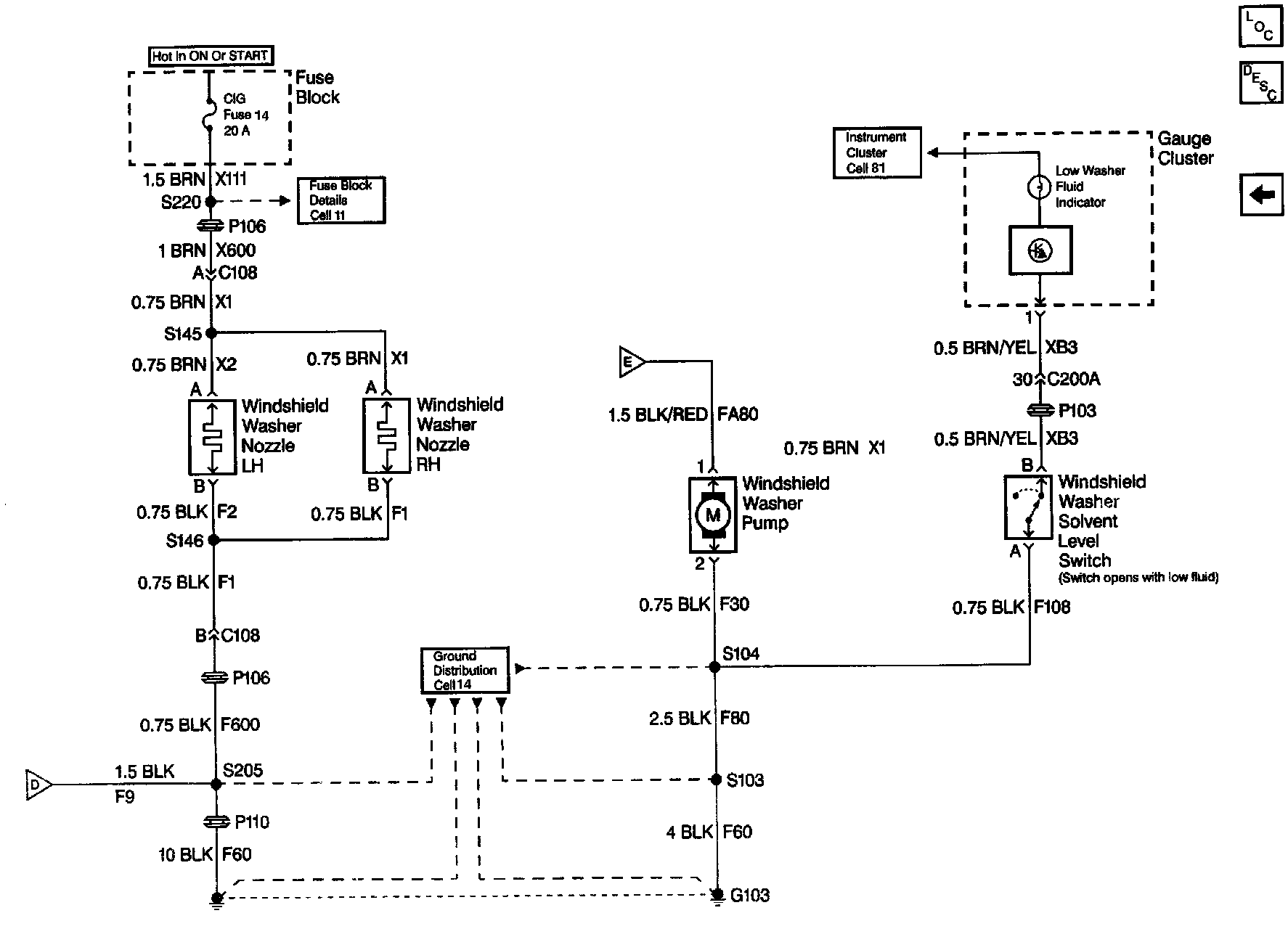

Wiper/Washer System (Pulse) Schematics: WSW Pump, WSW Nozzles And Gauge Cluster:
