Latch Replacement

REMOVAL PROCEDURE
1. Remove the console door.

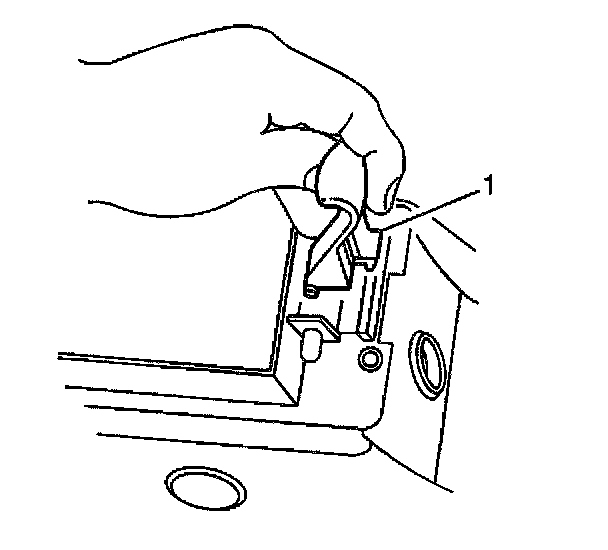

2. Lift the latch (1) upward in order to remove from the doorplate.

INSTALLATION PROCEDURE
1. Align the latch (1) to the door plate.

Push downward in order to to fasten the latch (1) to the door plate.
2. Install the console door.
