Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1999
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C420 (Deville Export)
C420 (Deville Export)

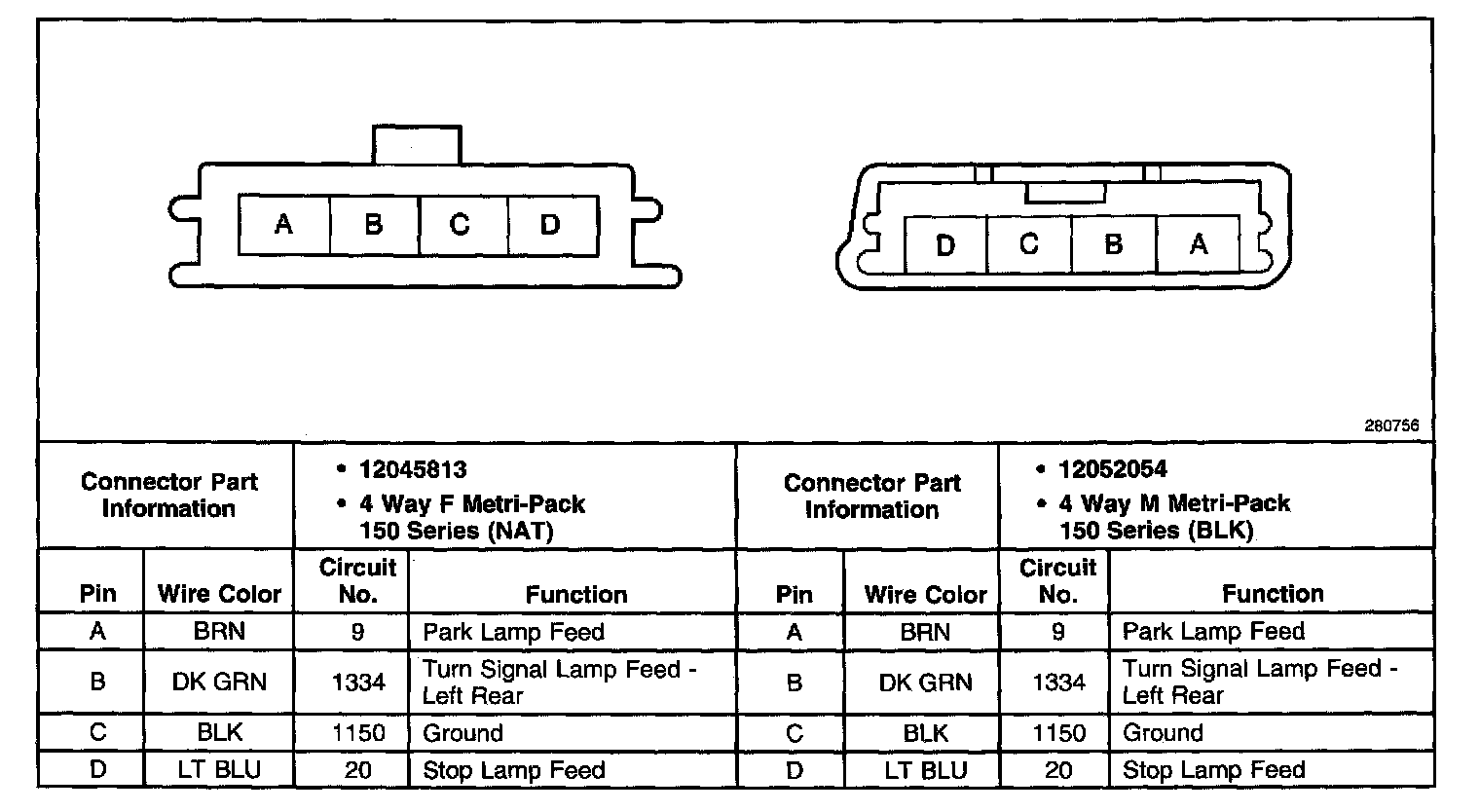

C420 (DeVille Export):
