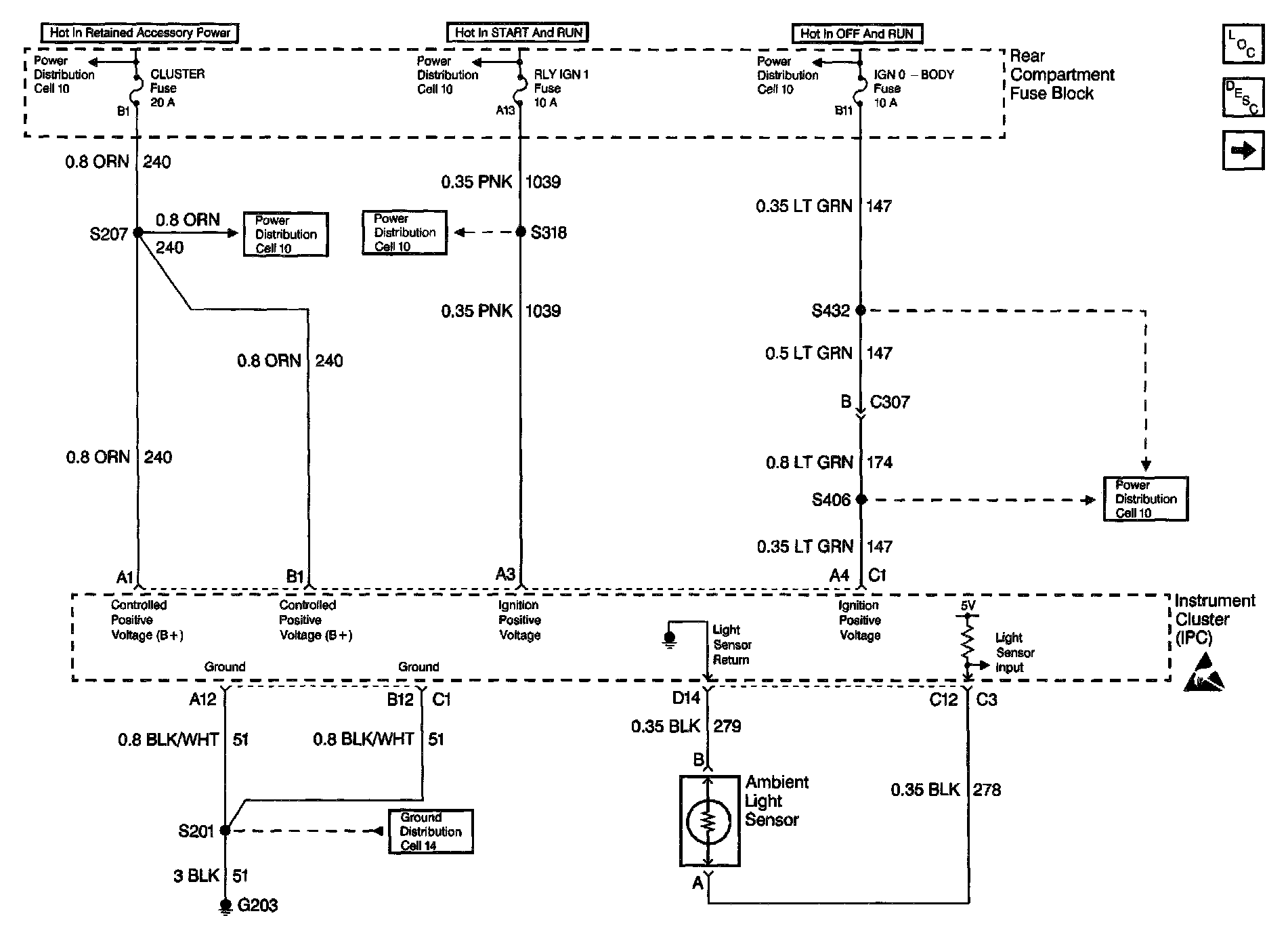

PWR, GND And Ambient Light Sensor

Interior Lights Dimming Schematics: PWR, GND And Ambient Light Sensor:
