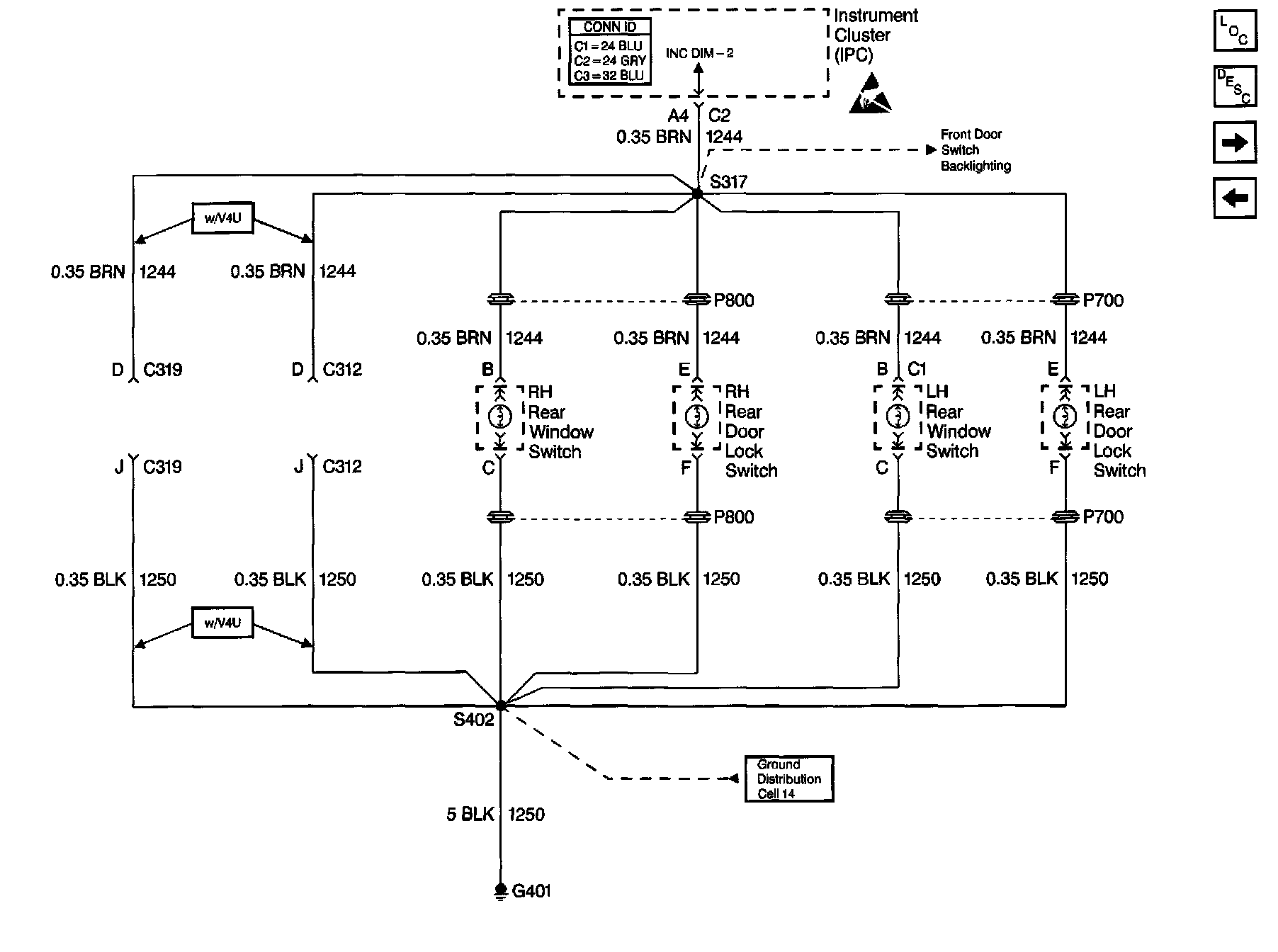

Rear Door Backlighting - Deville

Interior Lights Dimming Schematics: Rear Door Backlighting - DeVille:
