Radio/Stereo: Service and Repair

Radio Replacement

REMOVAL PROCEDURE




1. Remove the console.
2. Remove the I/P accessory trim plate.
4. Begin to remove the radio control from the center support bracket enough to access the connectors at rear of the radio control.




5. Disconnect the electrical/audio and coaxial cable connectors from the radio control.




6. Remove the radio control.

INSTALLATION PROCEDURE




1. Connect the electrical/audio and coaxial cable connectors to the radio control.

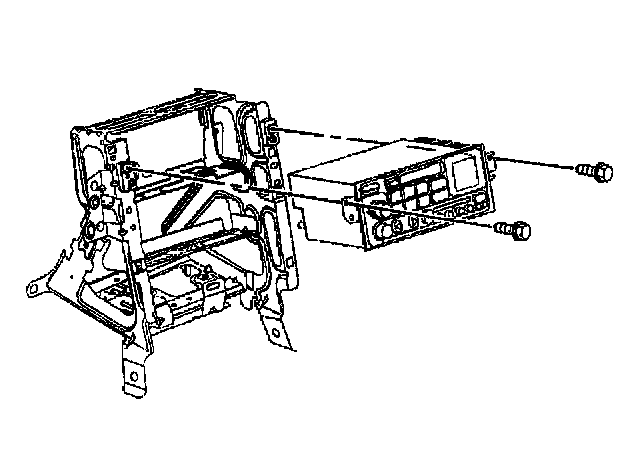

2. Install the radio control into position in the I/P center support bracket.
Align the radio control locator tab into the center support bracket locator hole.




3. Install the radio control retaining screws.

Tighten
Tighten the radio control retaining screws to 2.5 N.m (22 lb in).

4. Install the I/P accessory trim plate.
5. Install the console.
