Mirror Face Replacement

REMOVAL PROCEDURE

CAUTION: When working with any type of glass, use approved safety glasses and gloves to reduce the chance of personal injury.

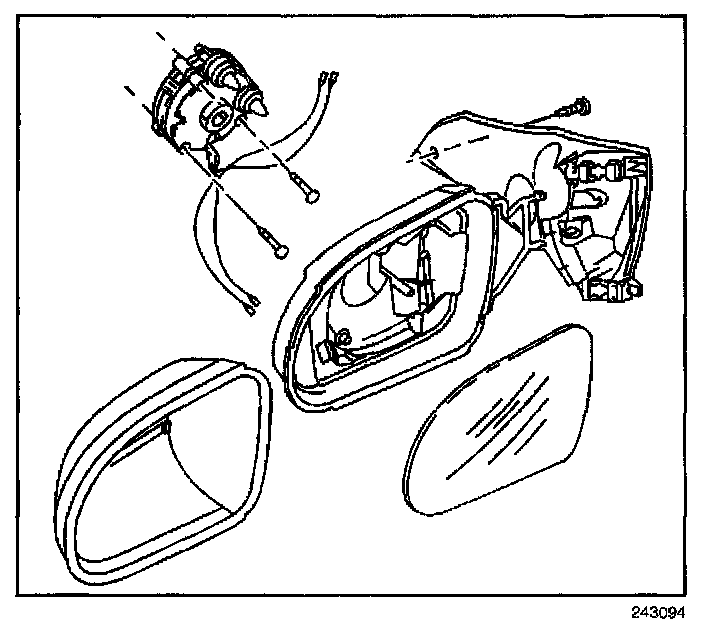

1. Remove the outside rearview mirror lens:
^ Tilt the lens inward while pulling out.
^ Disengage the adjuster arms from the motor.
2. Disconnect the mirror electrical connectors.

INSTALLATION PROCEDURE




1. Connect the mirror electrical connectors.
2. Install the mirror lens:
^ Engage the adjuster arms to the motor).
^ Align the mirror lens inboard while pulling the adjuster arms into place.
