Mirror Replacement - Power Mirror

REMOVAL PROCEDURE




1. Remove the front door panel.
2. Remove the mirror screws.
3. Remove the mirror from the door.

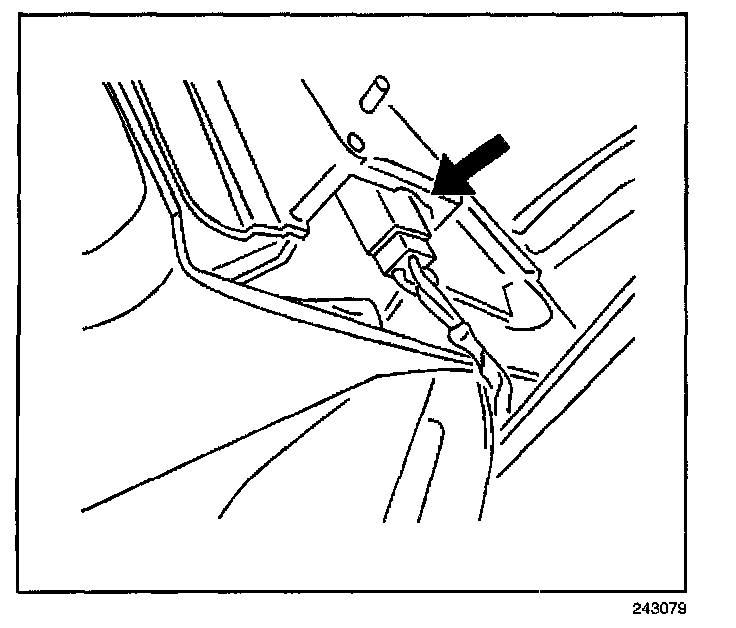

4. Disconnect the outside rearview mirror electrical connector.

INSTALLATION PROCEDURE




1. Connect the mirror electrical connector.




2. Install the mirror to the door.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the mirror screws.

Tighten
Tighten the mirror screws to 10 N.m (89 lb in).

4. Install the front door panel.
