Home
>>
Cadillac
>>
2000
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>

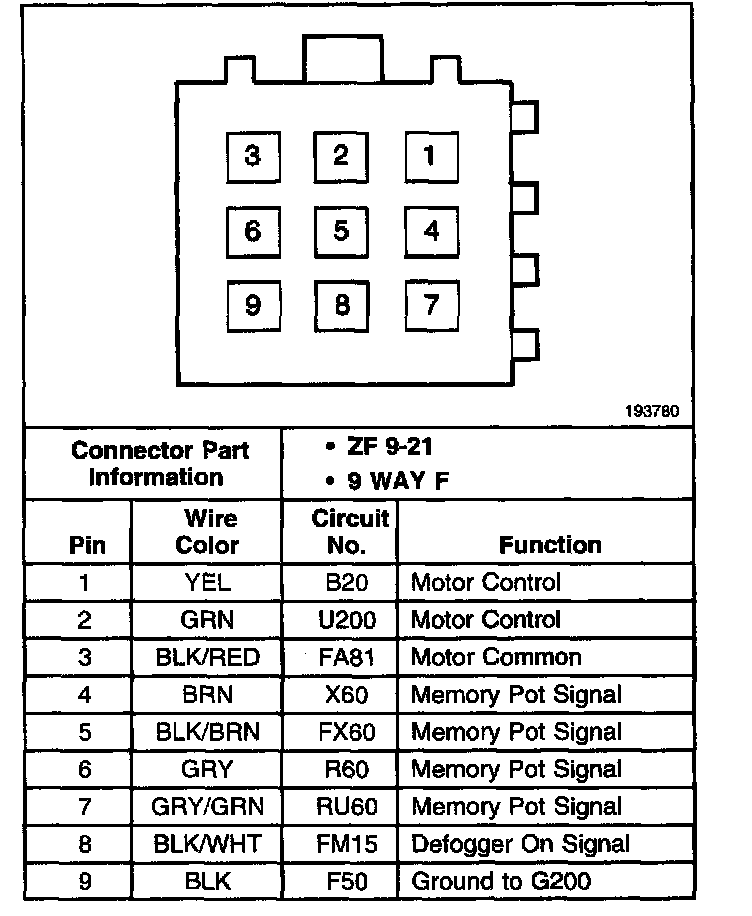

LH Outside Rear View Mirror (With Memory)
LH Outside Rear View Mirror (With Memory)
LH Outside Rear View Mirror (With Memory):
