Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Actuator >> LH Rear Side Door Lock Actuator

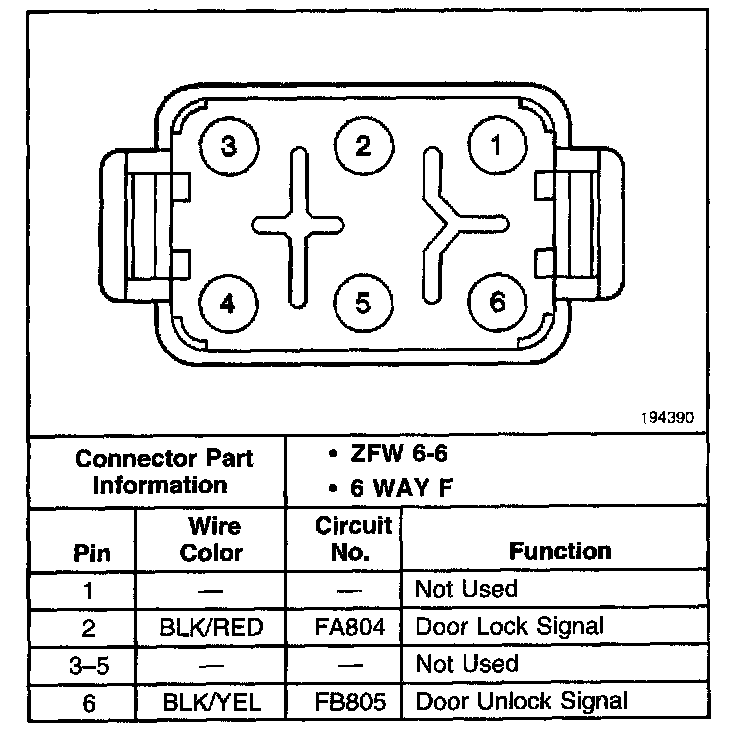

LH Rear Side Door Lock Actuator

LH Rear Side Door Lock Actuator:
