Filler DR, Rear COMP Lid & AUTO TRANS Shift Lock CNTRL SW

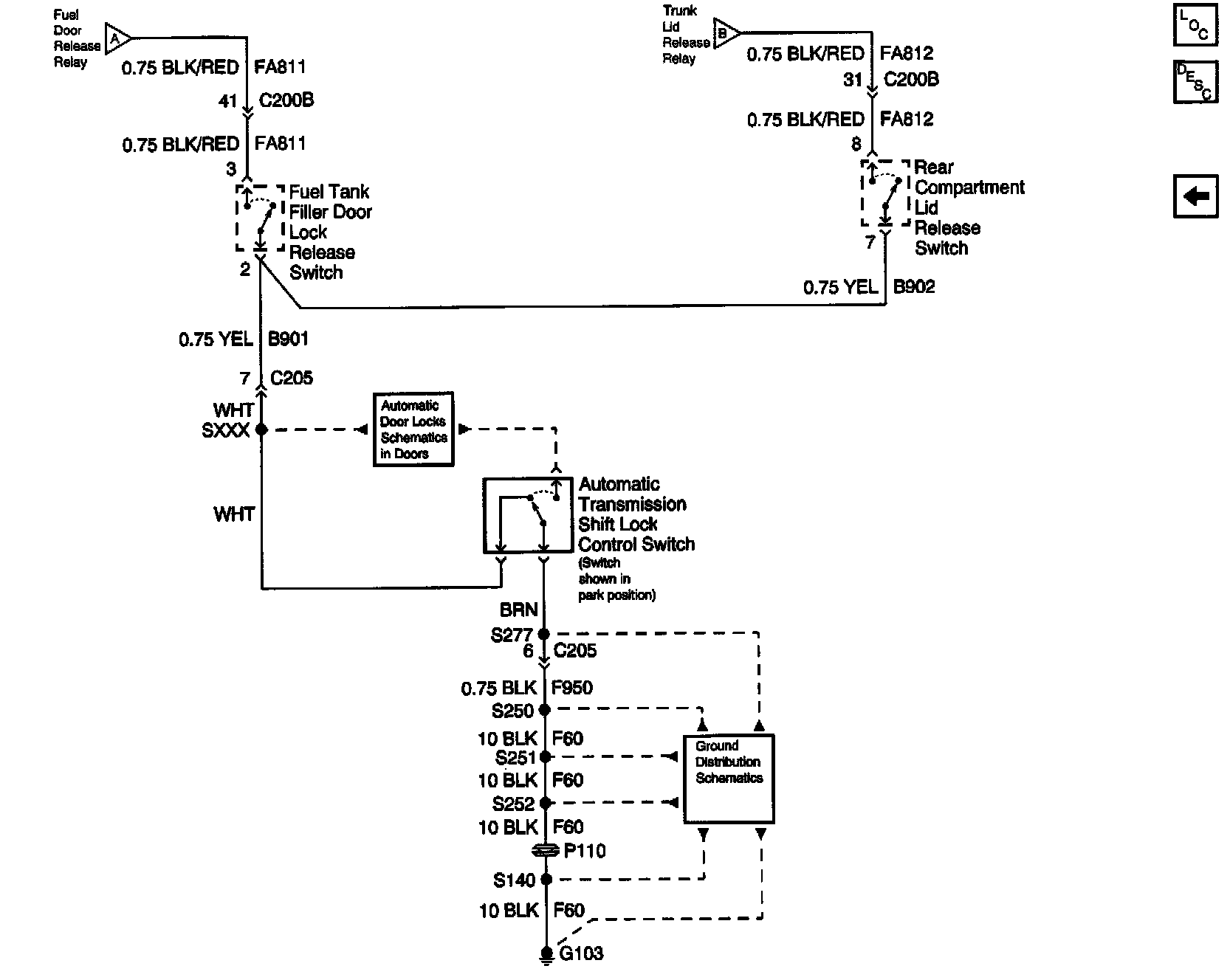

Release System Schematics: Fuel Tank Filler Door, Rear Compartment Lid And Automatic Transmission Shift Lock Control Switch:
