ENG Oil PRESS Gauge Always LO (Warning Off W/Low Oil Pressure)
ENG Oil PRESS Gauge Always LO (Warning Off W/Low Oil Pressure)

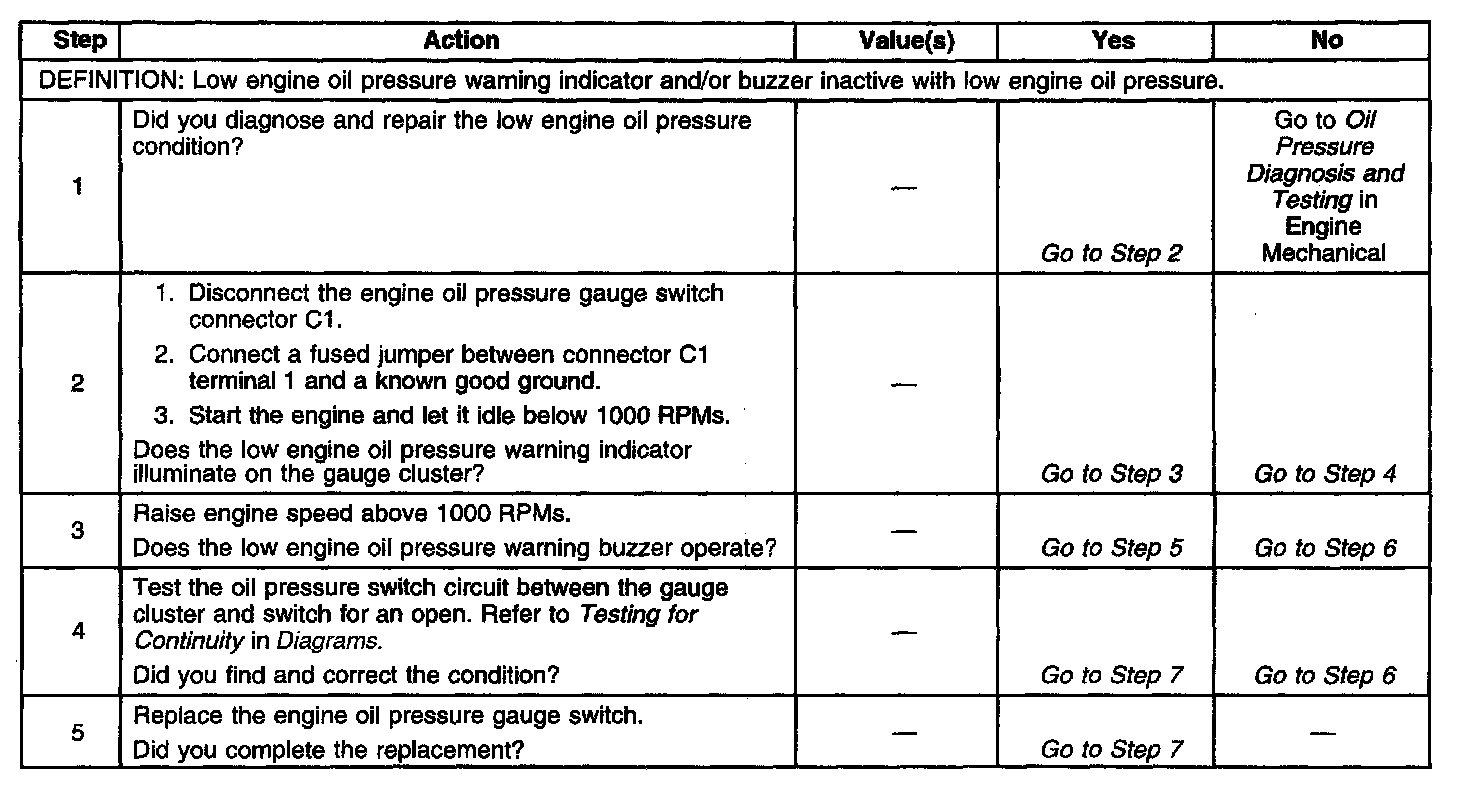

Diagnostic Chart (Part 1 Of 2):

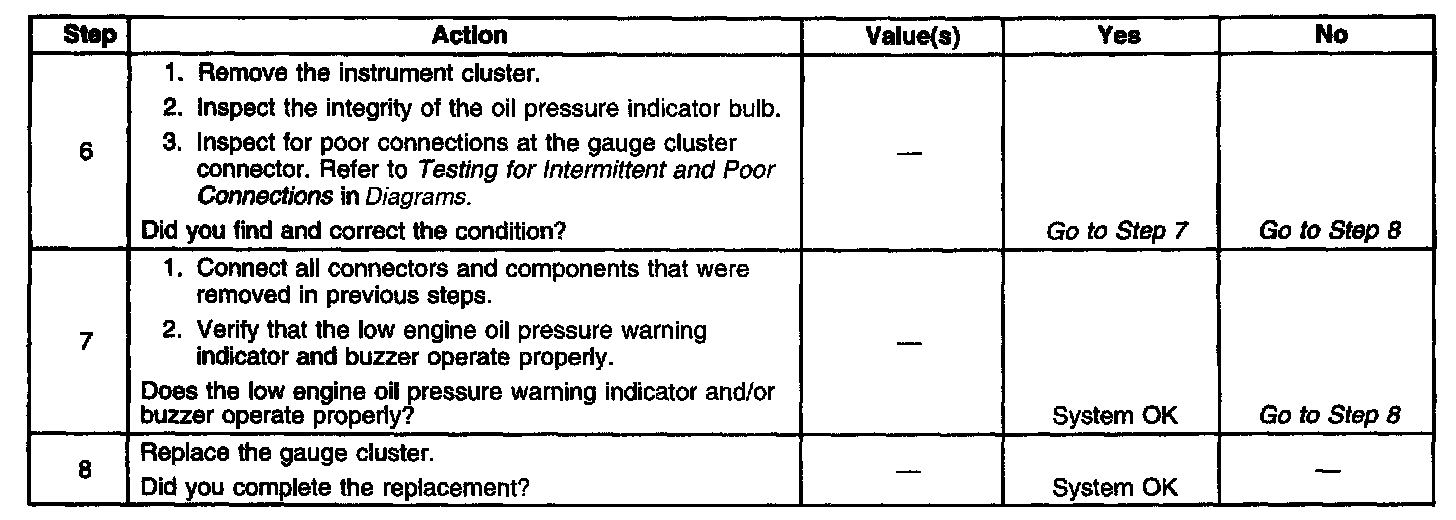

Diagnostic Chart (Part 2 Of 2):
