HDLP SW, PK LP Relay K130, LO Beam Relay K131 and LO Beam HDLPs
HDLP SW, PK LP Relay K130, LO Beam Relay K131 and LO Beam HDLPs

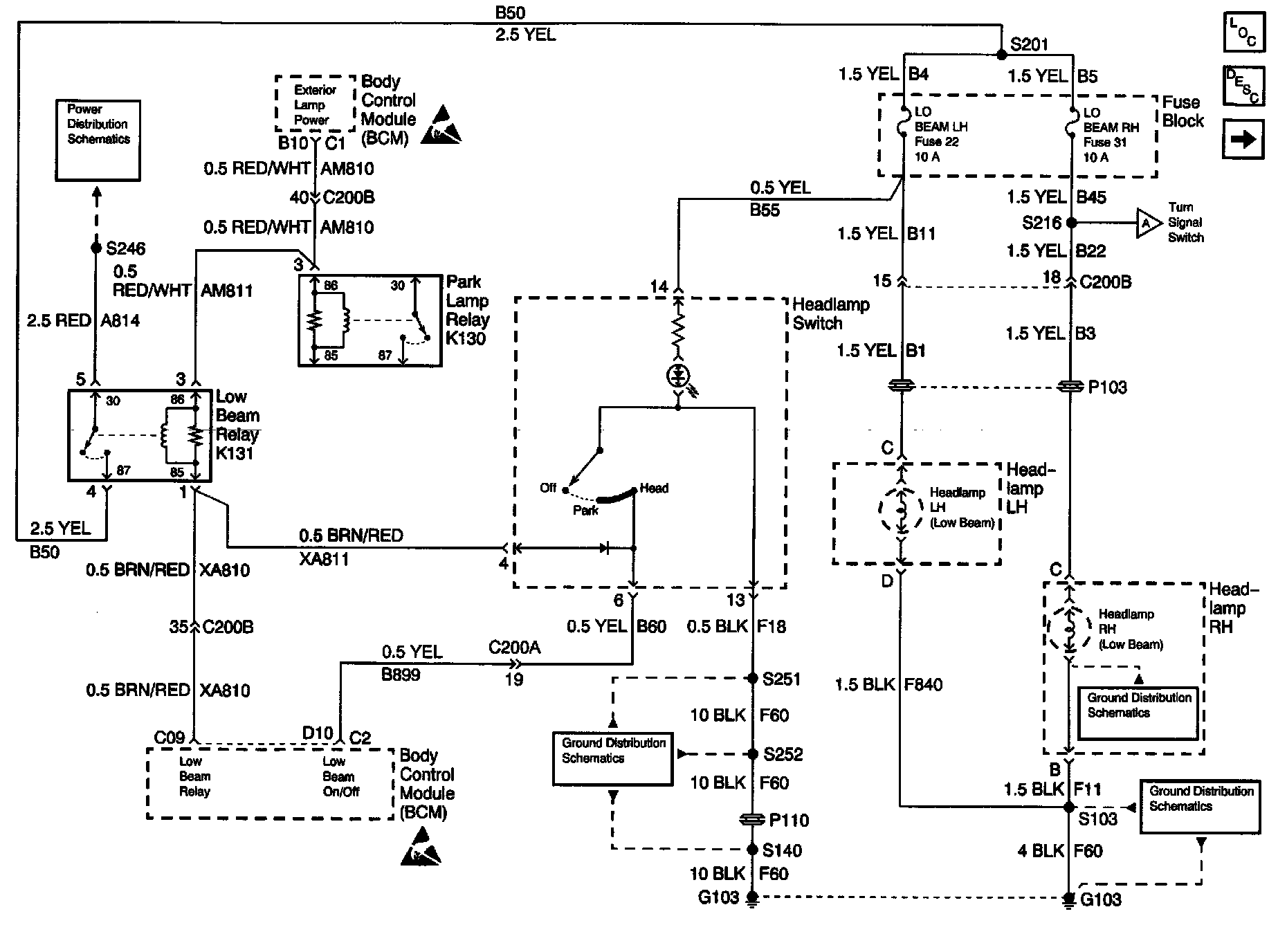

Headlights/Daytime Running Lights (DRL) Schematics: Headlamp Switch, Park Lamp Relay K130, Low Beam Relay K131 And Low Beam Headlamps:
