Drive Pinion Assemble

Drive Pinion Outer Bearing
Installation Procedure

^ Tools Required
- J 42147 Outer Pinion Bearing Race Installer
- J 42176 Driver Handle

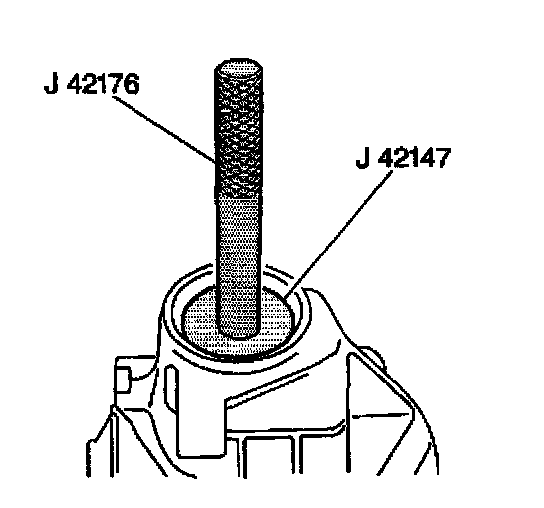

1. Install the differential drive pinion gear outer bearing outer race to the housing using the J 42147, J 42176 and a deadblow hammer or press.

Important: Lubricate the differential drive pinion gear outer bearing with rear axle lubricant prior to installation.

2. Install the differential drive pinion gear outer bearing into the housing.
3. Install the pinion seal.
