Drive Pinion Outer Bearing

Removal Procedure

^ Tools Required
- J 42176 Drive Handle
- J 42147 Outer Race Installer/Driver
- J 42154 Inner Race Remover/Driver





1. Remove the differential drive pinion gear outer bearing from the housing.

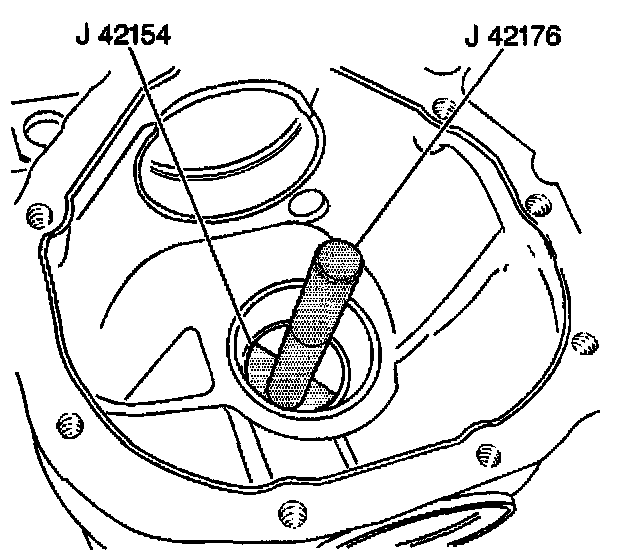

2. Use the J 42154 and the J 42176 with a deadblow hammer or a press to remove the bearing.
