DTC 003

DTC 003


Circuit Description
The Automatic Level Control Sensor monitors the battery voltage for a continuously high voltage or low voltage condition.

Conditions for Running the DTC
The ignition is on.

Conditions for Setting the DTC
The Automatic Level Control sensor detects a continuously high battery voltage above 16.0 V or a continuously low voltage below 9.0 V.

Action Taken When the DTC Sets
This code will not cause the LEVELING indicator lamp to flash.
The function of the ALC system will be disabled.

Conditions for Clearing the DTC
The DTC will clear when battery voltage returns to its normal range.

Diagnostic Aids
^ Inspect for the addition of any aftermarket components.
^ Inspect all wiring for intermittent and poor connections.

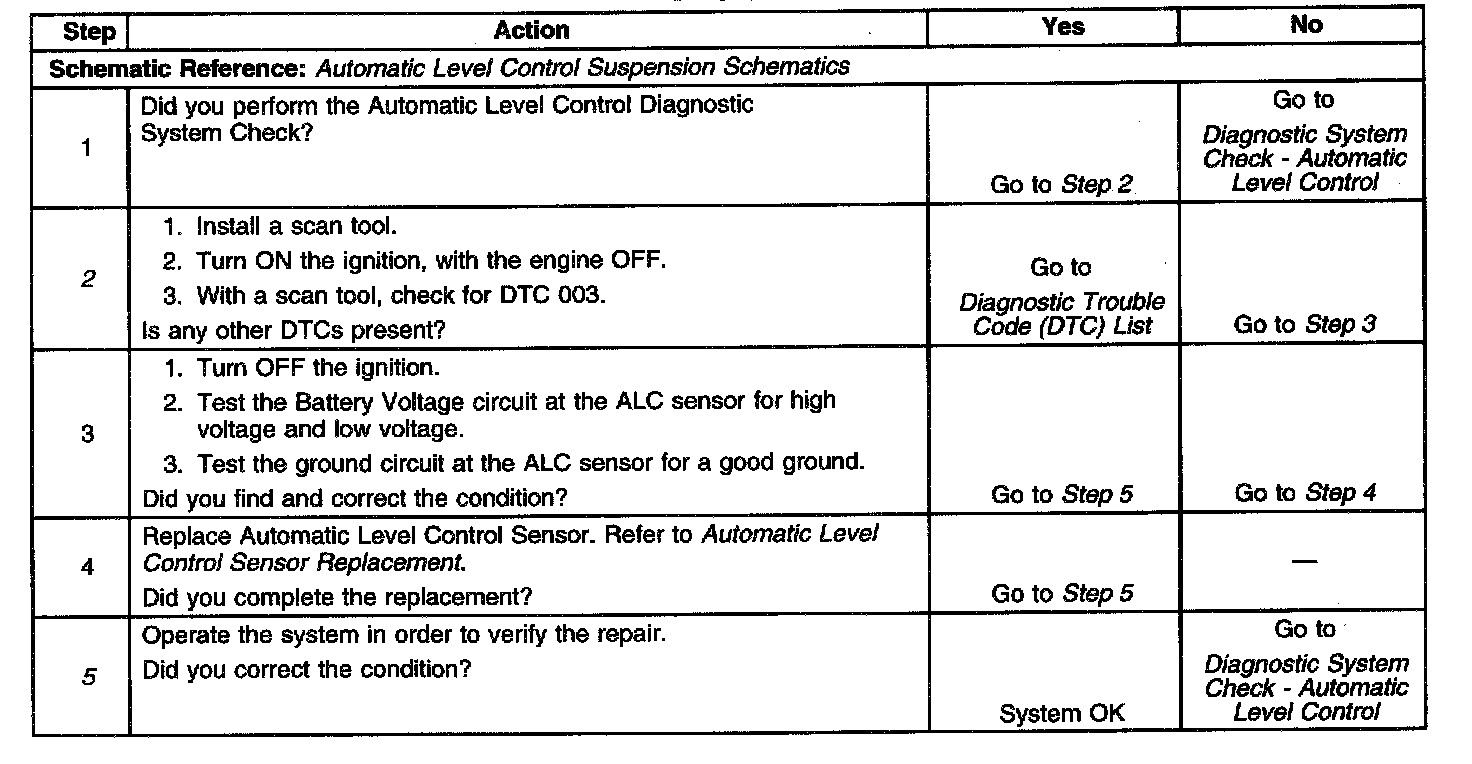

Test Description
The number(s) below refer to the step number(s) on the diagnostic table.
2. Tests for all DTCs that are present.
5. Tests for the proper operation of the system.
