DTC 053

CIRCUIT DESCRIPTION

SIR Schematics: Power, Ground, Serial Data, Indicator and Front Inflatable Restraint Modules:

SIR Schematics: Seat Belt Pretensioners, Side Inflatable Restraint Modules, and Sensors:

When the ignition is turned ON, the Inflatable Restraint Sensing And Diagnostic (SDM) performs continuous diagnostic tests to check for proper circuit continuity and for shorts to ground or voltage. During one portion of these tests, the SDM checks to ensure that it is properly configured for this vehicle. If a malfunction is detected, the SDM will store a Diagnostic Trouble Code (DTC).

CONDITIONS FOR RUNNING THE DTC
Ignition 1 voltage is within the normal operating voltage range.

CONDITIONS FOR SETTING THE DTC
The SDM is not properly configured for this vehicle.

ACTION TAKEN WHEN THE DTC SETS
The SDM turns the AIR BAG indicator ON.

CONDITIONS FOR CLEARING THE DTC
You can use the scan tool to properly configure the SDM. Once the SDM is properly configured, the DTC will clear.

DIAGNOSTIC AIDS
DTC 53 indicates that the SDM is not configured for use in this vehicle.

TEST DESCRIPTION

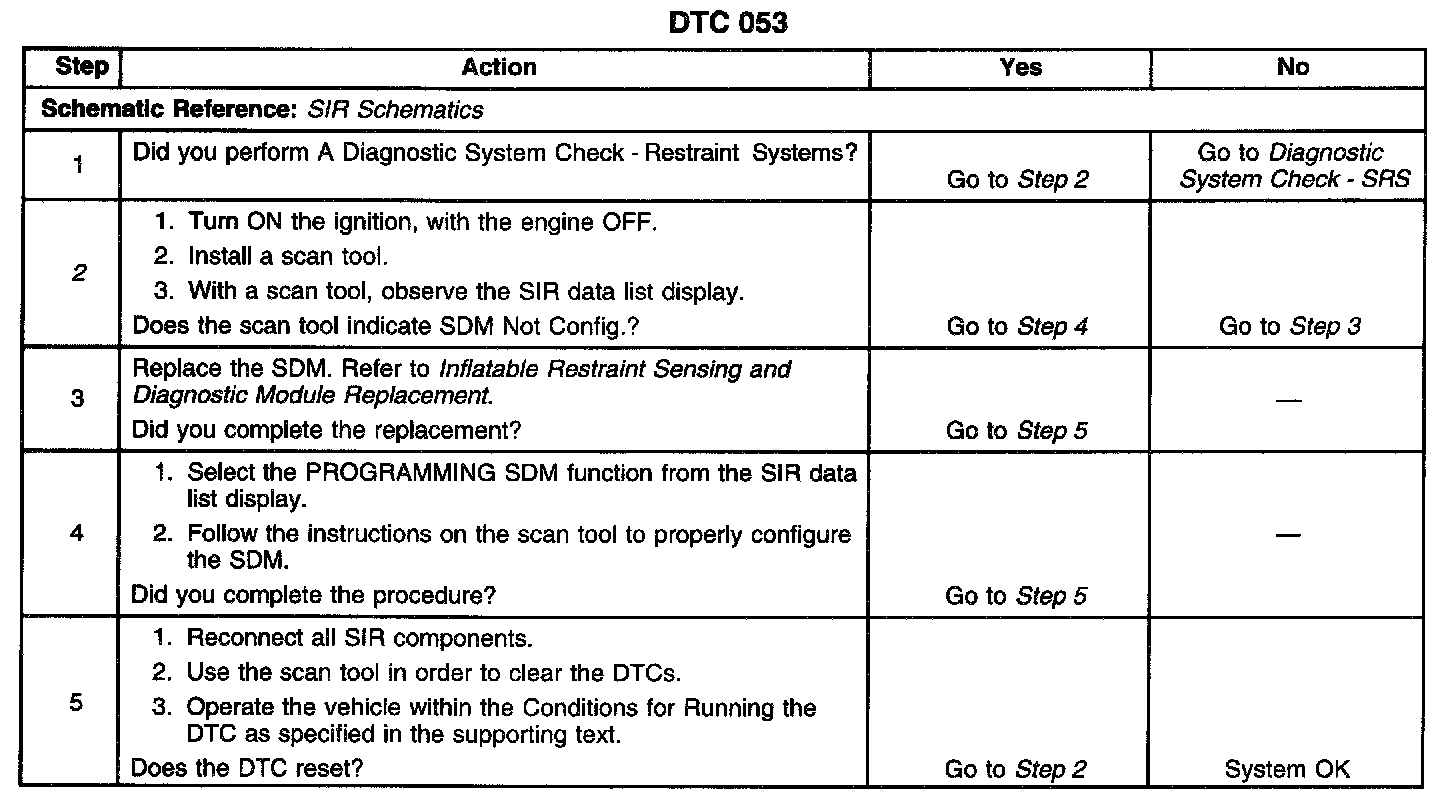

Steps 1-5:

The numbers below refer to step numbers on the diagnostic table.
2. Tests to see if the SDM is properly configured.
