Pass Through Access Door Replacement

Pass Through Access Door Replacement

Removal Procedure

1. Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement (Rear Seat Cushion Replacement).

Important: Both rear seat back cushions will have to be removed from vehicle to prevent damage.


2. Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Replacement (Rear Seat Back Cushion Replacement).
3. Remove the rear seat back inner hinges. Refer to Rear Seat Back Cushion Inner Hinge Replacement (Rear Seat Back Cushion Inner Hinge Replacement).

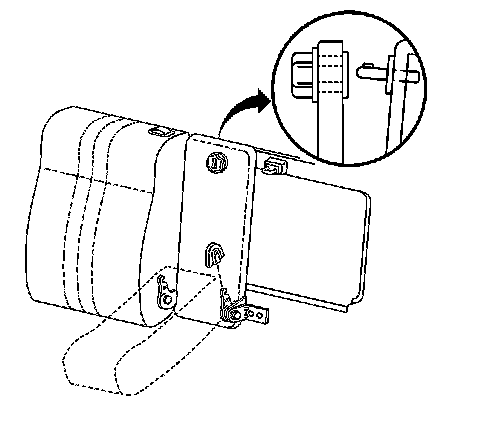

4. Remove the rear compartment access door from vehicle.
5. Transfer the cover and the knob.

Installation Procedure




1. Install the rear compartment access door to vehicle.
2. Install the rear seat back inner hinges. Refer to Rear Seat Back Cushion Inner Hinge Replacement (Rear Seat Back Cushion Inner Hinge Replacement).
3. Install the rear seat back cushion. Refer to Rear Seat Back Cushion Replacement (Rear Seat Back Cushion Replacement). Install both rear seat back cushions to the vehicle.
4. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement (Rear Seat Cushion Replacement).
