Antilock Brakes / Traction Control Systems
>>
Vehicle Speed Signal And CAN Interface
Vehicle Speed Signal And CAN Interface

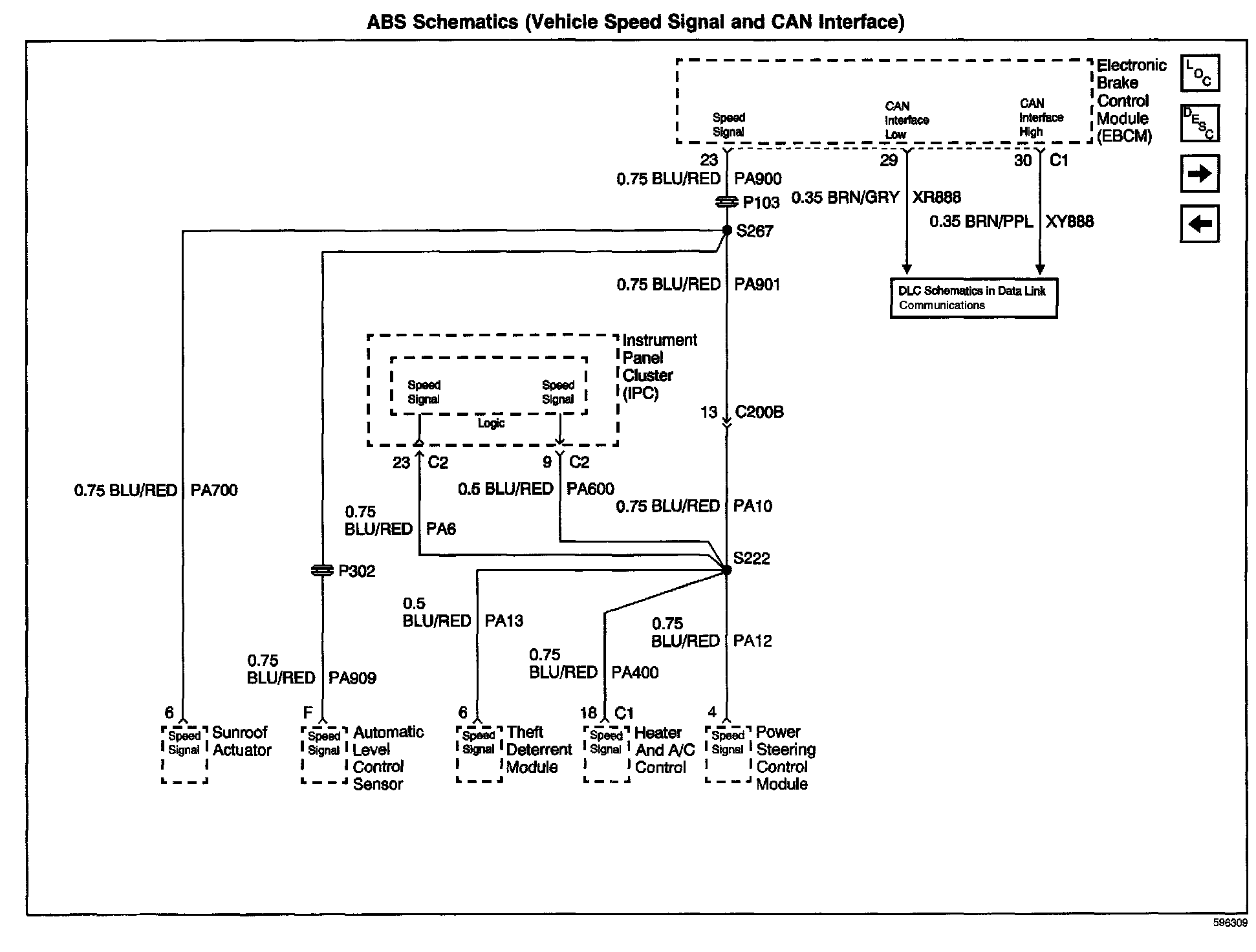

ABS Schematics: Vehicle Speed Signal And CAN Interface:
