Tachometer Inaccurate or Inoperative

TEST DESCRIPTION

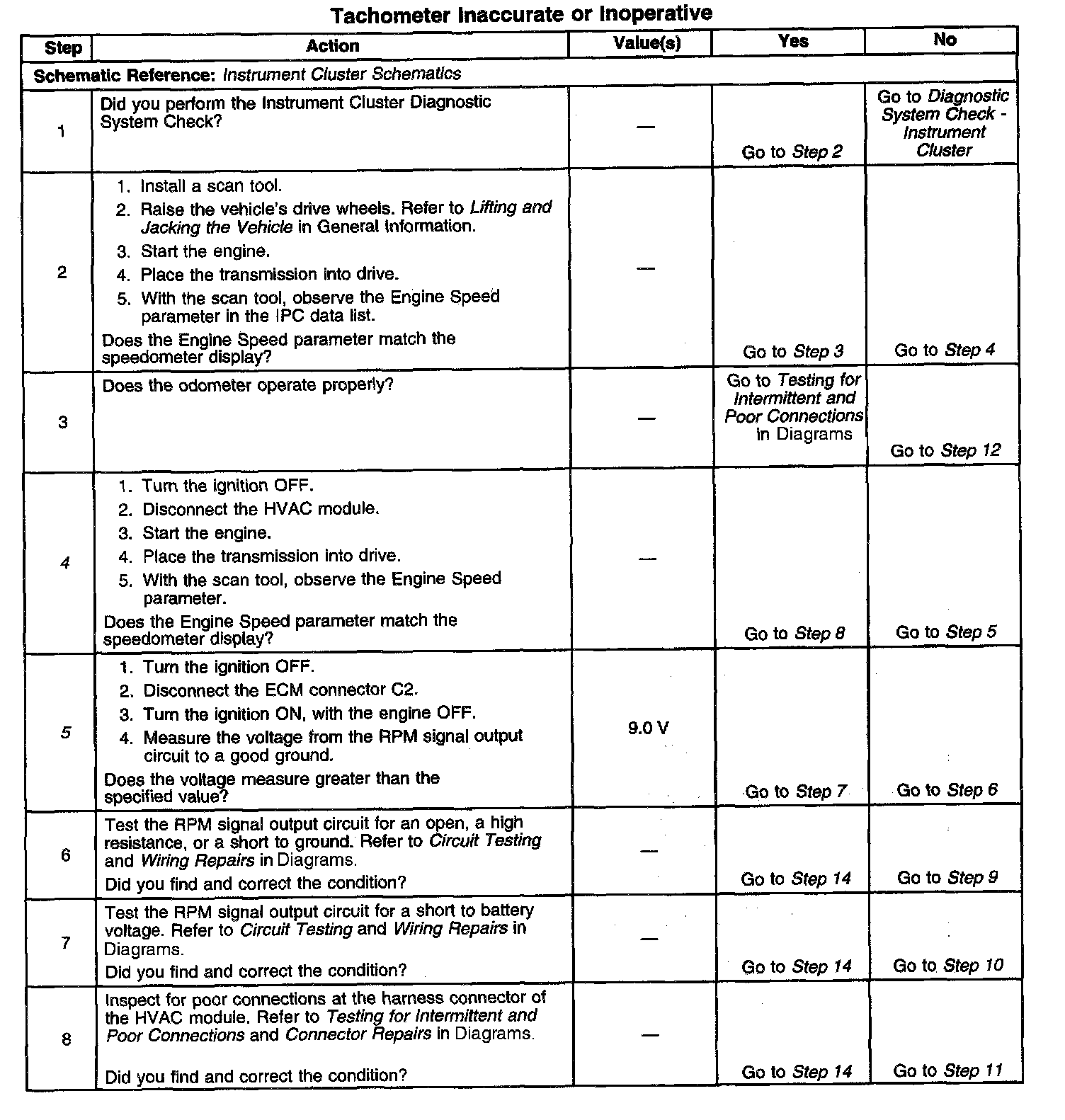

Steps 1-8:

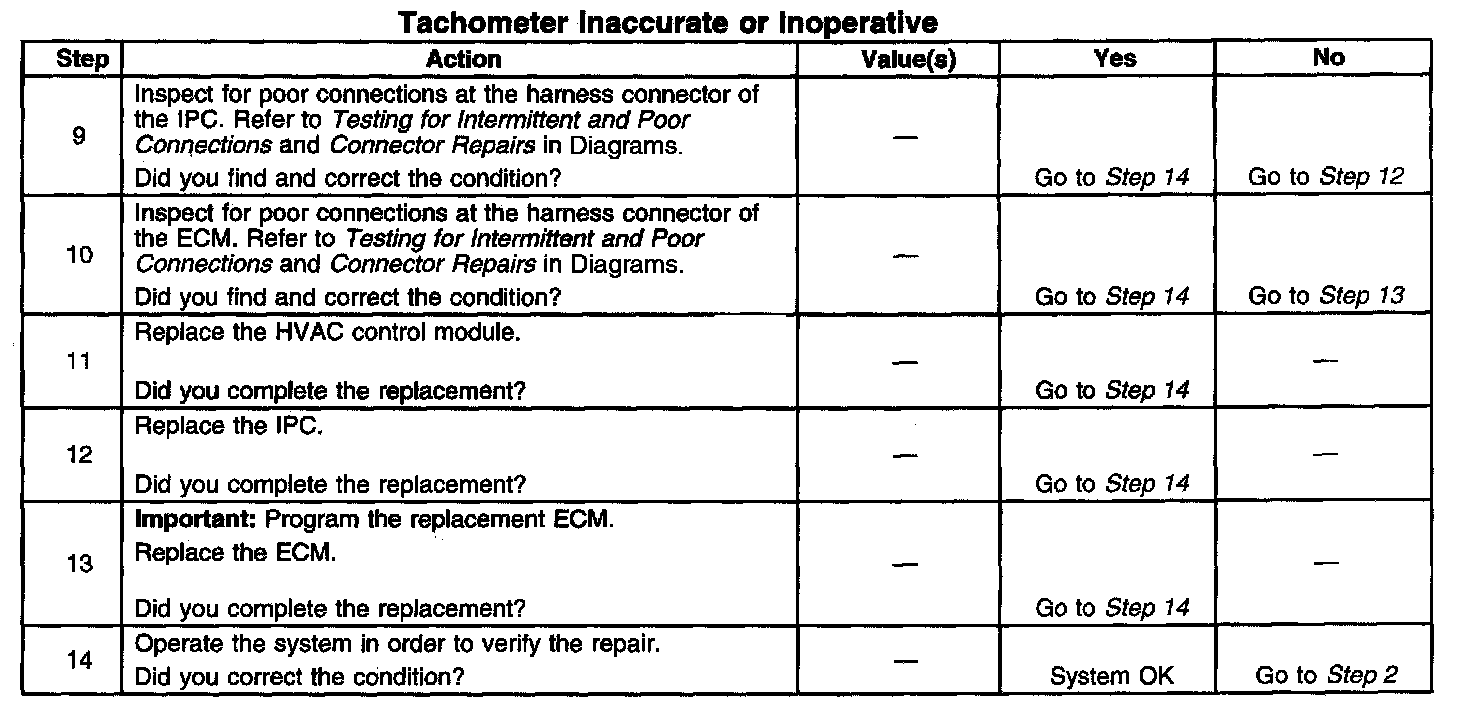

Steps 9-14:

The number(s) below refer to the step number(s) on the diagnostic table.
4. This step tests for a malfunctioning component that is interrupting the RPM signal output circuit.
5. This step tests for the proper voltage from the IPC.
