Cadillac
>>
2006
>>
STS AWD V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
After-Run Coolant Pump
After-Run Coolant Pump

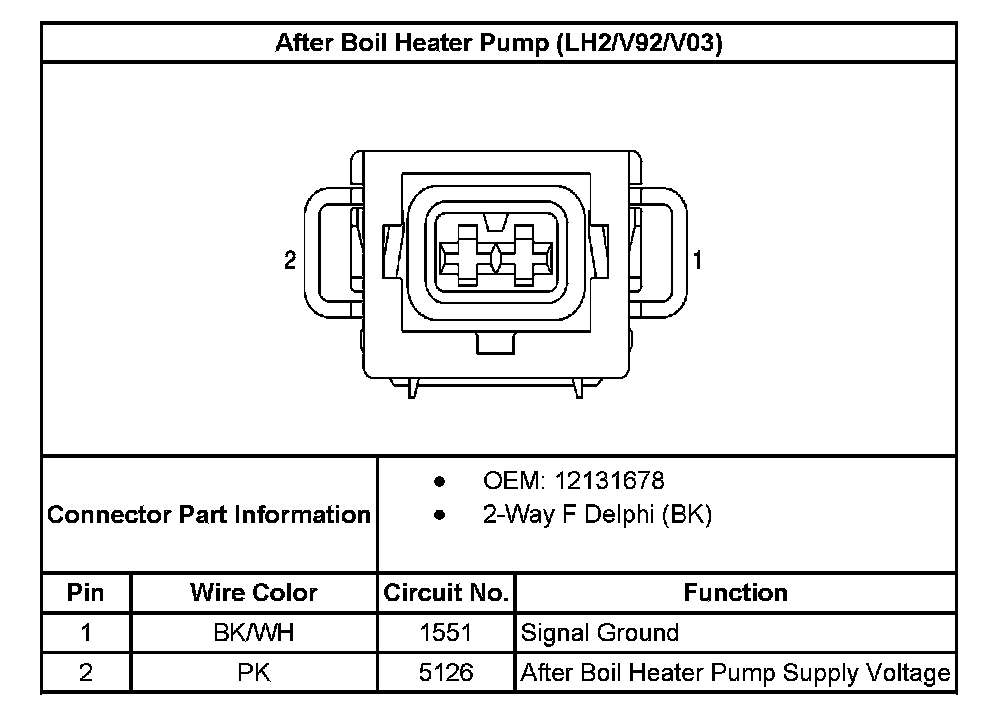

After Boil Heater Pump (LH2/V92/V03):
