Engine Coolant Temperature (ECT) Sensor

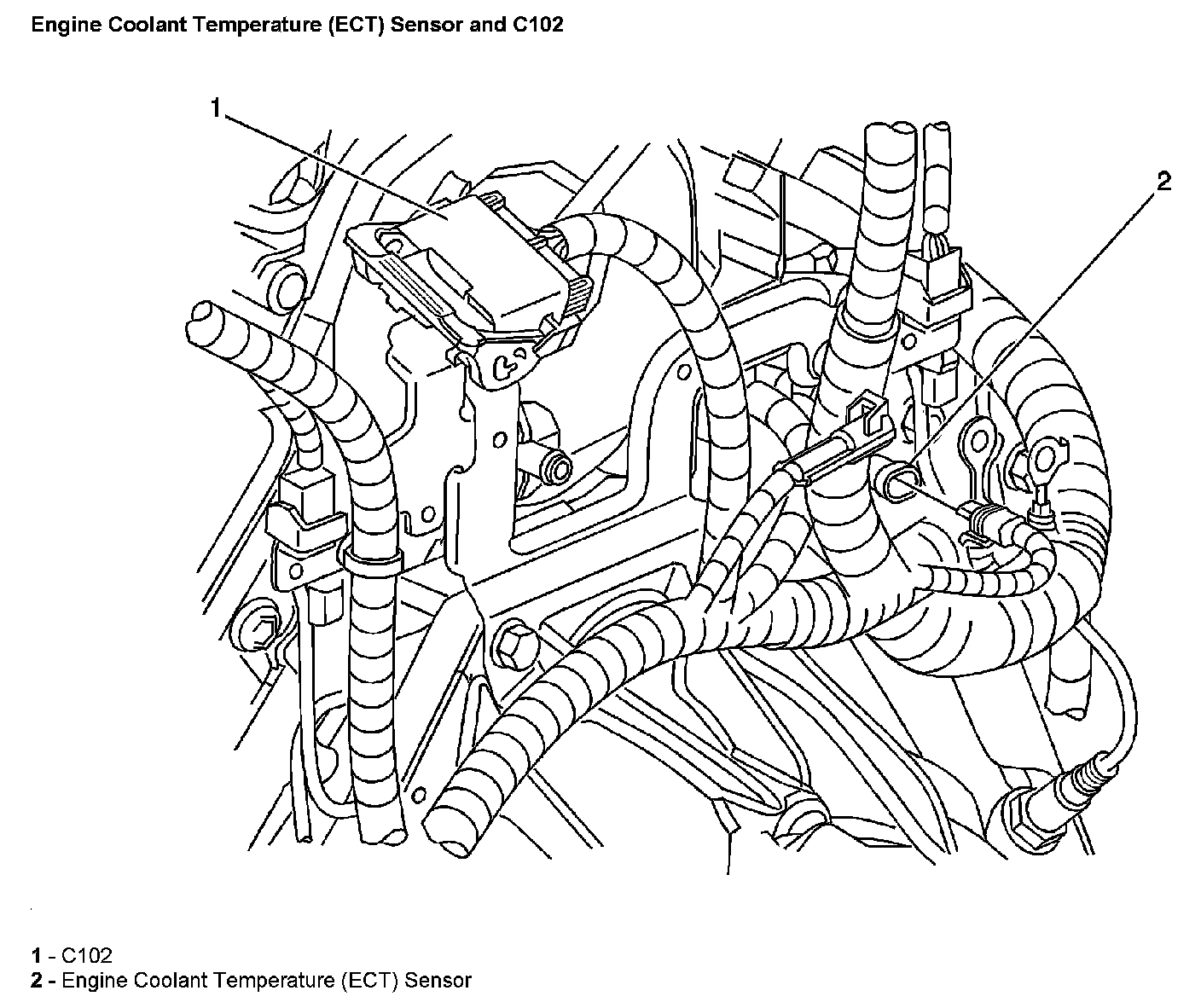

Engine Coolant Temperature (ECT) Sensor And C102:



Lower Left Side Of Engine:
